The Morse potential is given by the following expression: V (x) = ED · (1 −...
The Morse potential is given by the following expression: V (x) = ED · (1 − e -ax)2

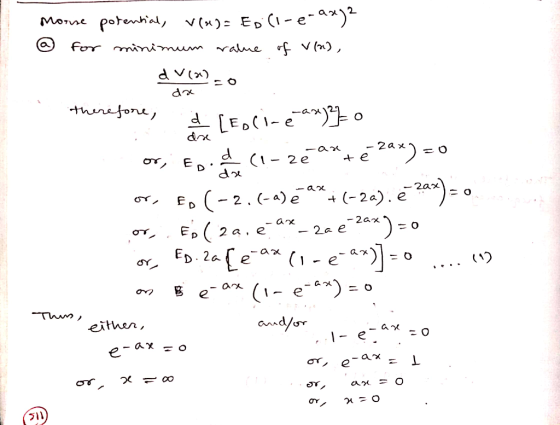

a.) At what value for x is V(x) a minimum? (First derivative might be helpful.)

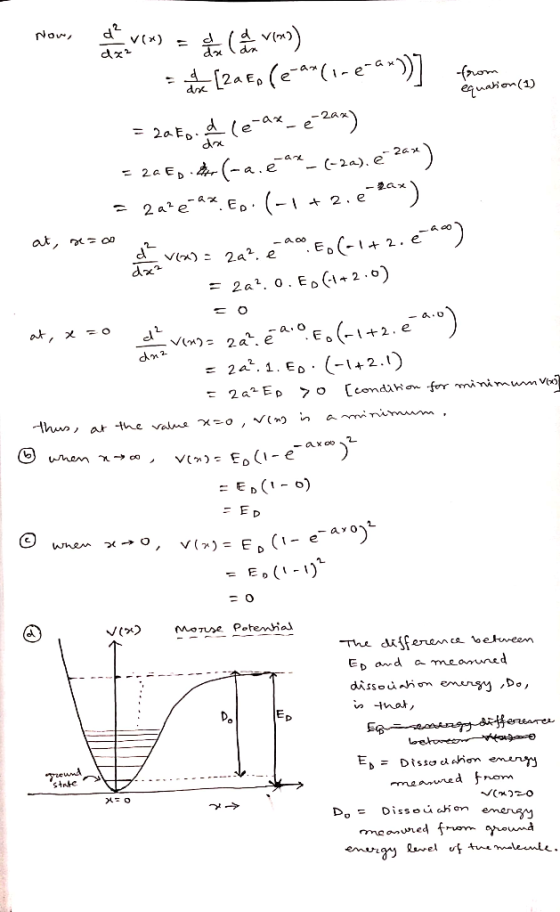

b.) What is V(x) when x → ∞ ?
c.) What is V(x) when x → 0 ?
d.) What is the difference between ED and a measured dissociation energy
