Can someone draw out what is happening in this problem? I don't understand this problem visually....

Can someone draw out what is happening in this problem? I don't understand this problem visually. Will give a thumbs up.

Light of wavelength 500 nm illuminates a double slit, and the interference pattern is observed on a screen. At the position of the m=2 bright fringe, how much farther is it to the more distant slit than to the nearer slit?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

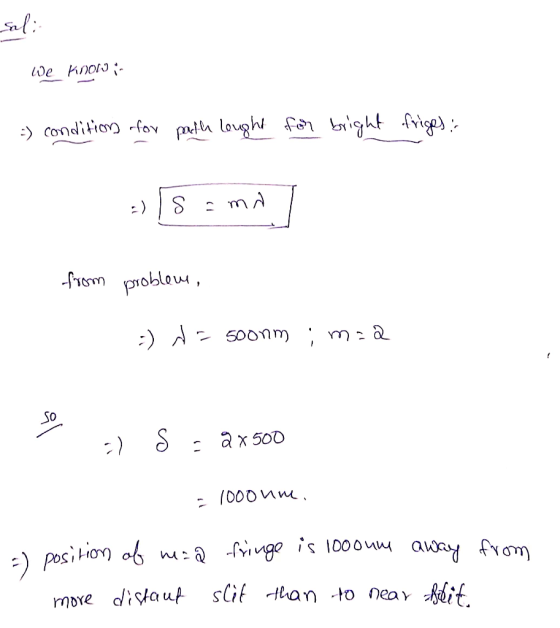

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Can someone draw out what is happening in this problem? I don't understand this problem visually....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Problem 22.3 Constants I Periodic Table Light of wavelength 520 nm illuminates a double slit, and...

    Problem 22.3 Constants I Periodic Table Light of wavelength 520 nm illuminates a double slit, and the interference pattern is observed on a screen. ▼ Part A At the position of the m-2 bright fringe, how much farther is it to the more distant slit than to the nearer slit? Express your answer to three significant figures and include the appropriate units. cm SubmitP Incorrect; Try Again: 4 attempts remaining

  • Light of wavelength 500 nm is used in a two slit interference experiment, and a fringe...

    Light of wavelength 500 nm is used in a two slit interference experiment, and a fringe pattern is observed on a screen. When light of wavelength 650 nm is used a) the position of the second bright fringe is larger b) the position of the second bright fringe is smaller c) the position of the second bright fringe does not change

  • 1. A single slit forms a diffraction pattern, with the second minimum at an angle of...

    1. A single slit forms a diffraction pattern, with the second minimum at an angle of 40.0° from central maximum, when monochromatic light of wavelength 630 nm is used. What is the width of the single slit? 2. Consider a two-slit experiment in which the slit separation is 3.0 × 10-5 m and the interference pattern is observed on a screen that is 2.00 m away from the slits. The wavelength of light passing through the slits is 420 nm....

  • 1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of...

    1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102 mm is illuminated by light having a wavelength of 576 nm and the interference pattern observed on a screen 3.50 m from the slits. What is the difference in path lengths from the two slits to the location of a third order bright fringe on the screen? 1(B) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102...

  • D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the...

    PLEASE ANSWER 3 AND 5 SHOW ALL ALGEBRA STEPS D) More information needed. 3. Monochromatic light falling on two slits 0.5 mm apart produces the second order fringe at 0.15 angle. The interference pattern from the slits is projected onto a screen that is 3.00 m away (a) What is the wavelength of the light used (in nm)? (b) What is the separation distance (in mm) on the screen of the second bright fringe from the central bright fringe? (c)...

  • In a Young's Double Slit experiment, the slit separation d is 0.12 mm. When red light...

    In a Young's Double Slit experiment, the slit separation d is 0.12 mm. When red light of wavelength 666 nm is used, the resulting interference pattern appears on a distant screen, with the third order bright fringe located at a distance y of 45 mm as measured from the central bright fringe. Calculate the distance (in m) between the slits and the screen. Please quote your answer to two decimal places. The answer is 2.70m, show your work.

  • In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a...

    In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 697 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.67 m and the distance between the two slits is 0.104 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...

  • In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...

    In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...

  • Worksheet 1. The figure shows the viewing screen in a double-slit experiment. Fringe C is the cen...

    Worksheet 1. The figure shows the viewing screen in a double-slit experiment. Fringe C is the central maximum. For questions a-c, will the fringe spacing increase, decrease, or stay the same? Give an explanation for each A B CD E a. The distance to the screen is increased b. The spacing between the slits is increased c. The wavelength of the light is increased d. Suppose the wavelength of the light is 500nm. How much farther is it from the...

  • Please complete the visual portion as well Problem Statement Light of wavelength 519 nm passes through...

    Please complete the visual portion as well Problem Statement Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen 4.6 m away, adjacent bright fringes are separated by 5.2 mm in the general vicinity of the center of the pattern What is the separation of the two slits? Visual Representation • Draw the slits • Draw the screen a distance from the slits Draw the paths from each slit Mark the bright locations on...
