The plates of the capacitor have an area of 1.24x 10-4 m2 . They are separated...

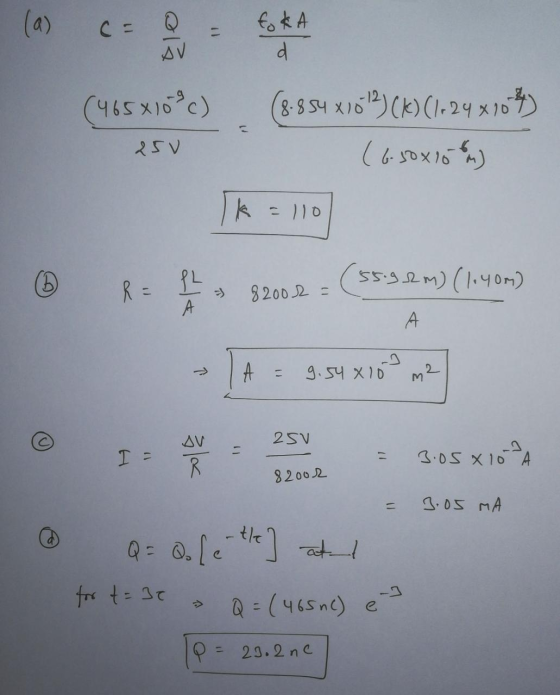

The plates of the capacitor have an area of 1.24x 10-4 m2 . They are separated by a distance of 6.50 µm by a material with a dielectric constant. A 25 V battery is used to begin charging. After a long time, the capacitor is fully charged to 465 nC. a) What is the dielectric constant of the material? An 8200 Ω resistor is made of a material with a resistivity of 55.9 Ω m, and a length of 1.40 m. b) What is the cross-sectional area of the resistor? The charged capacitor from part a) is disconnected from the battery and placed in series with the resistor from part b), creating an RC circuit, allowing the capacitor to discharge. c) What is the initial current in the circuit when the capacitor first starts discharging? d) How much charge is left on the capacitor after 3 time constants have elapsed?
Homework Answers
Add Answer to:
The plates of the capacitor have an area of 1.24x 10-4 m2 . They
are separated...
A parallel-plate vacuum capacitor is connected to a batteryand charged until the stored electric energy is...
A parallel-plate vacuum capacitor is connected to a battery and charged until the stored electric energy is U. The
battery is removed, and then a dielectric material with dielectric
constant K is inserted
into the capacitor, filling the space between the plates. Finally,
the capacitor is fully discharged through a resistor (which is
connected across the capacitor terminals).A.)Find Ur, the
the energy dissipated in the resistor.Express your answer in terms
of U and other
given quantities.B.) Consider the same situation...
1. Consider an air-filled parallel plate capacitor with plate area A = 37.4 cm2 and gap...
1. Consider an air-filled parallel plate capacitor with plate area A = 37.4 cm2 and gap width d = 0.7 mm. A. What is its capacitance? B. The capacitor was connected to a 40-V battery, and disconnected after charging. What is the charge Q drawn from the battery? The gap of the capacitor described in Problem #1 is now filled by the material with the dielectric constant of 4.2. C. What is its capacitance? D. The capacitor was connected to...
1. Consider an air-filled parallel plate capacitor with plate area A = 37.4 cm2 and gap...
1. Consider an air-filled parallel plate capacitor with plate area A = 37.4 cm2 and gap width d = 0.7 mm. A. What is its capacitance? B. The capacitor was connected to a 40-V battery, and disconnected after charging. What is the charge Q drawn from the battery? 2. The gap of the capacitor described in Problem #1 is now filled by the material with the dielectric constant of 4.2. A. What is its capacitance? B. The capacitor was connected...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and then disconnected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: decreases twice stays the same increases twice decreases 4 times increases 4 times
A parallel plate capacitor of capacitance Co has plates of area A with separation d between...
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has a charge of magnitude Qo on its plates. It is then disconnected from the battery and the space between the plates is filled with a material of dielectric constant 3. After the dielectric is added, the magnitudes of the charge on the plates and the potential difference between them are 15.
4. A dielectric-filled capacitor is directly connected to a 12.0-V battery until it is fully charged....
4. A dielectric-filled capacitor is directly connected to a 12.0-V battery until it is fully charged. Then the capacitor is disconnected from the battery and, once disconnected, the dielectrie is removed so that air fills the capacitor instead. The dielectric used is pyrex glass, whose dielectric constant is 5.6, while the dielectric constant of air is 1.0059. (a) Determine the voltage across the capacitor plates after the dielectric is removed. (b) With the dielectric removed, the capacitor is discharged by...
The plates of a parallel-plate capacitor each have an area of 0.1 m2 and are separated...
The plates of a parallel-plate capacitor each have an area of 0.1 m2 and are separated by a 1 mm thick layer of glass. The capacitor is connected to a 11 V battery. (The dielectric constant for glass is 5.) a) Find the capacitance. b) Find the charge stored. c) Find the electric field between the plates.
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500 resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d....
NO QUESTIONS DURING THE EXAM! e capacitor with square plates of area A 4.00 x 10-2...
NO QUESTIONS DURING THE EXAM! e capacitor with square plates of area A 4.00 x 10-2 m2 and h a dielectric having 3. It is fully charged to a voltage of 100 V and the (35 points) A parallel plate separation with charging battery is then disconnected. Take o a) the capacitance C b) the charge in the capacitor Q. c) the magnitude of the electric field E between the plates. d) After the battery has been disconnect 8.85 10...
An air-filled capacitor is made from two flat parallel plates 1.4 mm apart. The inside area...
An air-filled capacitor is made from two flat parallel plates 1.4 mm apart. The inside area of each plate is 8.8 cm2. a) What is the capacitance of this set of plates (in pF) b) If the region between the plates is filled with a material whose dielectric constant is 6.6, what is the new capacitance (in pF)? 2) A parallel-plate capacitor with only air between its plates is charged by connecting the capacitor to a battery. The capacitor is...
A parallel-plate vacuum capacitor is connected to a battery and charged until the stored electric energy is U. The
battery is removed, and then a dielectric material with dielectric
constant K is inserted
into the capacitor, filling the space between the plates. Finally,
the capacitor is fully discharged through a resistor (which is
connected across the capacitor terminals).A.)Find Ur, the
the energy dissipated in the resistor.Express your answer in terms
of U and other
given quantities.B.) Consider the same situation...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and then disconnected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: decreases twice stays the same increases twice decreases 4 times increases 4 times
A parallel plate capacitor of capacitance Co has plates of area A with separation d between them. When it is connected to a battery of voltage Vo, it has a charge of magnitude Qo on its plates. It is then disconnected from the battery and the space between the plates is filled with a material of dielectric constant 3. After the dielectric is added, the magnitudes of the charge on the plates and the potential difference between them are 15.
4. A dielectric-filled capacitor is directly connected to a 12.0-V battery until it is fully charged. Then the capacitor is disconnected from the battery and, once disconnected, the dielectrie is removed so that air fills the capacitor instead. The dielectric used is pyrex glass, whose dielectric constant is 5.6, while the dielectric constant of air is 1.0059. (a) Determine the voltage across the capacitor plates after the dielectric is removed. (b) With the dielectric removed, the capacitor is discharged by...
NO QUESTIONS DURING THE EXAM! e capacitor with square plates of area A 4.00 x 10-2 m2 and h a dielectric having 3. It is fully charged to a voltage of 100 V and the (35 points) A parallel plate separation with charging battery is then disconnected. Take o a) the capacitance C b) the charge in the capacitor Q. c) the magnitude of the electric field E between the plates. d) After the battery has been disconnect 8.85 10...
