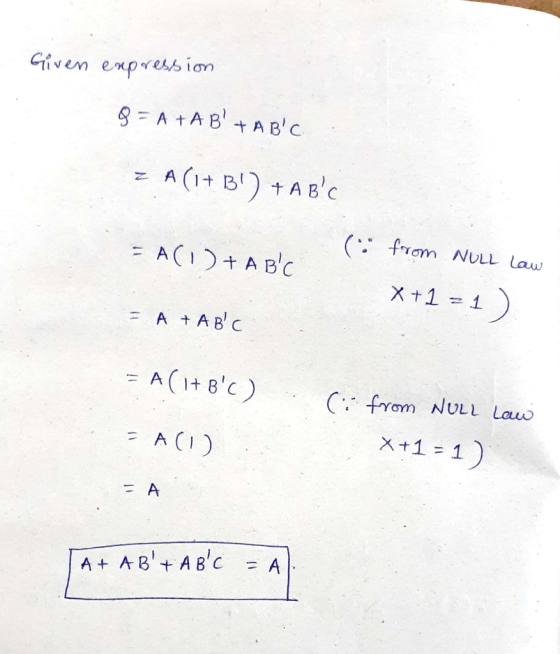

Use Boolean algebra to reduce the number of terms in the expression: Q = A + AB’ + AB’C

Show all your working. Use one law for each step, and give the name of the law used in each step.

engineering Electrical-Engineering

Answer 1

Answer #1

please like

Answer 2

Similar Homework Help Questions

Use the properties of Boolean Algebra to reduce the following Boolean expression to the simplest form...

Use the properties of Boolean Algebra to reduce the following Boolean expression to the simplest form possible B’A+(B’+A)B
Use boolean algebra to reduce; qm+q!p+q!m+!q!m+!mp

Use boolean algebra to reduce; qm+q!p+q!m+!q!m+!mp
Reduce the following equation using Boolean algebra and show all of your steps. Q = A'B'C'D'...

Reduce the following equation using Boolean algebra and show all of your steps. Q = A'B'C'D' + A'B'C'D + A'B'CD' + AB'C'D' + AB'C'D + AB'CD' + AB'CD

Reduce the following equation using Boolean algebra and show all of your steps. Q = A'B'C'D'...

Reduce the following equation using Boolean algebra and show all of your steps. Q = A'B'C'D' + A'B'C'D + A'B'CD' + AB'C'D' + AB'C'D+AB'CD' + AB'CD
Boolean algebra serves to relate logical quantities. The Boolean expression for the OR operation is C...

Boolean algebra serves to relate logical quantities. The Boolean expression for the OR operation is C = A + B. Look up and write the Boolean expression for the AND operation. Write the truth table of the three-input operation D = A + (BC). Using truth tables, show that NOT(A + B) = (NOT(A))(NOT(B)) and similarly that NOT(AB) = ?
Use Boolean algebra to simplify the following expression. Then draw a CMOS AOI schematic. Use minimum...

Use Boolean algebra to simplify the following expression. Then draw a CMOS AOI schematic. Use minimum number of transistors. G = (O(LD)')' Please show detailed steps with explanations Also, show work neatly.

Reduce the following expression using boolean algebra: abc'+bc'd'+a'bd+c'd into the form b+c'd

Reduce the following expression using boolean algebra: abc'+bc'd'+a'bd+c'd into the form b+c'd
Homework 1.pdf 2/2 Problem 7: Use Boolean algebra manipulation to prove the validity of the following...

Homework 1.pdf 2/2 Problem 7: Use Boolean algebra manipulation to prove the validity of the following expression. Mention the axiom /theorem/property # and/or name used at each step of manipulation. CA C)(AD +AD) +ACC AC
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show...

Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show your work and write the property you are applying). State if they cannot be simplified A. X’Y + XY B. (X + Y)(X + Y’) C. (A’ + B’) (A + B)’ D. ABC + A’B + A’BC’ E. XY + X(WZ + WZ’)

Simplify the following functional expression using Boolean algebra and its identities. List the identity used at...

Simplify the following functional expression using Boolean algebra and its identities. List the identity used at each step. x(y+z)(x'+z')
