5) A ball on a 1.4 m long string is being whirled in mid-air in a...

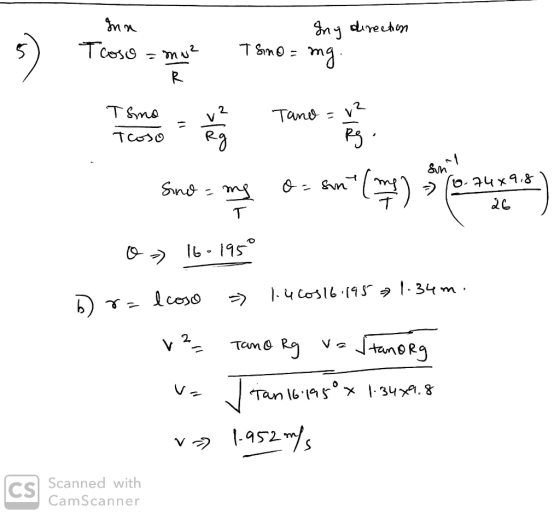

5) A ball on a 1.4 m long string is being whirled in mid-air in a horizontal circle at a constant speed. The tension in the string is 26 N and the mass of the ball is 0.74 kg.
a) What angle does the string make with the horizontal? (Also, why is the string not parallel to the ground?)
b) What is the speed of the ball? Be warned, the radius of the circular motion is not the length of the string!
6) A roller coaster car carrying a single person has a speed of 11.0 m/s at the top of a circular loop with a radius of 12.0 m. The combined mass of the car and person is 125 kg.
a) What is the normal force acting on the roller coaster car at the top of the loop?
b) What is the minimum speed that the roller coaster car can have at the top of the loop while still maintaining contact with the tracks of the roller coaster?
