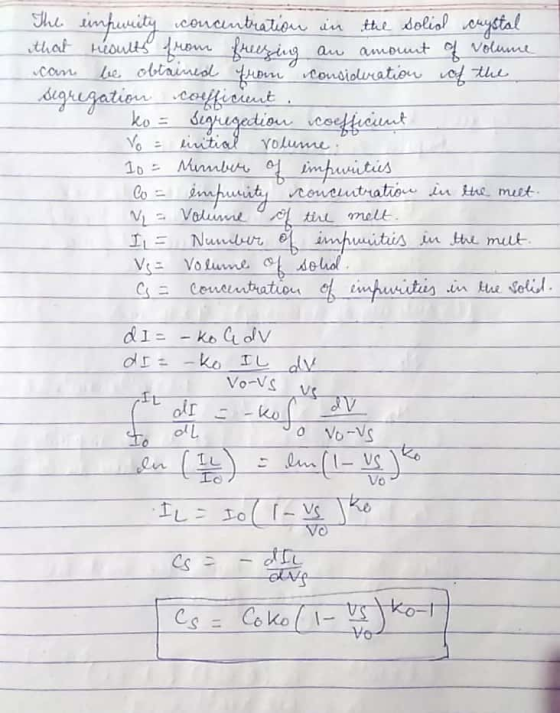

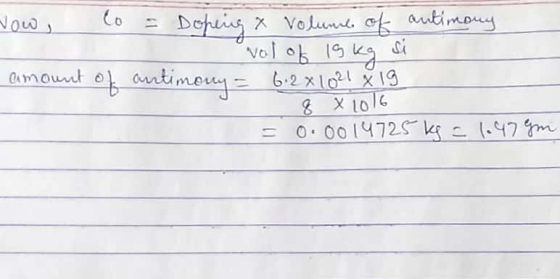

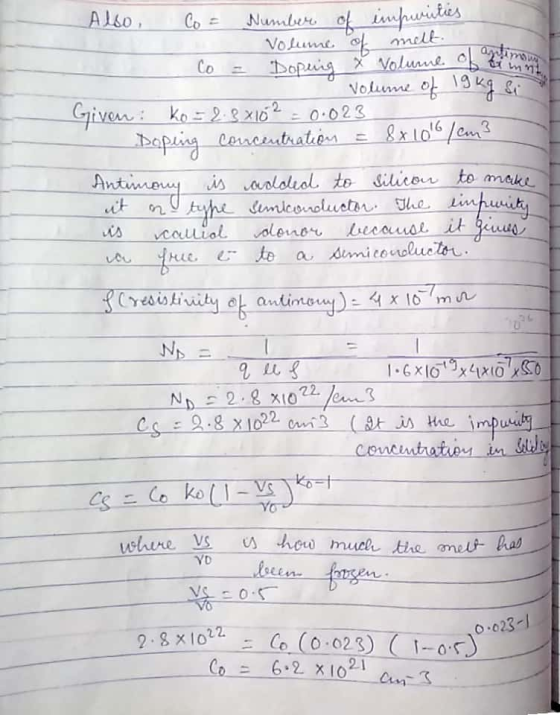

An antimony doped Czochralski crystal is grown with a doping concentration of 8 × 1016 cm-3...
A Czochralski crystal is grown with an initial antimony concentration in the melt of 1 x 1016 cm-3. After 75% of the melt has been used up in pulling the crystal, pure silicon is added to return the melt to its original volume. Growth is then resumed. What will the antimony concentration be in the crystal after 50% of the new melt has been consumed by growth? Assume ko = 0.02 for antimony.
Problem 2. Silicon is used to dope a crystal of InP to a doping concentration of 2.5x10^16/cm3. Assume that all the silicon atoms displace only P atoms in the InP crystal. This is an example of “amphoteric” doping. (a) Explain amphoteric doping, and why it is important I specify which type of atoms in an InP crystal is replaced by the Si atoms that are used for doping. (b) In this situation, state if the doped InP is n-type or...
A n-type silicon crystal has 10^16 cm-3 of doping impurities. At equilibrium and at room temperature (T = 300 K) what the electron and hole concentrations. Indicate which constitutes the majority carriers
6. A silicon wafer is doped with donor atoms, N-5x0 cm(bonus question) (a) Determine (Ec-EF), (EF-Ev), (Ep-E) at 300 K. Assume all the donor atoms are ionized. (b) Plot the position of Fermi level (EF) in the bandgap as a function of temperature for 300 Ts700 K. In this temperature range, it can be assumed that all the donor atoms are ionized. (c) Plot the position of Fermi level (Er) in the bandgap as acceptor atoms are added (N.- 104,...
3. A silicon step junction has uniform impurity doping concentrations of N. 5 x 1015 cm-3 and Nd = 1 x 1015 cm-, and a cross-sectional area of A-|0-4 cm2. Let tao -0.4 s and tpo 0.1 us. Consider the geometry in Figure.Calculate (a) the ideal reverse saturation current due to holes, (b) the ideal reverse saturation current due to electrons, (c) the hole concentration at a, if V V and (d) the electron current at x = x" +...
For n-type silicon at room temperature, with a donor doping concentration of 10^(17) cm^(-3), approximately how much larger will be the electron concentration, compared to the hole concentration? Assuming ni=10^(10) cm^(-3).
Q1 (20%): The total electron concentration in a piece of lightly doped, n-type silicon at 500 varies linearly from 1X107 cm3 at x 0 to 6 x 10 cm at x 2 um. Electrons are supplied by an external circuit to keep this concentration constant with time. Calculate the electron current density in the silicon if no electric field is present at x 0. Assume H 1000 cm2/V-s. X-2um
Q1 (20%): The total electron concentration in a piece of lightly...
1. at what voltage the current density in a p-n diode
reaches a magnitude of 10 A/cm^2 ? the diode is made by doping with
boron are phosphorous with concentrations of 10^18 and 10^19 cm^-3,
respectively.
3. A MOSFET is made on silicon substrate doped with boron with a concentration of 10" cm. Width and length of channel are 100 and O.1 micron respectively. Thickness of the oxide insulator under the gate is 10 nm. Find transconductance of this transistor...
3. Silicon samples with band-gas 1.1 eV at 300 Kelvin, are doped at four different levels and have the properties listed below. Case 1: Case 2: Case 3: Case 4: Ex-Ey = 0.15 eV Ef-Ey=0.88 eV EF-Ey = 0.55 eV Ex-Ey = 1.09 eV The four cases above show the position of the Fermi Level Er relative to the valence band edge Ev.at dilterent doping levels. a) identify each sample as degenerate and nondegenerate. b) which nondegenerate case shows heavy...
Case Study (Read Carefully): Assume you have a typical piece of Silicon Wafer, it is doped by N-type carriers (electrons) and it operated at an elevated temperature. Assume, Na = 1e8 cm. We will use Short-hand (assumption) approach to calculate the n, p, and E--E; then use recalculate using first principal equation while making minimal assumptions. We want to know the range in which the Short-hand approach gives the same answer as the first principal approach. Part 1, Short-Hand Approach:...
