A 5.2 MΩ resistor, 1.2 MΩ resistor and 1 MΩ resistor are connected in parallel across...

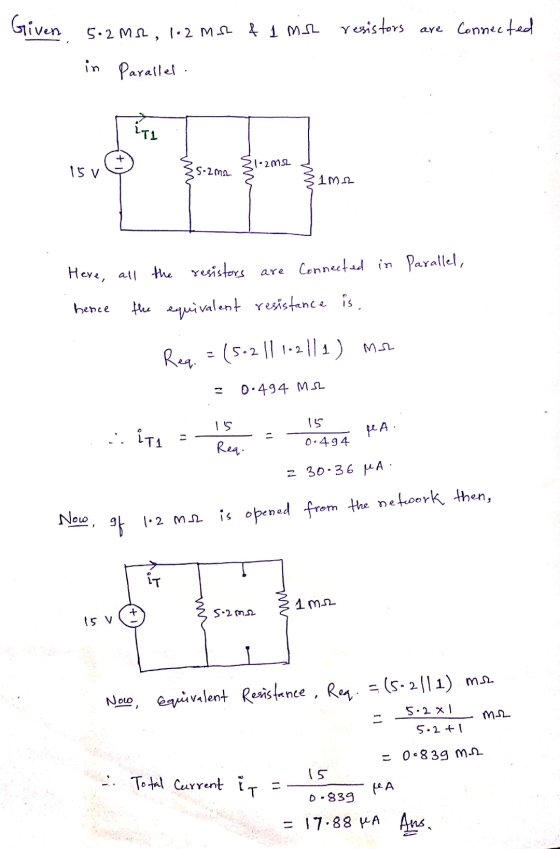

A 5.2 MΩ resistor, 1.2 MΩ resistor and 1 MΩ resistor are connected in parallel across a 15 V source. What is the total current if the 1.2 MΩ resistor opens?
Homework Answers
Add Answer to:
A 5.2 MΩ resistor, 1.2 MΩ resistor and 1 MΩ resistor are
