3) The first point object (M1) is positioned at (x,y) = (0,0) and it moved to...

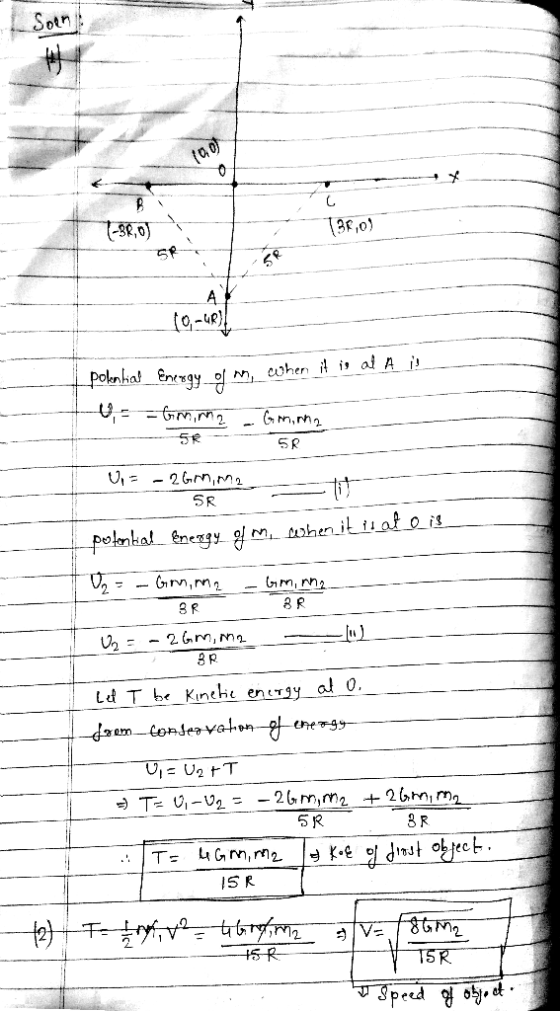

3) The first point object (M1) is positioned at (x,y) = (0,0) and it moved to (0, -4R). Then, the first object is released from rest and it travels back to (0,0). Second and third identical point objects (M2) are positioned at (-3R,0) and (3R,0), respectively. Determine expressions {G, M1, M2, R} for the following:
3.1) the kinetic energy of the first object when it returns to (0,0);
3.2) the speed of the first object when it returns to (0,0);
Homework Answers
Add Answer to:
3) The first point object (M1) is positioned at (x,y) = (0,0)
and it moved to...
1) A first point object (M1) is positioned at (x,y) = (0,0). Second and third identical...
1) A first point object (M1) is positioned at (x,y) = (0,0). Second and third identical point objects (M2) are positioned at (-3R,0) and (3R,0), respectively. Determine expressions {G, M1, M2, R} for the following: 1.1) the magnitude of the gravitational force applied by the 2nd and 3rd objects onto the 1st object; 1.2) the potential energy of the system 1.3) the work required to separate the three objects so as to make them infinitely far from each other.
1) A first point object (M1) is positioned at (x,y) = (0,0). Second and third identical...
1) A first point object (M1) is positioned at (x,y) = (0,0). Second and third identical point objects (M2) are positioned at (-3R,0) and (3R,0), respectively. Determine expressions {G, M1, M2, R} for the following: 1.1) the magnitude of the gravitational force applied by the 2nd and 3rd objects onto the 1st object; 1.2) the potential energy of the system 1.3) the work required to separate the three objects so as to make them infinitely far from each other.
1. Suppose an object is subjected to a force F that varies with position: where β 20N/m is a constant. a) The object begins at the origin (x,y) = (0,0) and travels to point P located at (z,y)-(1m,3m)...
1. Suppose an object is subjected to a force F that varies with position: where β 20N/m is a constant. a) The object begins at the origin (x,y) = (0,0) and travels to point P located at (z,y)-(1m,3m): 3m 4m Calculate the work done by F along each of the three possible paths shown in the figure above by the dashed lines. Note that there could be other forces acting on the object in order to ensure the object travels...
In the figure below, the hanging object has a mass of m1 -0.480 kg; the sliding block has a mass ...
In the figure below, the hanging object has a mass of m1 -0.480 kg; the sliding block has a mass of m2 0.820 kg; and the pulley is a hollow cylinder with a mass of M0.350 kg, an inner radius of R10.020 0 m, and an outer radius of R2 = 0.030 0 m. Assume the mass of the spokes is negligible. The coefficient of kinetic friction between the block and the horizontal surface is Hk0.250. The pulley turns without...
In the figure below, the hanging object has a mass of m1 -0.480 kg; the sliding...
In the figure below, the hanging object has a mass of m1 -0.480 kg; the sliding block has a mass of m2 0.820 kg; and the pulley is a hollow cylinder with a mass of M0.350 kg, an inner radius of R10.020 0 m, and an outer radius of R2 = 0.030 0 m. Assume the mass of the spokes is negligible. The coefficient of kinetic friction between the block and the horizontal surface is Hk0.250. The pulley turns without...
help 7. Three masses are located in the x-y plane as follows a m), a mass...
help
7. Three masses are located in the x-y plane as follows a m), a mass of 4 kg is located at G m, 0 m, and a mass of 2 kg is losatoul at o (0 m, 0 3 m). Where is the center of mass of the system A) (I m, 2 m) D) (1 m, 0.5 m) E) (0.5 m, 1 m) B) (2 m. 1 m) C)(m m roblem 8 -11, consider the following scenario. A...
mgh 3. In this question you will do some algebra to determine two relations that you...
mgh
3. In this question you will do some algebra to determine two relations that you will need for Part 2 of this lab. Write down Eq. 11 twice. In the first statement, set the rotational kinetic energy term equal to zero (i.e. 1/2lo 0) -call this your "No Krot model". Leave the second as it is written in Eq. 11 call this your "Krot model". For both models, solve for v in terms of g, h, and a. In...
All changes saved A Point of Release Equilibrium Position - Equilibrium- Position Point of A...
All changes saved A Point of Release Equilibrium Position - Equilibrium- Position Point of A sphere of mass mi, which is attached to a spring, is displaced downward from its equilibrium position as shown above left and released from rest. A sphere of mass m2, which is suspended from a string of length I, is displaced to the right as shown above right and released from rest so that it swings as a simple pendulum with small amplitude. Assume...
1. Power is a quantity Watts. 2. 1 hp is equal to 3. Energy is neither...
1. Power is a quantity Watts. 2. 1 hp is equal to 3. Energy is neither created nor destroyed, only determine the work done on an object, the angle 0, is measured between the Force and the 5. The SI units for Power are 6. Another name for the unit of Work, which is a N m, is called 7. Work done on an object slowing down is 8. Yo u push a lawn mower 6 times as far as...
Q1 A small object with a momentum of magnitude 2.71 kg m/s approaches head-on a large...
Q1 A small object with a momentum of magnitude 2.71 kg m/s approaches head-on a large object at rest. The small object bounces straight back with a momentum of magnitude 6.19 kg m/s. What is the magnitude of the small object's momentum change in kg m/s? Q2 A force acts on a 4.708 kg mass as follows: the force starts at zero and rises to 60.334 N linearly in 2.24 seconds, it remains at 60.334 N for another 5.756 seconds,...
1. Suppose an object is subjected to a force F that varies with position: where β 20N/m is a constant. a) The object begins at the origin (x,y) = (0,0) and travels to point P located at (z,y)-(1m,3m): 3m 4m Calculate the work done by F along each of the three possible paths shown in the figure above by the dashed lines. Note that there could be other forces acting on the object in order to ensure the object travels...
In the figure below, the hanging object has a mass of m1 -0.480 kg; the sliding block has a mass of m2 0.820 kg; and the pulley is a hollow cylinder with a mass of M0.350 kg, an inner radius of R10.020 0 m, and an outer radius of R2 = 0.030 0 m. Assume the mass of the spokes is negligible. The coefficient of kinetic friction between the block and the horizontal surface is Hk0.250. The pulley turns without...
In the figure below, the hanging object has a mass of m1 -0.480 kg; the sliding block has a mass of m2 0.820 kg; and the pulley is a hollow cylinder with a mass of M0.350 kg, an inner radius of R10.020 0 m, and an outer radius of R2 = 0.030 0 m. Assume the mass of the spokes is negligible. The coefficient of kinetic friction between the block and the horizontal surface is Hk0.250. The pulley turns without...
help
7. Three masses are located in the x-y plane as follows a m), a mass of 4 kg is located at G m, 0 m, and a mass of 2 kg is losatoul at o (0 m, 0 3 m). Where is the center of mass of the system A) (I m, 2 m) D) (1 m, 0.5 m) E) (0.5 m, 1 m) B) (2 m. 1 m) C)(m m roblem 8 -11, consider the following scenario. A...
mgh
3. In this question you will do some algebra to determine two relations that you will need for Part 2 of this lab. Write down Eq. 11 twice. In the first statement, set the rotational kinetic energy term equal to zero (i.e. 1/2lo 0) -call this your "No Krot model". Leave the second as it is written in Eq. 11 call this your "Krot model". For both models, solve for v in terms of g, h, and a. In...
All changes saved A Point of Release Equilibrium Position - Equilibrium- Position Point of A sphere of mass mi, which is attached to a spring, is displaced downward from its equilibrium position as shown above left and released from rest. A sphere of mass m2, which is suspended from a string of length I, is displaced to the right as shown above right and released from rest so that it swings as a simple pendulum with small amplitude. Assume...
1. Power is a quantity Watts. 2. 1 hp is equal to 3. Energy is neither created nor destroyed, only determine the work done on an object, the angle 0, is measured between the Force and the 5. The SI units for Power are 6. Another name for the unit of Work, which is a N m, is called 7. Work done on an object slowing down is 8. Yo u push a lawn mower 6 times as far as...
