An arrangement of 3 charges is drawn showing the field lines. The first charge has 20...
An arrangement of 3 charges is drawn showing the field lines. The first charge has 20 lines going into it. The second charge has 30 lines going out of it. If the net charge of the arrangement is zero, what is the field line situation for the third charge?

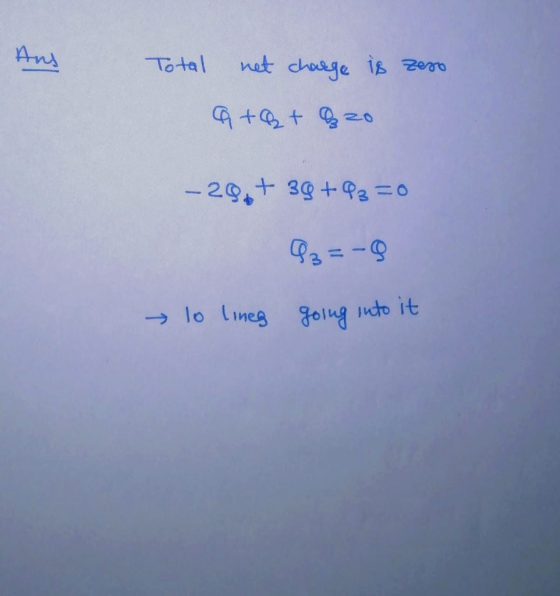

Homework Answers
Add Answer to:
An arrangement
of 3 charges is drawn showing the field lines. The first charge has
20...
7. Three charges are arranged in a straight line. The first charge has a charge of...
7. Three charges are arranged in a straight line. The first charge has a charge of 9.0 microcoulombs, the middle charge has a charge of -12.0 microcoulombs and is 45 cm from the first charge, and the third charge has a charge of 15.0 microcoulombs and is 15 cm from the middle charge (opposite side from the first charge). First, draw a picture of the charges (similar to figure 16-19) with an x-axis. Calculate the net force acting on the...
1. Electric field lines are drawn (a) from positive charges to negative charges (b) from negative...
1. Electric field lines are drawn (a) from positive charges to negative charges (b) from negative charges to positive charges (c) from the largest charge to the smallest charge (d) from the smallest charge to the largest charge. 5. For this laboratory why are the measured equipotentials lines instead of surt aces?
1.4. DRAWING FIELD LINES 3 1.4 Drawing Field Lines 1. Sketch electric field lines for the...
1.4. DRAWING FIELD LINES 3 1.4 Drawing Field Lines 1. Sketch electric field lines for the following four situations: a single positive charge; two positive charges separated by a distance d; a negative and a positive charge separated by a distance di and two negative charges separated by a distance d. For each sketch, assume that all of the charges have the at least 8 equally space field lines same magnitude and use exiting from each charge. Use the circles...
For each arrangement of point charges, neatly draw between 12 and 16 electric field lines. Indicate...
For
each arrangement of point charges, neatly draw between 12 and 16
electric field lines. Indicate direction on ALL field lines with
arrowheads. Show the electric field lines for the entire area
between surrounding chargers, nearly to the edge of the page.
Shape, symmetry, and relative spacing of the lines DO matter but
you do not need to calculate anything
-2 -20 -2
Three charges are located along y-axis with first -77 C charge at origin, second -100 C...
Three charges are located along y-axis with first -77 C charge at origin, second -100 C charge 2m above origin and third +50 C charge 3m below origin. (a) What is the magnitude and direction of force exerted by second charge on first charge, (b) what is the magnitude and direction of force exerted by third charge on first charge, (c) What is the net force on first charge? (d) If the third charge is replaced by an imaginary test...
Three charges are located along y-axis with first -50 C charge at origin, second -100 C...
Three charges are located along y-axis with first -50 C charge at origin, second -100 C charge 2m above origin and third +50 C charge 3m below origin. (a) What is the magnitude and direction of force exerted by second charge on first charge, (b) what is the magnitude and direction of force exerted by third charge on first charge, (c) What is the net force on first charge? (d) If the third charge is replaced by an imaginary test...
In the electric field line diagram for the charge arrangement shown in Figure P24.28, 12 field...
In the electric field line diagram for the charge arrangement shown in Figure P24.28, 12 field lines emanate from the object of charge +1 C. What is the field line flux through closed sur-faces (a) A, (b) B, (c) C, (d) D, and (e) H? Figure P24.28
1. For each statement select P for Positive, N for Negative, or Z for Zero charge...
1. For each statement select P for Positive, N for Negative, or Z for Zero charge (Neutral). (If the first answer is positive, the second negative, and the third neutral (zero net charge), enter PNZ. Do not enter spaces) A) A negatively charged rod is brought close to a neutral isolated conductor, but it does not touch. The conductor is then grounded while the rod is kept close. If the ground connection is first broken, and THEN the rod is...
2. A charge 20 is located at the origin while a second charge -Qis located at...
2. A charge 20 is located at the origin while a second charge -Qis located at x 3 cm. Where should a third charge tq be placed so that the net force on this third charge is zero? Start witha diagram, and you may wish to consult your lecture notes. You should be able to determine a single numerical value for x Two point charges are placed at the vertices of an equilateral triangle as shown. a. Find the net...
1) Coulomb's Law in 1-D (a) For the charge configuration below, sketch the relevant field lines...
1) Coulomb's Law in 1-D (a) For the charge configuration below, sketch the relevant field lines (or lines of force) that a test charge would experience along the 1-D coordinate system. Note: Choose to either draw the field lines or the lines of force, but not both. (4 pts) (b) For the charge configuration below, identify in which region it is possible for a net zero electric field to exist (Region 1, 2, or 3) and mark the approximate position....
7. Three charges are arranged in a straight line. The first charge has a charge of 9.0 microcoulombs, the middle charge has a charge of -12.0 microcoulombs and is 45 cm from the first charge, and the third charge has a charge of 15.0 microcoulombs and is 15 cm from the middle charge (opposite side from the first charge). First, draw a picture of the charges (similar to figure 16-19) with an x-axis. Calculate the net force acting on the...
1. Electric field lines are drawn (a) from positive charges to negative charges (b) from negative charges to positive charges (c) from the largest charge to the smallest charge (d) from the smallest charge to the largest charge. 5. For this laboratory why are the measured equipotentials lines instead of surt aces?
1.4. DRAWING FIELD LINES 3 1.4 Drawing Field Lines 1. Sketch electric field lines for the following four situations: a single positive charge; two positive charges separated by a distance d; a negative and a positive charge separated by a distance di and two negative charges separated by a distance d. For each sketch, assume that all of the charges have the at least 8 equally space field lines same magnitude and use exiting from each charge. Use the circles...
For
each arrangement of point charges, neatly draw between 12 and 16
electric field lines. Indicate direction on ALL field lines with
arrowheads. Show the electric field lines for the entire area
between surrounding chargers, nearly to the edge of the page.
Shape, symmetry, and relative spacing of the lines DO matter but
you do not need to calculate anything
-2 -20 -2
In the electric field line diagram for the charge arrangement shown in Figure P24.28, 12 field lines emanate from the object of charge +1 C. What is the field line flux through closed sur-faces (a) A, (b) B, (c) C, (d) D, and (e) H? Figure P24.28
2. A charge 20 is located at the origin while a second charge -Qis located at x 3 cm. Where should a third charge tq be placed so that the net force on this third charge is zero? Start witha diagram, and you may wish to consult your lecture notes. You should be able to determine a single numerical value for x Two point charges are placed at the vertices of an equilateral triangle as shown. a. Find the net...
1) Coulomb's Law in 1-D (a) For the charge configuration below, sketch the relevant field lines (or lines of force) that a test charge would experience along the 1-D coordinate system. Note: Choose to either draw the field lines or the lines of force, but not both. (4 pts) (b) For the charge configuration below, identify in which region it is possible for a net zero electric field to exist (Region 1, 2, or 3) and mark the approximate position....
