A non-conductor cylinder with a volume charged of radius a, and charge density per length (lambda=Q/L),...
A non-conductor cylinder with a volume charged of radius a, and
charge density per length (lambda=Q/L), find the following

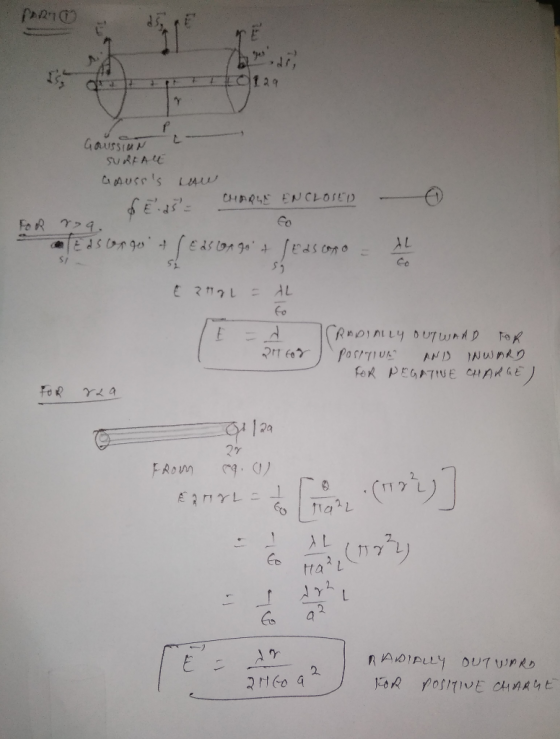

1- the electric field inside and outside the cylinder?

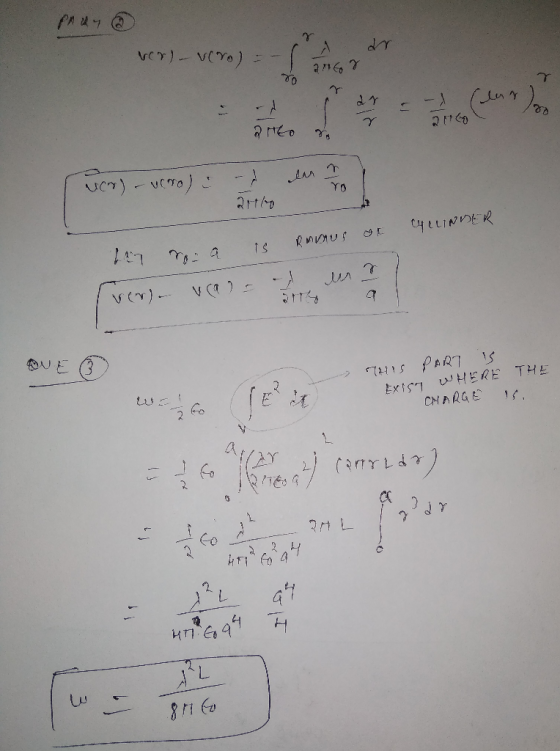

2- the electric potential of the cylinder
3- the self-energy of the work done to ensemble a charge on the
cylinder?
Homework Answers
I will be glad to
see your comment if you have any query.Add Answer to:
