A rectangular foundation with dimensions of B=2 m and L=5 m is to be constructed on...

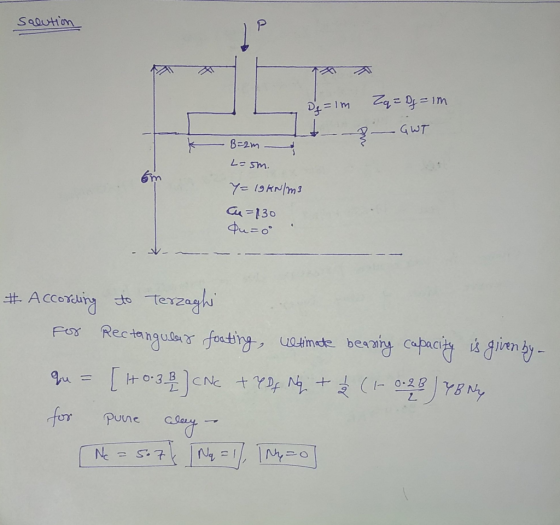

A rectangular foundation with dimensions of B=2 m and L=5 m is to be constructed on a 6 m thick saturated layer of clay. Depth of foundation is 1 m and the undrained strength parameters of clay are ?? = 130 ??? and ?? = 0. The ground water table (GWT) is 1 m below the ground surface and unit weight of clay can be assumed as 19 ??/?3 above and below GWT.

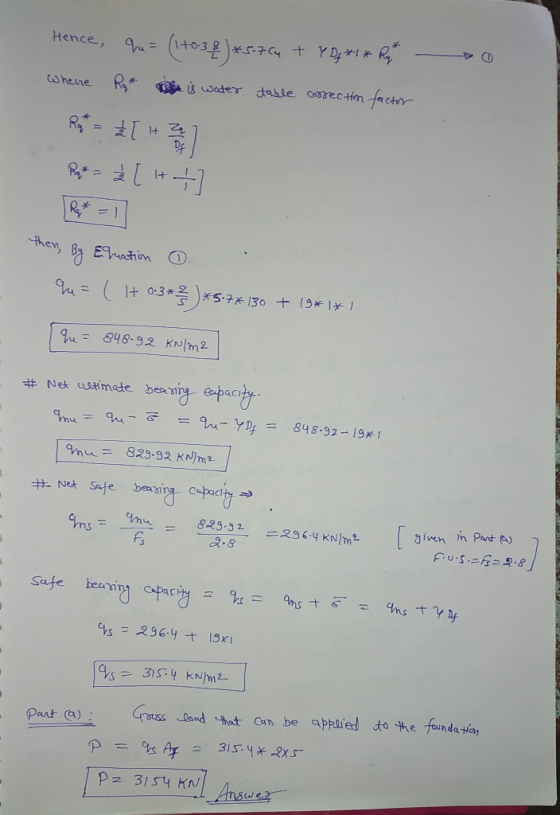

a) For a factor of safety of 2.8 against shear failure of the footing, calculate the gross load that can be applied to the foundation.

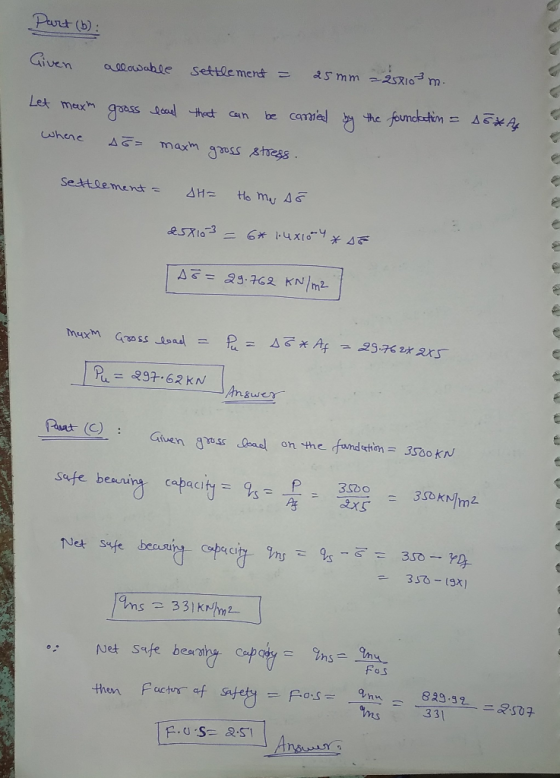

b) If the allowable settlement of the footing is 25 mm, calculate the maximum gross load that can be carried by the foundation, ignoring the immediate settlement. The representative coefficient of volume compressibility of clay is ?? = 1.4 ∗ 10−4 ?2 / ??. c) Assuming the gross load on the foundation 3500 kN, calculate the safety factor against shear failure.
Homework Answers
Add Answer to:
A rectangular foundation with dimensions of B=2 m and L=5 m is
to be constructed on...
For a rectangular foundation, the following are given: B - 3.0 m (width), L - 4.5...
For a rectangular foundation, the following are given: B - 3.0 m (width), L - 4.5 m (length). D 1.2 m (depth), Y 20 kN/m'. '- 32°, c'-50 kPa, Use Terzaghi and Vesic Equations and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil
Question 2 (40% of the total credit) For the rigid strip footing shown in Figure Q2, bearing capa...
Question 2 (40% of the total credit) For the rigid strip footing shown in Figure Q2, bearing capacity failure is t determine the breadth of footing B if the factor of safety agains 3. i. Consider that for both sand and clay Poisson's ratio is 0.33 an Do you think there is a settlement MPa. Calculate the immediate settlement for the footing. problem for this footing if the 3-D consolidation settlement is 10 mm? Discuss yo ur answer. net Pa-...
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are...
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are given: B 3.0 m (width), D 1.2 m (depth). Y=20 kN/m3, = 32°, c' = 50 kPa, Use Terzaghi Equation and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil. When Oar C S
Please assist with Geotechnical engineering Question 3 (70) Design an isolated rectangular footing of dimension 4m...
Please assist with Geotechnical engineering
Question 3 (70) Design an isolated rectangular footing of dimension 4m x 5m. The gross pressure acting at the base of the footing is 150 kN/m2. Choose the depth of foundation such that the factor of safety is exactly 3 against shear failure. Also check against the permissible settlement (75mm) to ensure that the design is safe from the settlement criterion too. If the design is not safe against settlement criterion, then choose the proper...
PROBLEM 2. ELO 2 Capable to determine foundation settlement (weighitng5 309630 minutes A rectangular shallow foundation...
PROBLEM 2. ELO 2 Capable to determine foundation settlement (weighitng5 309630 minutes A rectangular shallow foundation with 1.2 mx 1.2 m carried vertical load of 350 kN, laid down at 1,0 m below the ground surface. Soil layer data and GWT given on the sketch A. Determine elastic settlement of the soil (use graph below). ELO 2-3 B. Determine consolidation settlement (assume sand layer under the clay layer to calculate Aa). ELO 2-3 C. Determine time consolidation at the degree...
Show all work Thre foundations are constructed at the ground surface as shown in Figure 1....
Show all work
Thre foundations are constructed at the ground surface as shown in Figure 1. Calculate the settlement of the clay layer directly under point A at the center of the middle footing. Each large foundation carries a load of 3,200 kips and the small foundation carries a load of 1,200 kips. Note: Subdivide the clay layer into two 8-foot thick layers. Assume 1-D consolidation only. A-t20 Plan View 4' Sand; Ymoist 120 pcf Clay; Yvat-110 pcf, C.-0.25, Cr...
please with clear and simple steps as possible, also write answer all questions ....thank you Q1....
please with clear and simple steps as possible, also write
answer all questions ....thank you
Q1. A load of 630 kN/m is carried on a strip footing 3 m wide at a depth of 1.5 m in a stiff clay with saturated unit weight 21 kN/m, the water table being at ground level Determine the factor of safety with respect to general shear failure (a) whe105 kN/m, and φ,-0°, (b) when c' = 10 kNm, and = 28。 13.0, 3.5]...
Problem 2 (a) A square footing is to be constructed in sand as shown he sketch below Determine th...
Can someone solve this question step by step pls
Problem 2 (a) A square footing is to be constructed in sand as shown he sketch below Determine the column load, P, which the footing will support when the footing is just safe against bearing capacity failure. Indicate the computations on which your answer is based. (15 pts) (b) Under the applied load, and for the footing width of 10 ft, would you expect the footing settlement to be less than...
A square footing, 2 m by 2 m is to be constructed 1.22 m below the...
A square footing, 2 m by 2 m is to be constructed 1.22 m below the ground surface, as shown in the figure below. The groundwater table is located 1.82 m below the ground surface. The subsoil consists of a uniform, medium dense, cohesion less soil with the following properties: Unit weight of soil 18.53KN/m; Angle of internal friction 32 Cohesion Determine the foundation soil's allowable bearing capacity, if a factor of safety of 3.0 is used 1.22 m 1.82...
please i need the correct answer for this queistion because i found in the previous qustion...
please i need the correct answer for this queistion
because i found in the previous qustion the same question with
two diffranet answers and i think there were incorrect
Problem 2 (25 points) An 8x8 ft square footing is embedded at depth 4 ft. The load from column consists of a normal load p- 200 Kips and V- 80 Kips. The soil in the site is a saturated clay with the following properties: undrained shear strength su 1.5 Kip/ft2Y 120pcf....
For a rectangular foundation, the following are given: B - 3.0 m (width), L - 4.5 m (length). D 1.2 m (depth), Y 20 kN/m'. '- 32°, c'-50 kPa, Use Terzaghi and Vesic Equations and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil
Question 2 (40% of the total credit) For the rigid strip footing shown in Figure Q2, bearing capacity failure is t determine the breadth of footing B if the factor of safety agains 3. i. Consider that for both sand and clay Poisson's ratio is 0.33 an Do you think there is a settlement MPa. Calculate the immediate settlement for the footing. problem for this footing if the 3-D consolidation settlement is 10 mm? Discuss yo ur answer. net Pa-...
Problem 5-Bearing Capacity of Shallow Foundation (20 pts) For a square footing foundation, the following are given: B 3.0 m (width), D 1.2 m (depth). Y=20 kN/m3, = 32°, c' = 50 kPa, Use Terzaghi Equation and a factor of safety of 2.5 to determine the allowable bearing capacity and the maximum column load to cause bearing capacity failure. Assume that general shear failure occurs in soil. When Oar C S
Please assist with Geotechnical engineering
Question 3 (70) Design an isolated rectangular footing of dimension 4m x 5m. The gross pressure acting at the base of the footing is 150 kN/m2. Choose the depth of foundation such that the factor of safety is exactly 3 against shear failure. Also check against the permissible settlement (75mm) to ensure that the design is safe from the settlement criterion too. If the design is not safe against settlement criterion, then choose the proper...
PROBLEM 2. ELO 2 Capable to determine foundation settlement (weighitng5 309630 minutes A rectangular shallow foundation with 1.2 mx 1.2 m carried vertical load of 350 kN, laid down at 1,0 m below the ground surface. Soil layer data and GWT given on the sketch A. Determine elastic settlement of the soil (use graph below). ELO 2-3 B. Determine consolidation settlement (assume sand layer under the clay layer to calculate Aa). ELO 2-3 C. Determine time consolidation at the degree...
Show all work
Thre foundations are constructed at the ground surface as shown in Figure 1. Calculate the settlement of the clay layer directly under point A at the center of the middle footing. Each large foundation carries a load of 3,200 kips and the small foundation carries a load of 1,200 kips. Note: Subdivide the clay layer into two 8-foot thick layers. Assume 1-D consolidation only. A-t20 Plan View 4' Sand; Ymoist 120 pcf Clay; Yvat-110 pcf, C.-0.25, Cr...
please with clear and simple steps as possible, also write
answer all questions ....thank you
Q1. A load of 630 kN/m is carried on a strip footing 3 m wide at a depth of 1.5 m in a stiff clay with saturated unit weight 21 kN/m, the water table being at ground level Determine the factor of safety with respect to general shear failure (a) whe105 kN/m, and φ,-0°, (b) when c' = 10 kNm, and = 28。 13.0, 3.5]...
Can someone solve this question step by step pls
Problem 2 (a) A square footing is to be constructed in sand as shown he sketch below Determine the column load, P, which the footing will support when the footing is just safe against bearing capacity failure. Indicate the computations on which your answer is based. (15 pts) (b) Under the applied load, and for the footing width of 10 ft, would you expect the footing settlement to be less than...
A square footing, 2 m by 2 m is to be constructed 1.22 m below the ground surface, as shown in the figure below. The groundwater table is located 1.82 m below the ground surface. The subsoil consists of a uniform, medium dense, cohesion less soil with the following properties: Unit weight of soil 18.53KN/m; Angle of internal friction 32 Cohesion Determine the foundation soil's allowable bearing capacity, if a factor of safety of 3.0 is used 1.22 m 1.82...
please i need the correct answer for this queistion
because i found in the previous qustion the same question with
two diffranet answers and i think there were incorrect
Problem 2 (25 points) An 8x8 ft square footing is embedded at depth 4 ft. The load from column consists of a normal load p- 200 Kips and V- 80 Kips. The soil in the site is a saturated clay with the following properties: undrained shear strength su 1.5 Kip/ft2Y 120pcf....
