6) Buck converter has: Vin =20 V, L=10 mH, C=20 uF, R=20 ohm, switching frequency f=20...
6) Buck converter has: Vin =20 V, L=10 mH, C=20 uF, R=20 ohm,
switching frequency f=20 kHz and switching duty cycle D=0.6.
Calculate the average output
voltage and current ripple?

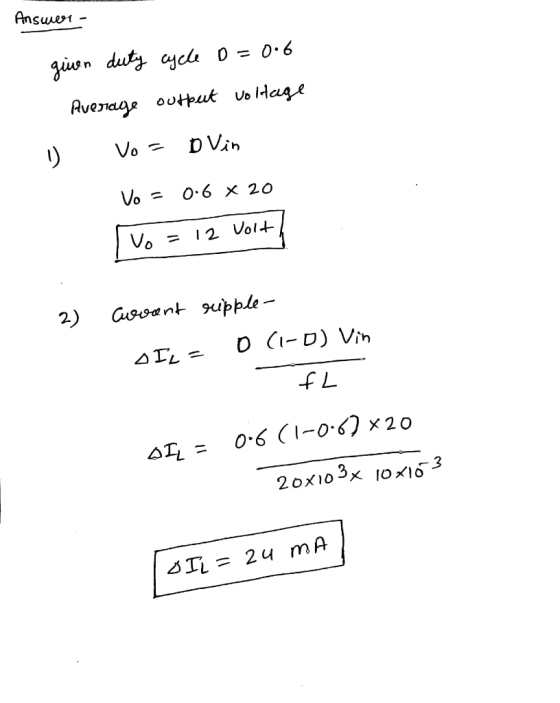

Homework Answers
