A buck converter has the following: Vin=18V, L=10mH, C=20µF, R=20 ohms, switching frequency f=20kHz, and conduction...


A buck converter has the following: Vin=18V, L=10mH, C=20µF, R=20 ohms, switching
frequency f=20kHz, and conduction duty cycle D=0.6. Calculate the output voltage and its ripple
in the steady state. Is this CCM or DCM?

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

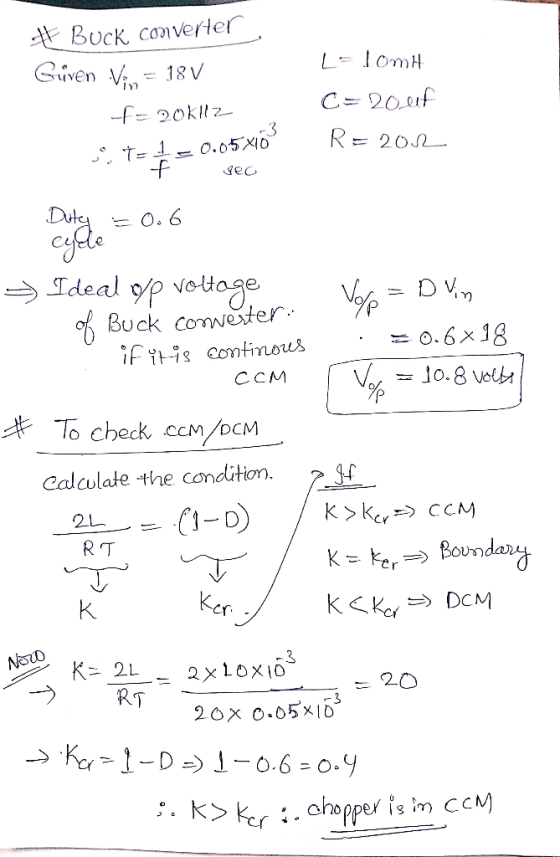

Answer #1

***If have doubts please ask me.....or else please upvote..

0 0
Add a comment
