A 200-ft long, 24-inch pipe (n=0.025) has a submerged inlet (5.5 feet HW) and a submerged...
A 200-ft long, 24-inch pipe (n=0.025) has a submerged inlet (5.5 feet HW) and a submerged outlet (3.5 feet TW), what discharge will pass through the culvert?

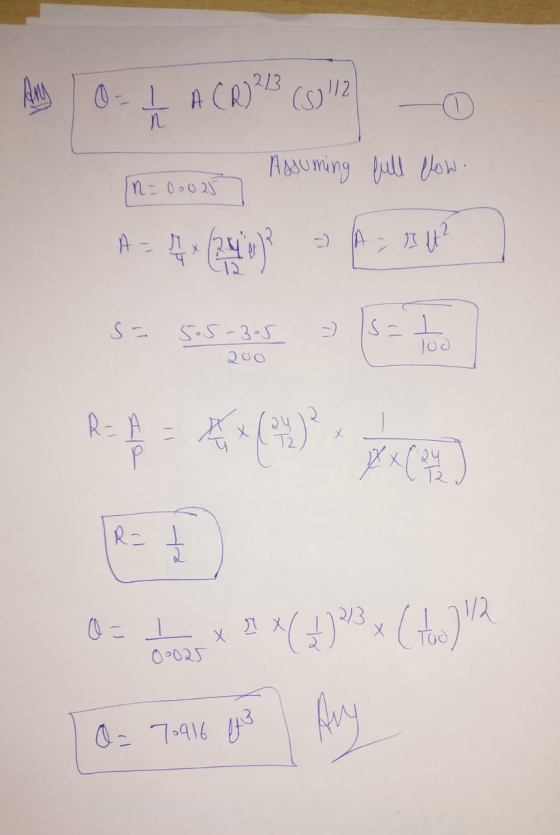

Homework Answers
If any problem regarding the solution feel free to ask and please don't forget to rate the answer
