Homework Answers
Add Answer to:

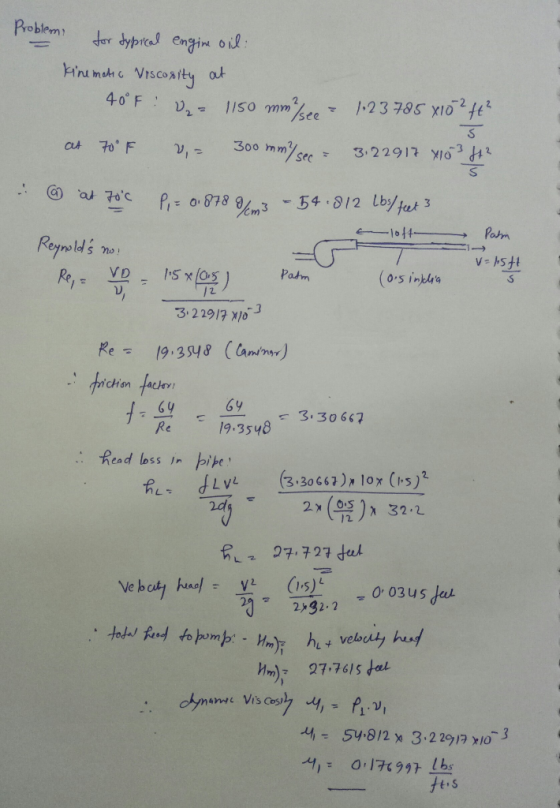

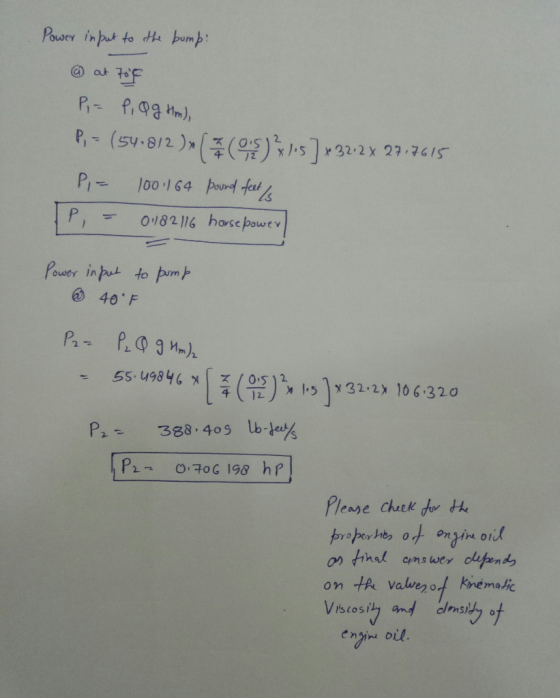

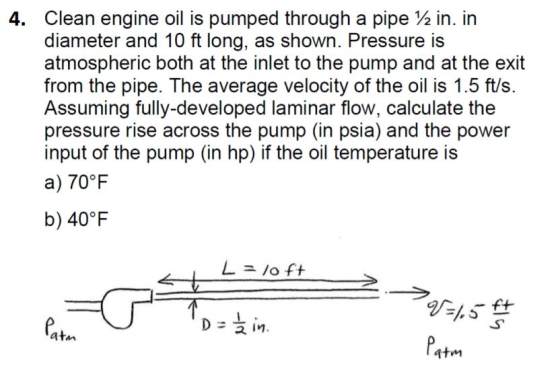

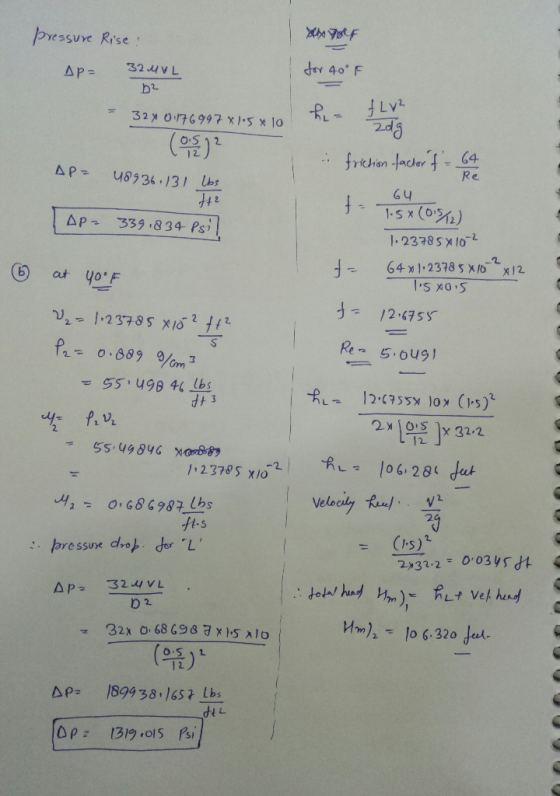

Clean engine oil is pumped through a pipe %)n, in diameter and 10 ft long, as shown. Pressure is ...
(5) Oil is being pumped from a refinery to a distribution center. The pipe has a...
(5) Oil is being pumped from a refinery to a distribution center. The pipe has a length L 1000 m, diameter D-30 cm, and friction factor f-0.015. The change in elevation between the refinery and distribution center is H-10 m up. The pump power required to pump Q-o2 m3/s is P-70 kW. Calculate the pump efficiency and the power required to pump 2Q (i.e. 0.4 m'/s). Ignore local losses including the inlet and outlet velocity head and assume that the...
Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm....
Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is10 km. The discharge is 80 m3 /h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter...
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is 10 km. The discharge is 80 m²/h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter...
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is 10 km. The discharge is 80 m²/h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter...
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is 10 km. The discharge is 80 m²/h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
(40 points) Engine oil flows at a rate of 1 kg/s through a 5-mm diameter smooth straight tube. Th...
(40 points) Engine oil flows at a rate of 1 kg/s through a 5-mm diameter smooth straight tube. The oil has an inlet temperature of 47°C and it is desired to heat the oil to a mean temperature of 87°C at the exit of the tube. The surface of the tube is maintained at 150°C. Assuming the flow is fully developed both hydrodynamically and thermally, determine the required length of the tube. Note: by calculating Reynolds number at the entrance...
A 650-ft-long horizontal commercial steel pipe having a diameter of 6 in. is used to transport...
A 650-ft-long horizontal commercial steel pipe having a diameter of 6 in. is used to transport water at T = 70∘F. Use the Moody diagram. Part A Determine the power output of a pump if the discharge through the pipe is to be 120 ft3/min and the pressure at the pump inlet is 5 psi. The pipe is open to the atmosphere at its outlet. Express your answer using three significant figures.
fluid mechanics SECTION A Petroleum distilate is pumped from one large diameter tank to another higher...
fluid mechanics
SECTION A Petroleum distilate is pumped from one large diameter tank to another higher tank, via a pumping station in an oil refinery. The petroleum is pumped at a speed of 2 ms through a 150 m long pipeline of 100 mm internal diameter. The vertical distance pumped is 20 m. The sum of the entry, exit and other component losses is equivalent to 5 times the velocity head, Table Q1 Fluid density Friction factor f for the...
4. The discharge pressure gauge reading is 5 lb/in2 (psi) for the pumping system shown in the ske...
4. The discharge pressure gauge reading is 5 lb/in2 (psi) for the pumping system shown in the sketch below, with the outlet nozzle discharging a 2-inch diameter stream of water directly to the atmosphere. The gauge pressure at the pump suction inlet at the point of incipient cavitation is (-2,071.12) lb/ft, i.e., for vapor pressure of water at 68° F of 50.54 lb/ft2 absolute, and standard atmospheric pressure 30 in Hg. Friction losses in the suction piping from the reservoir...
Water is being pumped from reservoir A to reservoir F through a 30-m long PVC pipe...
Water is being pumped from reservoir A to reservoir F through a 30-m long PVC pipe (e 0) of diameter 0.150 m. There is an open gate valve located at C; 90 bends (threaded) located at B. D and E; and a pump shown with the letter P. The pump is required to deliver 0.25 m'/s of water to reservoir F from A. NOTE: p. 1000 kg/m. y=9.80 kN/m, v= 1.12 x 10 m/s L-30-m to' -0.25m %2 10 m...
(5) Oil is being pumped from a refinery to a distribution center. The pipe has a length L 1000 m, diameter D-30 cm, and friction factor f-0.015. The change in elevation between the refinery and distribution center is H-10 m up. The pump power required to pump Q-o2 m3/s is P-70 kW. Calculate the pump efficiency and the power required to pump 2Q (i.e. 0.4 m'/s). Ignore local losses including the inlet and outlet velocity head and assume that the...
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is 10 km. The discharge is 80 m²/h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is 10 km. The discharge is 80 m²/h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
1. (25pt) Water at room temperature is pumped through a smooth pipe. The pipe has diameter of 10cm. The total length is 10 km. The discharge is 80 m²/h. A pump is installed at the inlet. At the exit of pump, the absolute pressure of the water is 25 atm. The exit exposes to the atmosphere and its elevation is 100 m higher than the inlet. Estimate the frictional head loss hf.
(40 points) Engine oil flows at a rate of 1 kg/s through a 5-mm diameter smooth straight tube. The oil has an inlet temperature of 47°C and it is desired to heat the oil to a mean temperature of 87°C at the exit of the tube. The surface of the tube is maintained at 150°C. Assuming the flow is fully developed both hydrodynamically and thermally, determine the required length of the tube. Note: by calculating Reynolds number at the entrance...
fluid mechanics
SECTION A Petroleum distilate is pumped from one large diameter tank to another higher tank, via a pumping station in an oil refinery. The petroleum is pumped at a speed of 2 ms through a 150 m long pipeline of 100 mm internal diameter. The vertical distance pumped is 20 m. The sum of the entry, exit and other component losses is equivalent to 5 times the velocity head, Table Q1 Fluid density Friction factor f for the...
4. The discharge pressure gauge reading is 5 lb/in2 (psi) for the pumping system shown in the sketch below, with the outlet nozzle discharging a 2-inch diameter stream of water directly to the atmosphere. The gauge pressure at the pump suction inlet at the point of incipient cavitation is (-2,071.12) lb/ft, i.e., for vapor pressure of water at 68° F of 50.54 lb/ft2 absolute, and standard atmospheric pressure 30 in Hg. Friction losses in the suction piping from the reservoir...
Water is being pumped from reservoir A to reservoir F through a 30-m long PVC pipe (e 0) of diameter 0.150 m. There is an open gate valve located at C; 90 bends (threaded) located at B. D and E; and a pump shown with the letter P. The pump is required to deliver 0.25 m'/s of water to reservoir F from A. NOTE: p. 1000 kg/m. y=9.80 kN/m, v= 1.12 x 10 m/s L-30-m to' -0.25m %2 10 m...
