A 12-bit analogue to digital converter samples at a rate of 10 000 samples per second....

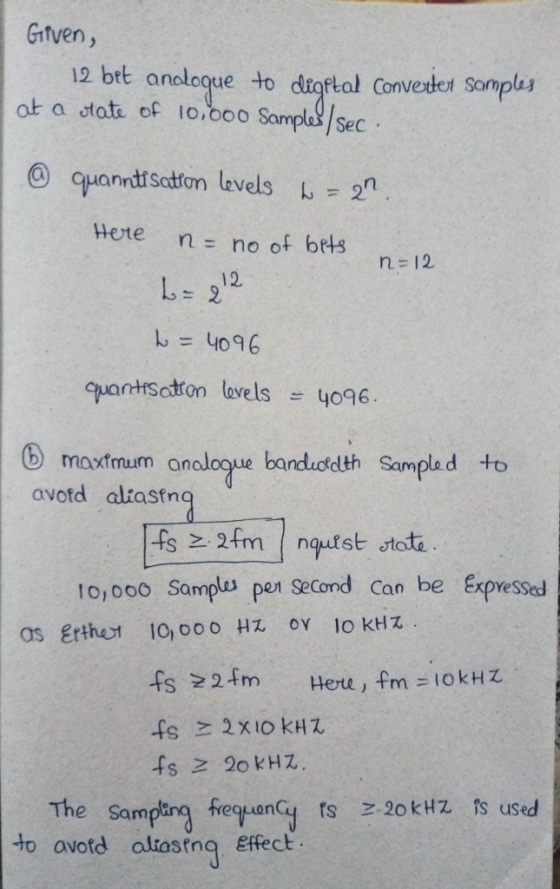

A 12-bit analogue to digital converter samples at a rate of 10 000 samples per second.

  • a.How many quantisation levels are there?

    (1 mark)

  • b.What is the maximum analogue bandwidth that can be sampled, if aliasing is to be avoided?

    (1 mark)

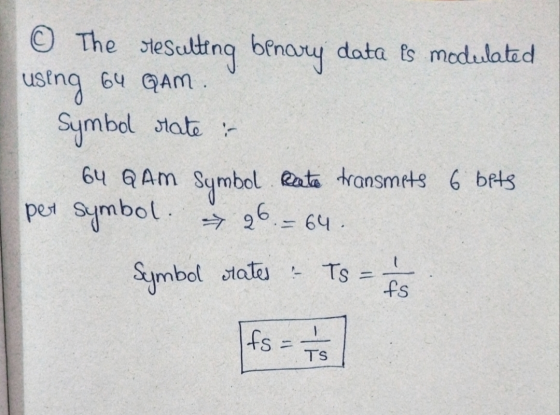

  • c.If the resulting binary data is modulated using 64-QAM, what is the symbol rate?

    (3 marks)

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
