QUESTION 4 Storm water from a housing area discharging 10.82 m3 /s must flow in trapezoidal...

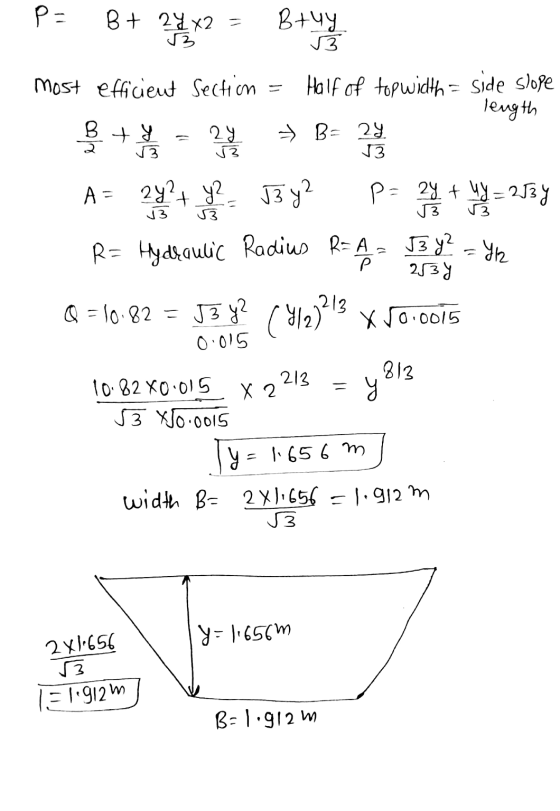

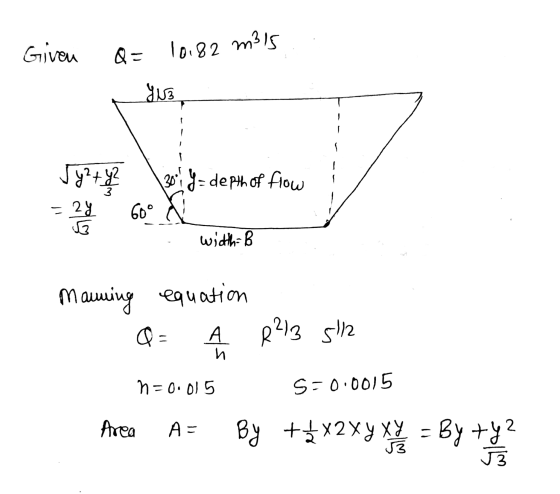

QUESTION 4 Storm water from a housing area discharging 10.82 m3 /s must flow in trapezoidal open channel having the most efficient section. The channel side’s must have a 60 degree slope, made from brickwork, n= 0.015 and the bed slope is 0.0015. design this channel. Provide a sketch of the channel geometry section.
Homework Answers
Area = 4.75 m^2
perimeter = 5.74 m
comment for any doubt about this solution thank you
Don't forget to upvote if you got your answer
