Question

Implement downHeap(Node *n) for a min heap implemented as an ordinary binary tree with an integer member variable "value" and left and right child pointers. Any node might have only a left child, only a right child, both, or neither.

The starter code below defines a class called "Node" that has two child pointers ("left" , "right") and an integer "value" member variable. There is also a constructor Node(int val) that initializes the children to nullptr and the node's value to val.

Your job is to implement the procedure "downHeap(Node *n)" . The procedure should assume that n->left is the root of a min heap subtree (or nullptr) and the same for n->right. The value at Node *n (specifically n->value) might not be less than the values in its left subtree and in its right subtree, and so the tree with Node *n as its root might not be a min heap (even though its left subtree and right subtree are both min heaps). Your code should modify the tree rooted at Node *n so it is a min heap. You do not need to balance the tree or turn it into a complete tree. You only need to ensure that the tree satisfies the min heap property:

For a min heap, it is okay for a node's value to be equal to one or both of its children, but the node's value must not be greater than either of its children.

class Node {
public:
int value;
Node *left, *right;
Node(int val = 0) { value = val; left = right = nullptr; }
~Node() {
delete left;
left = nullptr;
delete right;
right = nullptr;
}
};

This function has also previously been defined for you:

void printTreeVertical(const Node* n);

You can use it to print a verbose, vertical diagram of
a tree rooted at n. In this vertical format, a left child
is shown above a right child in the same column. If no
child exists, [null] is displayed.

*/

void downHeap(Node *n)

{




}

// You can also use this compact printing function for debugging.
void printTree(Node *n) {
if (!n) return;
std::cout << n->value << "(";
printTree(n->left);
std::cout << ")(";
printTree(n->right);
std::cout << ")";
}

int main() {
Node *n = new Node(100);
n->left = new Node(1);
n->right = new Node(2);
n->right->left = new Node(3);
n->right->right = new Node(4);
n->right->right->right = new Node(5);

downHeap(n);

std::cout << "Compact printout:" << std::endl;
printTree(n);
std::cout << std::endl << "Vertical printout:" << std::endl;
printTreeVertical(n);

delete n;
n = nullptr;

return 0;
}

Answer 1

The updated C++ code is given below:

#include<bits/stdc++.h>
using namespace std;
class Node {
public:
   int value;
   Node *left, *right;
   Node(int val = 0) {
       value = val;
       left = right = nullptr;
   }
   ~Node() {
       delete left;
       left = nullptr;
       delete right;
       right = nullptr;
   }
};
/*
This function has also previously been defined for you:

void printTreeVertical(const Node* n);

You can use it to print a verbose, vertical diagram of
a tree rooted at n. In this vertical format, a left child
is shown above a right child in the same column. If no
child exists, [null] is displayed.

*/
void heapify(Node *n)
{
   if(!n) return;
   /* Finding the minimum value among n , n->left and n->right */
   int mn = n->value;
   char minChar = 'n'; // minchar = 'n' represents that the min is at node n.
   if(n->left && n->left->value < mn) // if left child contains minm value
   {
       mn = n->left->value;
       minChar = 'l';
   }
   if(n->right && n->right->value < mn) // if right child contains minm value
   {
       mn = n->right->value;
       minChar = 'r';
   }
   if(minChar == 'l')
   {
       swap(n->value,n->left->value); // swap and recur in left subtree
       heapify(n->left);
   }
   else if(minChar == 'r')
   {
       swap(n->value,n->right->value); // swap and recur in right subtree
       heapify(n->right);
   }
} // otherwise everything is fine
void downHeap(Node *n)
{
   if(!n) return;
   downHeap(n->left); // recur for left subtree
   downHeap(n->right); // recur for right subtree
   // after recurring left and right subtree the left and right subtree becomes min heap.
   heapify(n); // now place the n->value to its correct location
}

// You can also use this compact printing function for debugging.
void printTree(Node *n) {
   if (!n) return;
   std::cout << n->value << "(";
   printTree(n->left);
   std::cout << ")(";
   printTree(n->right);
   std::cout << ")";
}

int main() {
   Node *n = new Node(100);
   n->left = new Node(1);
   n->right = new Node(2);
   n->right->left = new Node(3);
   n->right->right = new Node(4);
   n->right->right->right = new Node(5);

   std::cout << "Initial printout:" << std::endl;
   printTree(n);
   cout<<endl;

   downHeap(n);

   std::cout << "Compact printout:" << std::endl;
   printTree(n);
   // std::cout << std::endl << "Vertical printout:" << std::endl;
   // printTreeVertical(n);

   delete n;
   n = nullptr;

   return 0;
}

Sample Output:
Initial printout:
100(1()())(2(3()())(4()(5()())))
Compact printout:
1(100()())(2(3()())(4()(5()())))

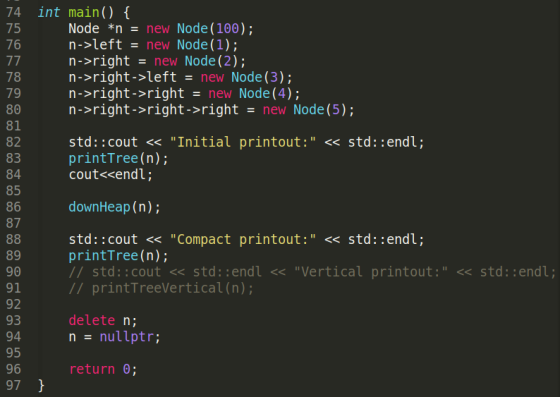

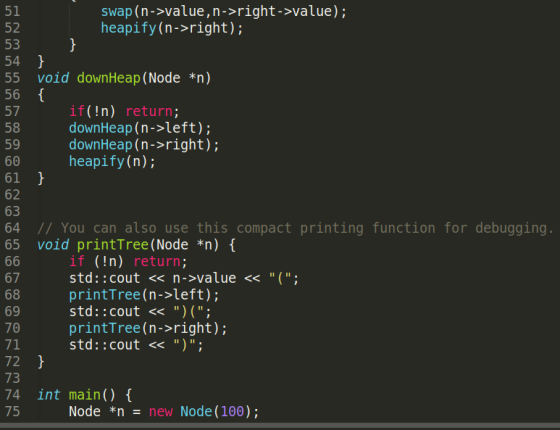

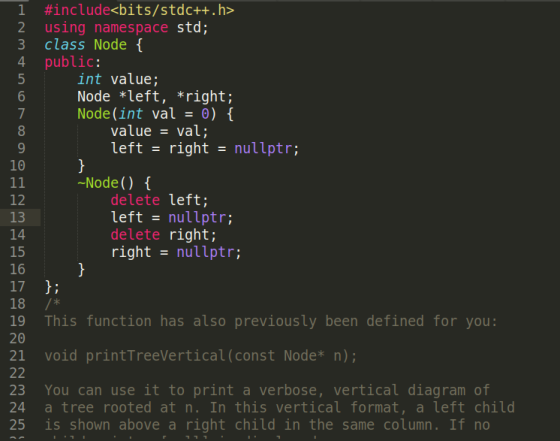

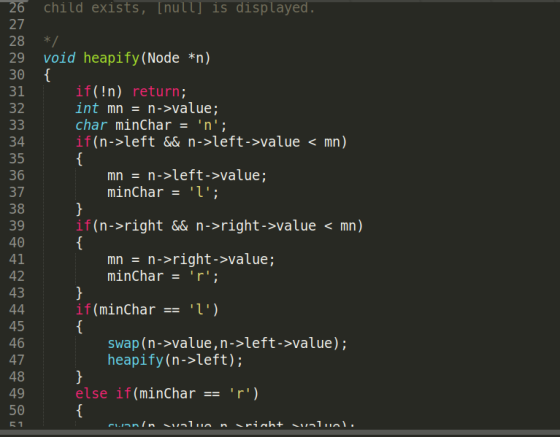

Screenshot of C++ code is given below:
