1) Implement MOVSX: Write a sequence of shift instructions that cause AX to be sign-extended into...
1) Implement MOVSX: Write a sequence of shift instructions that cause AX to be sign-extended into EAX. In other words, the sign bit of AX is copied into the upper 16 bits of EAX.
example: 8000h in AX results in 0FFFF8000h in EAX
7000h in AX results in 00007000h in EAX
Homework Answers
To understand this problem, we need to understand what does "MOVSX" instruction does.
MOVSX is expanded as move with sign extension. It is a special vesion of MOV instruction along with MOVZX which is move with zero extention. Basically MOVSX is designed to be used for signed register and MOVZX is designed to be used for unsigned register.
In MOVSX data is moved from smaller register and the sign is preserved by either padding with zero(for positive values) or F's (for negative values.

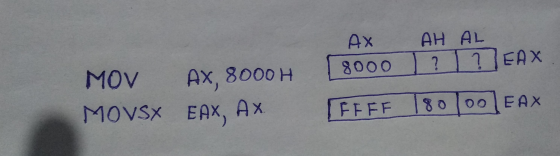

For example:
Taking example given in question;
