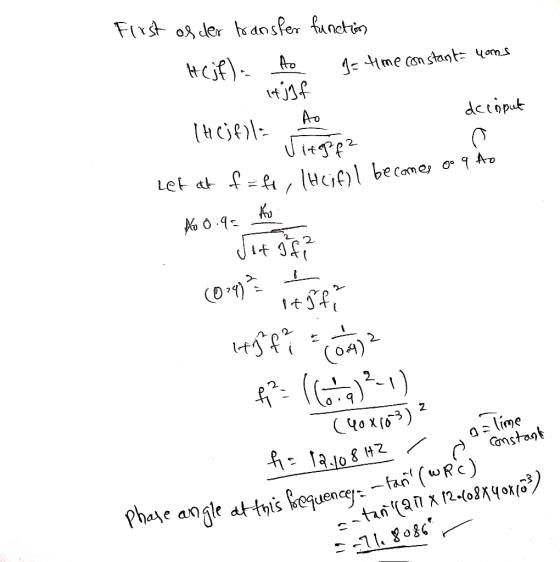

A low-pass ﬁrst-order instrument has a time constant of 40 ms.

-Find the frequency, in hertz, of the input at which the output will be 90% of the dc output.

- Find the phase angle at this frequency
