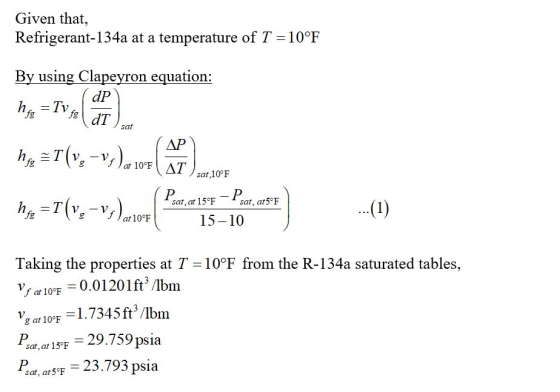

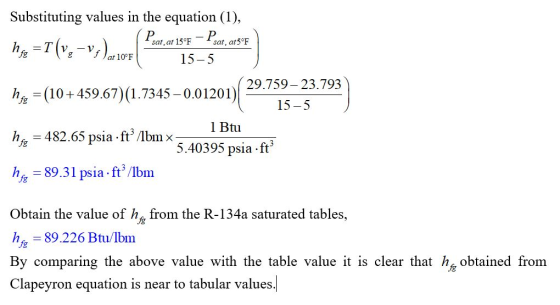

Determine the hfg of refrigerant-134a at 10°F. Use data from the tables. The gas constant of...
Determine the hfg of refrigerant-134a at 10°F. Use data from the tables. The gas constant of refrigerant-134a is R = 0.01946 Btu/lbm·R.
Consider Clapeyron equation for calculations. (You must provide an answer before moving on to the next part.)
The hfg of refrigerant-134a at 10°F is ____ Btu/lbm.
