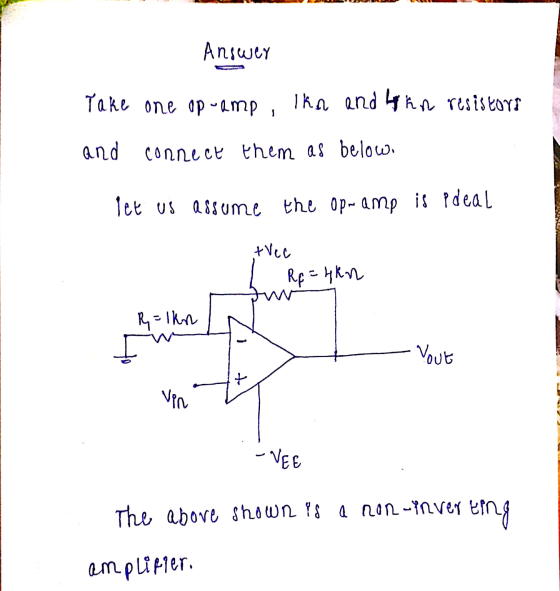

Using either passive components or an op-amp-based circuit, design a circuit that has a gain enhancement...

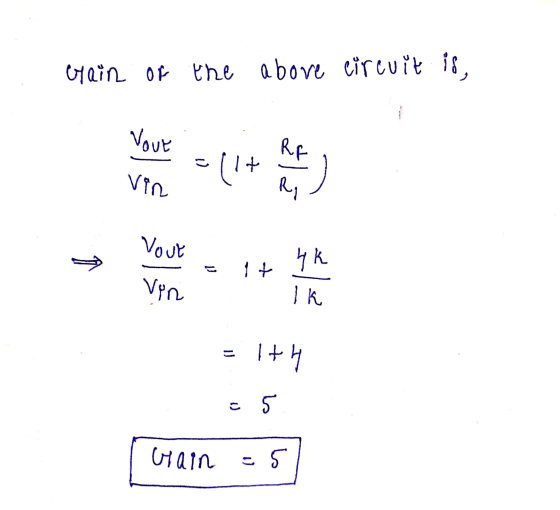

Using either passive components or an op-amp-based circuit, design a circuit that has a gain enhancement of of K = 5.
Homework Answers
Add Answer to:
Using either passive components or an op-amp-based circuit,
design a circuit that has a gain enhancement...
1- Design a lossy integrator op-amp circuit using op-amp 741. First, derive an expression for - V...
UPLOAD PSPICE SIMULATION TO VERIFY CALCULATIONS
1- Design a lossy integrator op-amp circuit using op-amp 741. First, derive an expression for - Vo Then assign values to circuit components in order to have Gai 1. Verify your design with a PSpice simulation. Since gain value depends on Vi frequency, perform an AC sweep analysis (frequency response) to obtain which frequency gives you this gain. Report this trequency. IVil
1- Design a lossy integrator op-amp circuit using op-amp 741. First, derive...
Please solve this ASAP. You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier that obeys the above function. Make sure...
Please solve this ASAP.
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier that obeys the above function. Make sure you use reasonable values for components. The value Vref must be variable (i.e. adjustable via changing the value of resistance(s). Simulate the circuit using Multisim 1. 2,
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier...
Use only passive components and exactly one op amp to design an astable multivibrator. It must have an output of a 30
Use only passive components and exactly one op amp to design an astable multivibrator. It must have an output of a 30
3. Design an op amp circuit using one op amp that will take two inputs, Vi...
3. Design an op amp circuit using one op amp that will take two inputs, Vi and V2, and produce an output Vo--4V1 - 2V2.
Design an inverting op amp circuit with gain-12. Resistors available are 10K, 12K, 100K, 120K, and...
Design an inverting op amp circuit with gain-12. Resistors available are 10K, 12K, 100K, 120K, and 200K. If vin 1.2 volts, is the op amp saturated? RF ? IS Upload Choose a File
If the open loop gain of an op-amp is very large, does the closed loop gain depend upon the external components or th...
If the open loop gain of an op-amp is very large, does the closed loop gain depend upon the external components or the op-amp? Explain the meaning of open loop and closed loop operation of an op- amp? What is a practical op-amp? Draw its equivalent circuit.
2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the ampl...
2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the amplifier must be +10 b. The input range is ± 2V c. The total power consumed by the resistors must be less than 100 mW Show all the calculations required to design the amplifier circuit with the shown specifications.in details Use MULTISIM to create the op-amp circuit and print a fully labelled diagram of the circuits with the voltmeters displays showing both...
design a circuit based on the noninverting op amp configuration that functions as a 1 mA...
design a circuit based on the noninverting op amp configuration that functions as a 1 mA a.c. current source
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the...
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the given circuit: (i) Name all the type of op-amp circuits shown by Op-Amp 1 until Op-Amp 5. (ii) Calculate the output of each Op-Amp 1 until Op-Amp 4. Assume Vin = 10mV (iii) Determine the output voltage at the last Op-Amp 5. From this value, calculate the gain produced by this Op-Amp network in overall, by using Av=Vos / Vin equation. [10 Marks] CO3,...
5.8 a) Design an inverting amplifier with a gain of 4. Use an ideal op amp,...
5.8 a) Design an inverting amplifier with a gain of 4. Use an ideal op amp, a resistor in the feedback path, and 12 V power supplies. b) Using your design from part (a), determine the range of input voltages that will keep the op amp in its linear operating region. c) Suppose you wish to amplify a 2 V signal, using your design from part (a) with a variable feedback resistor. What is the largest value of feedback resistance...
UPLOAD PSPICE SIMULATION TO VERIFY CALCULATIONS
1- Design a lossy integrator op-amp circuit using op-amp 741. First, derive an expression for - Vo Then assign values to circuit components in order to have Gai 1. Verify your design with a PSpice simulation. Since gain value depends on Vi frequency, perform an AC sweep analysis (frequency response) to obtain which frequency gives you this gain. Report this trequency. IVil
1- Design a lossy integrator op-amp circuit using op-amp 741. First, derive...
Please solve this ASAP.
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier that obeys the above function. Make sure you use reasonable values for components. The value Vref must be variable (i.e. adjustable via changing the value of resistance(s). Simulate the circuit using Multisim 1. 2,
You are to design an op-amp based amplifier that generates the following transfer function Vref Task: Design an op-amp based amplifier...
3. Design an op amp circuit using one op amp that will take two inputs, Vi and V2, and produce an output Vo--4V1 - 2V2.
Design an inverting op amp circuit with gain-12. Resistors available are 10K, 12K, 100K, 120K, and 200K. If vin 1.2 volts, is the op amp saturated? RF ? IS Upload Choose a File
2. Design a non-inverting op-amp circuit with two resistors under the following conditions: a. The gain of the amplifier must be +10 b. The input range is ± 2V c. The total power consumed by the resistors must be less than 100 mW Show all the calculations required to design the amplifier circuit with the shown specifications.in details Use MULTISIM to create the op-amp circuit and print a fully labelled diagram of the circuits with the voltmeters displays showing both...
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the given circuit: (i) Name all the type of op-amp circuits shown by Op-Amp 1 until Op-Amp 5. (ii) Calculate the output of each Op-Amp 1 until Op-Amp 4. Assume Vin = 10mV (iii) Determine the output voltage at the last Op-Amp 5. From this value, calculate the gain produced by this Op-Amp network in overall, by using Av=Vos / Vin equation. [10 Marks] CO3,...
