A swimmer at a depth of 1 meter in a pool looks at a child standing...

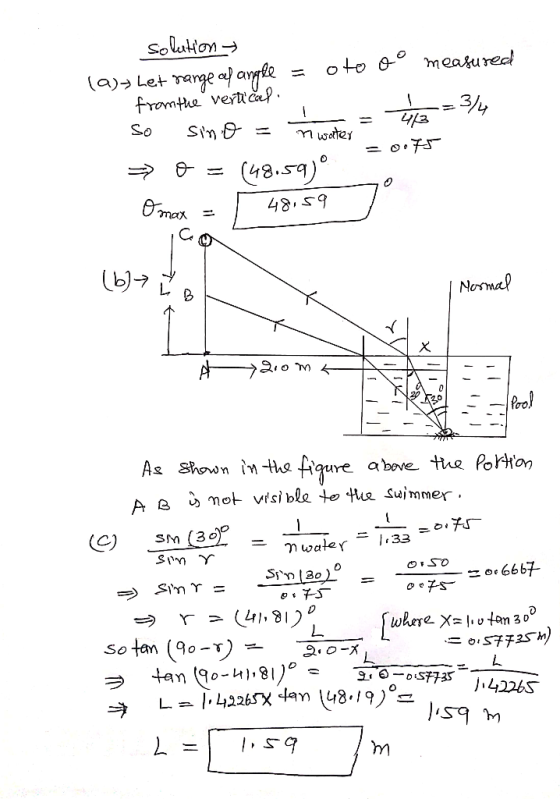

A swimmer at a depth of 1 meter in a pool looks at a child standing on the edge of the pool. The child stands just at the water level 2 meters away. When the swimmer looks toward the child at an angle of 30 degrees from the vertical, the swimmer sees the very top of the child’s head.(Note: make sure you draw a diagram before doing this problem.)
(a)Over what range of angles (measured from the vertical) can the swimmer see objects outside the pool?
(b)Is there any part of the child that is not visible to the swimmer?
(c)How tall is the child?
Homework Answers
Add Answer to:
A swimmer at a depth of 1 meter in a pool looks at a child
standing...
