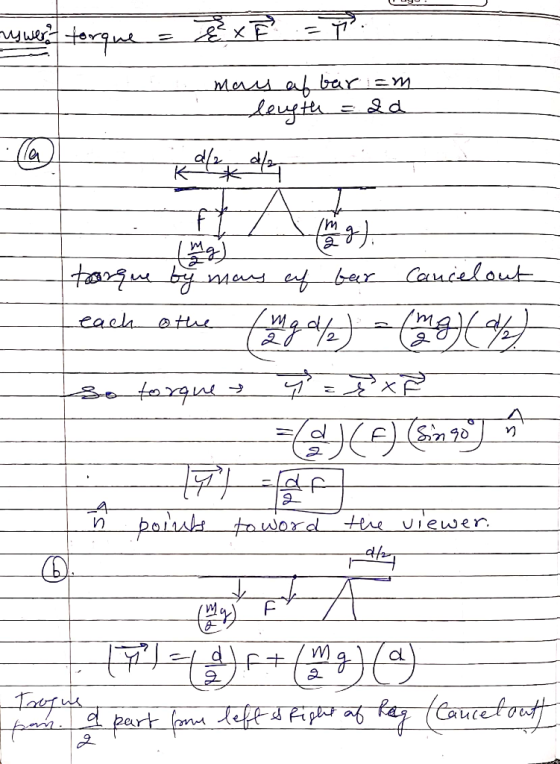

#1 A bar of mass m and length 2d sits on a peg that is at...
#1 A bar of mass m and length 2d sits on a peg that is at a distance d from the end of the bar. If a force of F is applied downward at a point d/2 from the end, what is the resulting torque?
a. Fd/2, b.Fd, c. 2Fd, d.3Fd/2
#2 The same bar of mass m of length 2d sits on a peg that is at a distance d/2 from the end of the bar. If a force of F is applied downward at a point d from the end, what is the resulting torque?
?=???+?? or ?=???−?? or ?=???/2+??/2 or ?=?d

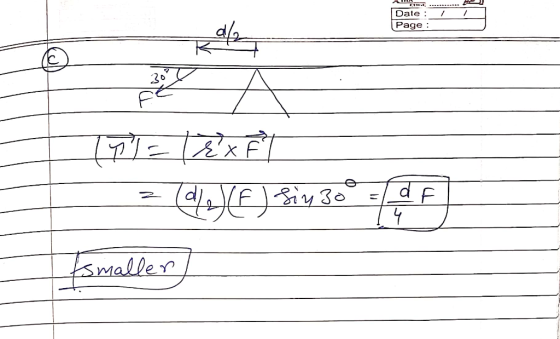

#3 If the force from #1 was applied at an angle of 30°, would the magnitude of the torque stay the same, be larger or smaller?
Homework Answers
A small block of mass, m, sits on top of a larger block of mass, M....
A small block of mass, m, sits on top of a larger block of mass, M. The coefficients of friction between the blocks are μk and μs where μs=3/2μk, but the larger block sits on a frictionless surface. An increasing force, F=ft in the x-direction is exerted on the smaller mass. a) Find the acceleration of larger block and the smaller block in the time before the smaller block slips off the larger block. b) the time in which the...
#3 - A metal bar of length 51.0 cm and mass 740 g sits on par...
#3 - A metal bar of length 51.0 cm and mass 740 g sits on par of length 51.0 cm and mass 740 g sits on wire as shown in the figure below. The bar is free to lift off the wire if given enough force. An external magnetic field of magnitude of 0.43 A battery and a resistor (R = 22.0 2) are connected as shown. a) What is the largest voltage the battery can have without lifting the...
ceiling G 12 Bar AB of mass m and length L is attached to two springs...
ceiling G 12 Bar AB of mass m and length L is attached to two springs at its ends and is held down with cord C as shown in the diagram. When the bar is horizontal, spring A exerts a force Fo and spring B exerts a larger force F (Cord C is needed to hold the bar in place because both forces F, and F, are greater than the weight of the bar). 1-At what distance x from point...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionle...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
A lamp of mass M is hung off of a steel bar of mass m and length / (treat as known). The bar makes a M450 60° angle...
A lamp of mass M is hung off of a steel bar of mass m and length / (treat as known). The bar makes a M450 60° angle with the vertical wall. In order to prevent the steel bar from bending or snapping, a cable is hung off of the wall that connects at the end of the bar. The cable creates a 45° angle with the vertical wall. 60° a) Draw an extended free body diagram (not for a...
A ball of mass m-3.50 kg is attached to a horizontal massless cord of length l-...
A ball of mass m-3.50 kg is attached to a horizontal massless cord of length l- 2.00 m, and the other end is fixed, as shown. The ball is released from rest from the highest point, A. Peg a. b. What is the speed of the ball when it reaches its lowest point, B? How much work is done by gravity as the ball moves from point A to point B, its lowest point? c. How much work is done...
A uniform bar of length 3.7 m and mass 4.8 kg is attached to a wall...
A uniform bar of length 3.7 m and mass 4.8 kg is attached to a wall through a hinge mechanism which allows it to rotate freely. The other end of the bar is supported by a rope of length 5.1 m which is also connected to the wall as shown above. What force in N does the wall exert vertically on the bar through the hinge? (Consider an upward force as positive and a downward force as negative.)
QUESTION 1 A uniform bar of total mass m and total length L has been bent into an L-shape such th...
QUESTION 1 A uniform bar of total mass m and total length L has been bent into an L-shape such that the shorter segment is 1/4 of the total length. The free end of the longer segment is connected to a fixed frame with a frictionless revolute joint at A and the rod is initially held stationary with the longer segment horizontal and the shorter segment vertical as shown in the figure below. 3L 4 4 The horizontal distance from...
The two uniform bars are identical. The mass and length of each bar are m= 30...
The two uniform bars are identical. The mass and length of each bar are m= 30 kg and L=1.6 m. The top bar rotates around point A, coordinate , locates the bar, and force F(t) = 500 sin 60t (in N) is being applied to the end of the bar. A spring with k = 10000 N/m connects the top bar to a fixed point. The bottom bar rotates around its center at point B and coordinate 0g locates this...
The figure shows the mass m at the end of a bar of length / is...
The figure shows the mass m at the end of a bar of length / is restrained by a spring and dashpot. The mass is initially at rest and vibrates in the vertical plane under the action of the force F(1). Determine the equation of motion, natural frequency, and damping ratio of the system when m = 45 kg, k = 9700 N/m, c = 950 N.s/m, a - 0.8 m, and I = 2 m. Neglect the mass of...
#3 - A metal bar of length 51.0 cm and mass 740 g sits on par of length 51.0 cm and mass 740 g sits on wire as shown in the figure below. The bar is free to lift off the wire if given enough force. An external magnetic field of magnitude of 0.43 A battery and a resistor (R = 22.0 2) are connected as shown. a) What is the largest voltage the battery can have without lifting the...
ceiling G 12 Bar AB of mass m and length L is attached to two springs at its ends and is held down with cord C as shown in the diagram. When the bar is horizontal, spring A exerts a force Fo and spring B exerts a larger force F (Cord C is needed to hold the bar in place because both forces F, and F, are greater than the weight of the bar). 1-At what distance x from point...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
A lamp of mass M is hung off of a steel bar of mass m and length / (treat as known). The bar makes a M450 60° angle with the vertical wall. In order to prevent the steel bar from bending or snapping, a cable is hung off of the wall that connects at the end of the bar. The cable creates a 45° angle with the vertical wall. 60° a) Draw an extended free body diagram (not for a...
A ball of mass m-3.50 kg is attached to a horizontal massless cord of length l- 2.00 m, and the other end is fixed, as shown. The ball is released from rest from the highest point, A. Peg a. b. What is the speed of the ball when it reaches its lowest point, B? How much work is done by gravity as the ball moves from point A to point B, its lowest point? c. How much work is done...
QUESTION 1 A uniform bar of total mass m and total length L has been bent into an L-shape such that the shorter segment is 1/4 of the total length. The free end of the longer segment is connected to a fixed frame with a frictionless revolute joint at A and the rod is initially held stationary with the longer segment horizontal and the shorter segment vertical as shown in the figure below. 3L 4 4 The horizontal distance from...
The two uniform bars are identical. The mass and length of each bar are m= 30 kg and L=1.6 m. The top bar rotates around point A, coordinate , locates the bar, and force F(t) = 500 sin 60t (in N) is being applied to the end of the bar. A spring with k = 10000 N/m connects the top bar to a fixed point. The bottom bar rotates around its center at point B and coordinate 0g locates this...
The figure shows the mass m at the end of a bar of length / is restrained by a spring and dashpot. The mass is initially at rest and vibrates in the vertical plane under the action of the force F(1). Determine the equation of motion, natural frequency, and damping ratio of the system when m = 45 kg, k = 9700 N/m, c = 950 N.s/m, a - 0.8 m, and I = 2 m. Neglect the mass of...
