Question

Purpose: To learn the basics of doubly linked lists

You are to implement 2 classes, Cabin and Train.

The Cabin class (also known as the node class) has the following fields and methods:

private String cabinType

private Cabin nextCabin

private Cabin prevCabin

Cabin(String type, Cabin next, Cabin prev) - A constructor that creates a Cabin object with a set cabinType and the prev/nextCabin fields set

Hint: if we want next/prev to point to null we can pass in null for those values

public Cabin getNextCabin() - returns the nextCabin from the current one

public void setNextCabin(Cabin newCabin) - changes the nextCabin to the cabin passed in

public Cabin getPrevCabin() - returns the prevCabin from the current one

public void setPrevCabin(Cabin newCabin) - changes the prevCabin to the cabin passed in

public String getCabintype() - returns the cabintype

Your train class has the following fields and methods

public Cabin Front (this is also known as head)- stores the first Cabin in the train

public Cabin Caboose (this is also known as tail)- stores the last Cabin in the train

public Train() - A Train constructor which initializes the the Front and Caboose variables to null

public void addCabin(String cabinType) - A method that adds a new Cabin to the end of the Train (aka it becomes the new tail)

public void addCabin(String cabinType, int pos) - A method that adds a new Cabin to the Train at the position passed in, if that position is not accessible such as if we try to add something at pos=45 and there are only 3 elements in the list we don’t add anything

Hint: Use a while loop that both keeps track of if we are at the end of the list and how many indexes we have passed

public Cabin removeCabin() - A method that removes a Cabin from the end of the Train’s cabinManifest, and returns the removed object (aka we remove the tail of the train)

public Cabin removeCabin(int pos) - A method that removes the Cabin at the passed in position from the Train’s cabinManifest, and returns the removed object if the position is not in the linked list nothing is removed we just return null.

Note: The head of the linked list should indexed at 0

Hint: Use a while loop that both keeps track of if we are at the end of the list and how many indexes we have passed

public void swap(int pos1, int pos2) - A method that takes the Cabins at each of the passed in positions and swaps them, if there are not cars at both positions it does nothing

Hint: Similar to the above position dependent methods use a while loop for EACH of the cabins to find them (so we will use 2 seperate loops NOT NESTED) then we can change the next and previous cabin fields

public String toString() - returns a string where each of the Cabin’s cabinType is separated by a comma and space. Ex: “cabintype1, cabintype2, cabintype3”

Note/Hint:It may be helpful to create a helper method that finds a node at a given position in the linked list, that way you would only have to write the code once and could use it in other methods. It is definitely is not necessary, but can help simplify the code.

You also need to create a Driver class with a main method. In main:

Create a Train object

Add Cabins until it is:

”Tanker”,”Passenger1”,”Passenger2”,”Bananas”,”Monkeys” Print out the toString() of the Train object

Call removeCabin() on the Train

Print out the toString() of the Train object

Call removeCabin(2) on the Train

Print out the toString() of the Train object

Call swap(1,2) on the train

Print out the toString() of the Train object

Add a Cabin called “Monkey Madness” to the front of the train

Print out the toString() of the Train object

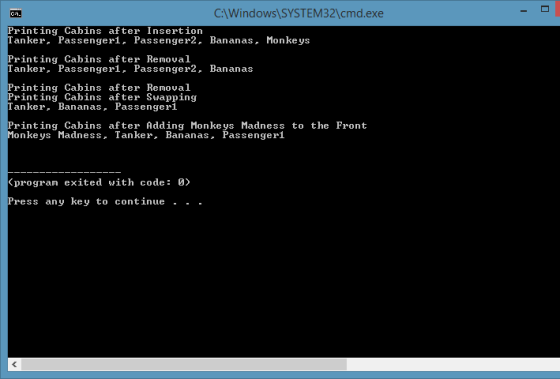

Example Output:

”Tanker”,”Passenger1”,”Passenger2”,”Bananas”,”Monkeys”

”Tanker”,”Passenger1”,”Passenger2”,”Bananas” “Tanker”,”Passenger1”,”Bananas” “Tanker”,”Bananas”,”Passenger1”

“Monkey Madness”,“Tanker”,”Bananas”,”Passenger1”

Answer 1

//Cabin.java
class Cabin
{
   //cabin fields
   private String cabinType;
   private Cabin nextCabin;
   private Cabin prevCabin;
   //constructor
   Cabin(String type, Cabin next, Cabin prev)
   {
       this.cabinType = type;
       this.nextCabin = next;
       this.prevCabin = prev;
   }
   //getters
   public Cabin getNextCabin()
   {
       return this.nextCabin;
   }
   public Cabin getPrevCabin()
   {
       return this.prevCabin;
   }
   public String getCabinType()
   {
       return this.cabinType;
   }
   //setters
   public void setPrevCabin(Cabin prev)
   {
       this.prevCabin = prev;
   }
   public void setNextCabin(Cabin next)
   {
       this.nextCabin = next;
   }
}

//Train.java
class Train
{
   //Front and Tail cabins
   public Cabin Front;
   public Cabin Caboose;
   //to count number of cabins
   int len;
   Train()
   {
       Front = null;
       Caboose = null;
       len = 0;
   }
   public void addCabin(String cabinType)
   {
       Cabin newCabin = new Cabin(cabinType,null,null);
       //initially there are no cabins
       //set front and tail cabbins to newly created cabin
       if(Front == null)
       {
           Front = newCabin;
           Caboose = newCabin;
       }
       //if not add cabin to the Caboose
       //first link new cabin previous to the Caboose
       newCabin.setPrevCabin(Caboose);
       //then link Caboose next to newCabin
       Caboose.setNextCabin(newCabin);
       //and finally set caboose to newCabin
       Caboose = newCabin;
       len++;
   }
   public void addCabin(String cabinType,int pos)
   {
       if(pos < len)
       {
           //here it is 0 based index
           // last element is always len - 1 not len
           //if the given value is the end position so call addCabin which adds
           //cabin at end
           if(pos == 0)
           {
               Cabin cabin = new Cabin(cabinType,null,null);
               //link new cabin next to the front
               cabin.setNextCabin(Front);
               //link front prev to new cabin
               Front.setPrevCabin(cabin);
               //finally make front as new cabin
               Front = cabin;

           }
           else if(pos == len-1)
           {
               addCabin(cabinType);
           }
           else
           {
               Cabin temp = Front;
               int ind = 0;
               while(temp.getNextCabin()!=null && ind < pos)
               {
                   temp = temp.getNextCabin();
                   ind++;
               }
               Cabin newCabin = new Cabin(cabinType,null,null);
               Cabin next = temp.getNextCabin();

               newCabin.setPrevCabin(temp);
               newCabin.setNextCabin(next);
               next.setPrevCabin(newCabin);
               temp.setNextCabin(newCabin);

           }
           len++;
       }
   }
   //remove the last cabin
   public Cabin removeCabin()
   {
       if(len == 1)
       {
           Cabin temp = Front;
           Front = null;
           Caboose = null;
           len--;
           return temp;
       }
       else
       {
           Cabin temp = Caboose;
           Caboose = Caboose.getPrevCabin();
           Caboose.setNextCabin(null);
           len--;
           return temp;
       }
   }

   //remove cabin at given position
   public Cabin removeCabin(int pos)
   {
       if(pos < len)
       {
           if(pos == 0)
           {
               if(len == 1)
               {
                   Cabin temp = Front;
                   Front = null;
                   Caboose = null;
                   len--;
                   return temp;
               }
               else
               {
                   Cabin temp = Front;
                   Front = Front.getNextCabin();
                   Front.setPrevCabin(null);
                   len--;
                   return temp;
               }
           }
           else if(pos == len-1)
           {
               Cabin temp = Caboose;
               Caboose = Caboose.getPrevCabin();
               Caboose.setNextCabin(null);
               len--;
               return temp;
           }
           else
           {
               Cabin temp = Front;
               int ind = 0;
               while(ind < pos )
               {
                   temp = temp.getNextCabin();
                   ind++;
               }
               Cabin next = temp.getNextCabin();
               Cabin prev = temp.getPrevCabin();
               prev.setNextCabin(next);
               next.setPrevCabin(prev);
               len--;
               return temp;
           }
       }
       return null;
   }
   //get a cabin at particualar position
   public Cabin getCabin(int pos)
   {
       Cabin temp = Front;
       int ind = 0;
       while(ind < pos)
       {
           temp = temp.getNextCabin();
           ind++;
       }
       return temp;
   }
   //method that adds the cabin after the previous
   public void addCabinAfter(Cabin node,Cabin prev)
   {

       if (prev != null)
       {
           node.setNextCabin(prev.getNextCabin());
           prev.setNextCabin(node);
       }
       else
       {
           node.setNextCabin(Front);
           Front = node;
       }
       node.setPrevCabin(prev);
       if(node.getNextCabin() != null)
       {
           node.getNextCabin().setPrevCabin(node);
       }
   }
   //method that removes the given node
   void remove(Cabin node)
   {
       if (node.getPrevCabin()!=null)
       {
           node.getPrevCabin().setNextCabin(node.getNextCabin());
       }
       else
       {
           Front = node.getNextCabin();
       }

       if (node.getNextCabin()!=null)
       {
           node.getNextCabin().setPrevCabin(node.getPrevCabin());
       }
       else
       {
           Caboose = node.getPrevCabin();
       }
       node.setPrevCabin(null);
       node.setNextCabin(null);
   }
   //method that swaps the two positions given
   public void swap(int pos1,int pos2)
   {
       if(pos1 < len && pos2 < len)
       {
           Cabin first,second;

           if(pos1 > pos2)
           {
               int tempp = pos1;;
               pos1 = pos2;
               pos2 = tempp;
           }
           first = getCabin(pos1);
           second = getCabin(pos2);

           if (first == second) return;

           Cabin firstPrev = first.getPrevCabin();
           Cabin secondPrev = second.getPrevCabin();

           if (firstPrev == second)
           {
               removeCabin(pos1);
               addCabinAfter(first, secondPrev);
           }
           else if (secondPrev == first)
           {
               removeCabin(pos2);
               addCabinAfter(second,firstPrev);
           }
           else
           {
               removeCabin(pos1);
               removeCabin(pos2);
               addCabinAfter(first,secondPrev);
               addCabinAfter(second,firstPrev);
           }

       }
   }

   public String toString()
   {

       Cabin temp = Front;
       if(temp == null)
       {
           return "No Cabins in train";
       }
       String res = "";
       while(temp!=null)
       {
           res += temp.getCabinType();
           temp = temp.getNextCabin();
           if(temp!=null)
           {
               res += ", ";
           }
       }
       res +="\n";
       return res;
   }
}

//Main.java
class Main
{
   public static void main(String [] args)
   {
       Train train = new Train();
       train.toString();
       train.addCabin("Tanker");
       train.addCabin("Passenger1");
       train.addCabin("Passenger2");
       train.addCabin("Bananas");
       train.addCabin("Monkeys");

       System.out.println("Printing Cabins after Insertion");
       System.out.println(train.toString());

       System.out.println("Printing Cabins after Removal");
       train.removeCabin();
       System.out.println(train.toString());

       System.out.println("Printing Cabins after Removal");
       train.removeCabin(2);

       train.swap(1,2);
       System.out.println("Printing Cabins after Swapping");
       System.out.println(train.toString());

       train.addCabin("Monkeys Madness",0);
       System.out.println("Printing Cabins after Adding Monkeys Madness to the Front");
       System.out.println(train.toString());
   }
}
