Design an E/R diagram to model the following information about cars, rental agencies, and drivers. Drivers...

Design an E/R diagram to model the following information about cars, rental agencies, and drivers. Drivers reserve cars from rental agencies. A car is uniquely distinguished by its VIN number, and has a model name and color. A rental agency is uniquely distinguished by its name, and has an address. A driver is uniquely distinguished by his/her SSN, and has a name, address, license registration number, and age. A driver can reserve any number of cars, and each of these cars could be reserved through different rental agencies. Any given car is rented through a unique rental agency (which presumably owns the car). Every reservation is for a unique car, handled by a unique rental agency, and can list up to 10 (designated) drivers. However, a reservation must have at least one driver.

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

ERD has been designed for car rental by agencies to drivers scenario

The Entities and their relationships identified are

  1. Car Rental Agency ( Rental_Agency_ID is the primary key)
  2. Car (VIN is the primary key and Rental_Agency_ID is the foreign key referencing Car Rental Agency )
  3. Driver (SSN is the primary key)
  4. Car Reservation (Reservation_ID is the primary key while Rental_Agency_ID, SSN, VIN are foreign keys referencing Car Rental agency , Driver and car entities )
  5. Many rental agencies allow many reservations as many to many relatiohnsip
  6. One rental agency owns many cars as one to many relationship
  7. One car can be reserved by a driver at one particular date and time as one to one relationship
  8. Many cars has many reservations as many to many relationship
  9. One driver may reserve many cars from many rental agencies on different dates or same date when one trip is completed in a few hours or in a half day as one to many relationship

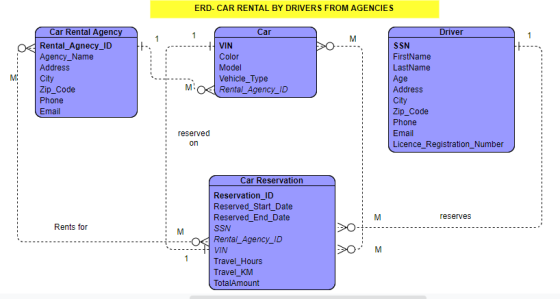

The ERD is below
