Draw and label the titration curve of 50ml of 1.8 M C2H8N2 with .4 M HCl....

Draw and label the titration curve of 50ml of 1.8 M C2H8N2 with .4 M HCl. Find the pH and pKa values at the different points on the graph. kb1=5.15E-4 kb2=3.66E-7

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

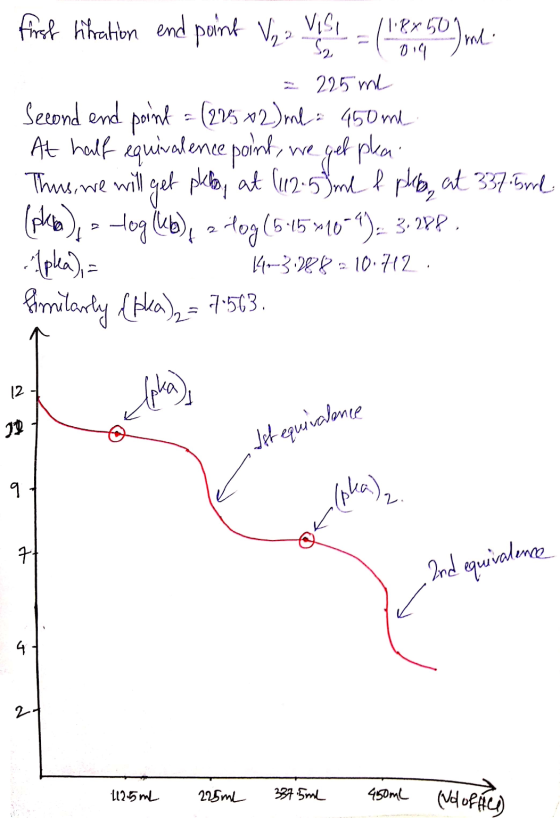

The answer is given in the attachment.
