Given wRc = 0.00058 and Vin = 2, calculate Vout where Vout =( (wRc)/(wRc-j) ) *...

Question

Question

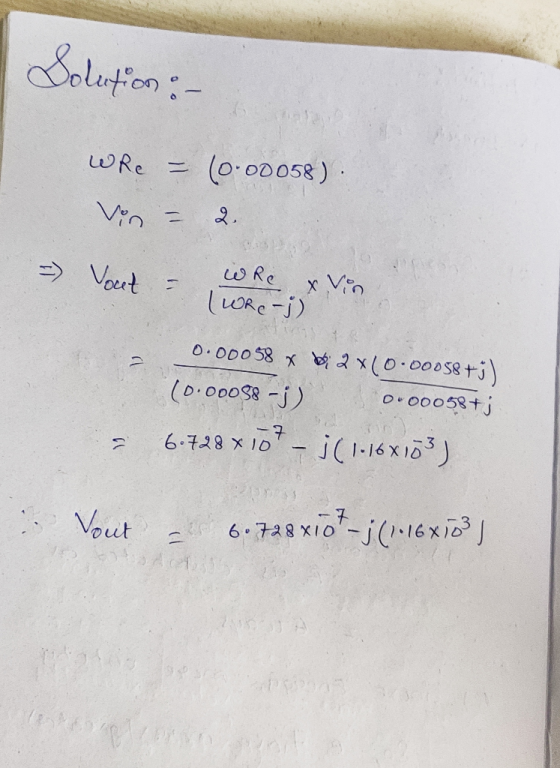

Given wRc = 0.00058 and Vin = 2, calculate Vout where Vout =( (wRc)/(wRc-j) ) * Vin using the complex conjugate

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Assuming that Vin is a 1 Volt amplitude sinusoid at 1000FHz and zero phase, calculate Vout...

Assuming that Vin is a 1 Volt amplitude sinusoid at 1000FHz and zero phase, calculate Vout of the following voltage divider: (be sure to rationalize j to the numerator) 0.01 uf AC Voltage vin out 15K out
Given Vin= 10 cos(200t). What is the steady state output Vout

Given Vin= 10 cos(200t). What is the steady state output Vout State your answer in the rectangular form Real + j Imaginary.
2. Consider the circuit given below. Plot the magnitude of Vout/Vin for the following frequencies...

2. Consider the circuit given below. Plot the magnitude of Vout/Vin for the following frequencies (rad/s): 1000, 2000, 4000, 4470, 5000, 7000. Comment on what makes 4470 rad/s special. (10 pts) Vout 5 mH 10 μF 1Ω in sine 2. Consider the circuit given below. Plot the magnitude of Vout/Vin for the following frequencies (rad/s): 1000, 2000, 4000, 4470, 5000, 7000. Comment on what makes 4470 rad/s special. (10 pts) Vout 5 mH 10 μF 1Ω in sine

Sketch the output Vout for the given Vin in the right for (a) RC-100 us and...

Sketch the output Vout for the given Vin in the right for (a) RC-100 us and (b) RC-10 ms. Vin Vout 1ms

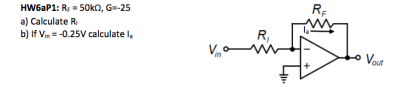

a) Calculate RI b) If Vin- -0.25V calculate la 1:a in Vout

a) Calculate RI b) If Vin- -0.25V calculate la 1:a in Vout
Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VE...

Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VEE Sketch the output Vout of the following circuits as a function of Vin. Mark and expressx- and y- intercepts in terms of parameters given in the drawing. (Hint: voltage divider) Vin Vref-AW R2 Vout VEE

2. Sketch Vout VS Vin and Vout if Vin-10sin(2TT60t) for each of the following circuits. You may a...

2. Sketch Vout VS Vin and Vout if Vin-10sin(2TT60t) for each of the following circuits. You may assume that the forward diode drops for the diodes equals zero Vout s v out Vin 5 V Vout out 3. Repeat problem 2 but with forward diode drops equal to 0.7 V 4. What are the primary mechanisms for current flow in a. A forward biased diode. b. A reverse biased diode not in breakdown. c. A reverse biased diode in breakdown...
Write a network function for given schematic Given H(w)=Vin(w)/Vout(w) TO

Write a network function for given schematic Given H(w)=Vin(w)/Vout(w) TO
(10) A Schmitt trigger is used to digitize a sinusoidal signal 6. Given that if Vin and 0.55Vo, then Vout-V if Vin0.5Vo...

(10) A Schmitt trigger is used to digitize a sinusoidal signal 6. Given that if Vin and 0.55Vo, then Vout-V if Vin0.5Vo, then Vout 0 Plot the behavior of the Schmitt sensor above for a cosine wave with maximum amplitude of Vo, (Vpeak-to-peak 2Vo) for two full cycles (2T where T is the arbitrary period) Assume zero offset and zero phase shift for the cosine wave. Identify key points on the graph. (10) A Schmitt trigger is used to digitize...

Problem 5: (20 points) Given the following circuit VIN L Vout R a) Write the loop...
