Question

In the physics laboratory, Oscar measured the resistance between his hands to be 2.50 kΩ. Being...

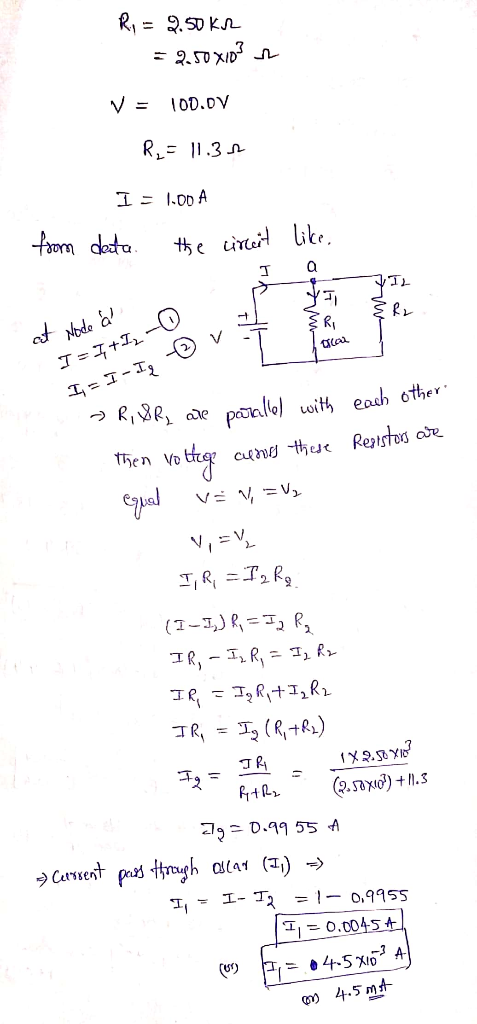

In the physics laboratory, Oscar measured the resistance between his hands to be 2.50 kΩ. Being curious by nature, he then took hold of two conducting wires that were connected to the terminals of an emf with a terminal voltage of 100.0 V. If one of the conducting wires is grounded and the other has an alternative path to ground through a 11.3-Ω resistor (so that Oscar and the resistor are in parallel), how much current would pass through Oscar if the maximum current that can be drawn from the emf is 1.00 A?

0 0
Add a comment Improve this question Transcribed image text
