Write a reflection on how capacitors and inductors affect the behavior of circuits that are driven by sinusoidal voltages and current. Describe what capacitors and inductor are and what they do. And describe how they affect circuits.
Capacitor:-
A capacitor is a device consisting of two conducting "plates" separated by an insulating material. ... The capacitance C of a capacitor separating charges +Q and −Q, with voltage V across it, is defined as C=QV
Capacitors are widely used as parts of electrical circuits in many common electrical devices. Unlike a resistor, a capacitor does not dissipate energy. Instead, a capacitor stores energy in the form of an electrostatic field between its plates.
In effect, the current "sees" the capacitor as an open circuit. ... Thus, a capacitor lets more current flow as the frequency of the source voltage is increased. Capacitive reactance. As we've seen, AC current can flow through a circuit with a capacitance.

Inductor:-
An inductor, also called a coil, choke, or reactor, is a passive two-terminal electrical component that stores energy in a magnetic field when electric current flows through it. ... As a result, inductors oppose any changes in current through them.

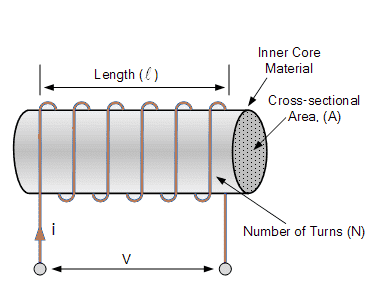

An inductor is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy. Basically, it uses a conductor that is wound into a coil, and when electricity flows into the coil from the left to the right, this will generate a magnetic field in the clockwise direction
An inductor is a passive electronic component which is capable of storing electrical energy in the form of magnetic energy. Basically, it uses a conductor that is wound into a coil, and when electricity flows into the coil from the left to the right, this will generate a magnetic field in the clockwise direction
Effects of inductance.
As the amount of inductance in an AC circuit increases, so will
the amount by which the current lag
s the voltage. The amount of
lag is measured in electrical degrees.
Write a reflection on how capacitors and inductors affect the behavior of circuits that are driven...
Three driven LC circuits are made with the same capacitor but different inductors. The figure shows the current of each of the three circuits as a function of time. Rank the three inductances according to the value of their inductance.
How capacitors and inductors can make voltages out of phase from the original signal?
Learning Goal: To practice Problem-Solving Strategy 30.1: Inductors in Circuits.A circuit has a 3.9 battery connected inseries with a switch. When the switch is closed, the battery powers two paths in parallel, one of which has a resistor of resistance = 90 in series with an inductor of inductance = 1.3×10−2 , while the other has a resistor of resistance = 430 . What is the current supplied by the battery at a time = 0.3 after the switch is...
please answer all questions
FIGURE 5.4 Resistive Circuit. Source: Brian Dean Part C: Capacitors and Inductors in DC circuits Starting from the voltage-current relationship of capacitors and inductors, answer the following questions: 1. What is the current i, in Figure 5.5? 2.5V 2. Calculate the voltage V FIGURE 5.5: RC circuit in DC. Source: Brian Dean 3. Calculate the voltage Vc 4. What is the voltage V, in Figure 5.6? + VR 2.5V 5. Calculate the voltage Va FIGURE 5.6:RL...
During this term, you have studied inductors and capacitors, as well as the basics of ac, test equipment, and the effects of reactance, impedance, and resonance. Based on that knowledge and experimentation, answer the following practical application questions. Describe the physical characteristics of a basic inductor. Describe the physical characteristics of a basic capacitor. If an oscilloscope shows a 20 Vpp sine wave, how would you determine the rms value? Calculate what that Vrms value would be. What is the...
1. Circuit A contains a battery, a switch, and a resistor connected in series. Circuit B contains a battery, a switch, an inductor, and a resistor connected in series. Initially, the switch is closed in both circuits. How does the behavior of the current in circuit B compare with that in circuit A as both switches are opened at the same time? a. The current in circuit B decreases more slowly than that for circuit A since the inductor acts...
Alternating Current Circuits Containing Inductance Cirele the letter beside the correct answer Three inductors connected in parallel have inductive reactances of 24 Ω, 48 Ω, and 36 Ω. If the inductors are connected to a 60-He line, wha is the sotal inductance of the eircui? A. 00294 11 , 0.34611 C 0 0579 11 D. 0642 11 I. What is the relationship of current and voltage in a inductive circuit The currene lags the voltage by 90 The current leads...
Anything would be help please help me
OBJECTIVES Study the behavior of capacitors while charging Learn how changing the values of R or C in a series RC circuit affects the charging time Learn the behavior of capacitor and inductor in a DC circuit 1. 2. 3. EQUIPMENT Breadboard, Multimeter, DC power supply, Oscilloscope, Resistor, Capacitor (values will be provided in lab) Connect the given circuit and notice how the capacitor charges Measure the voltage across the resistor, and across...
6. Please answer the following questions regarding electrical circuits. a) Describe, using plots, diagrams and/or words (not equations) how: i. resistance and reactance are different ii. inductors and capacitors store energy. b) When a circuit is said to be 'impedance matched', how does the resistance of that circuit change and why? c) Is current the same at all nodes in a series circuit? Defend both the'yes' and 'no position with two reasons each.
(2 points) Two driven inductors A R = 1 kΩ resistor, a L1 = 20 mH inductor and a L2 28 mH inductor are connected in series. A funtion generator drives the circuit with a 5 Vpp variable frequency sine wave. (a) What is the equivalent impedance Zeq of this circuit? O A. R +jwLIL2/(L1+ L2) E. None of these (b) For what angular frequency does |Zoq v2 R? 20833.3 radians/sec (c) What is the peak-to-peak value of the voltage...
