A light rigid rod is 76.7 cm long. Its top end is pivoted on a low-friction...

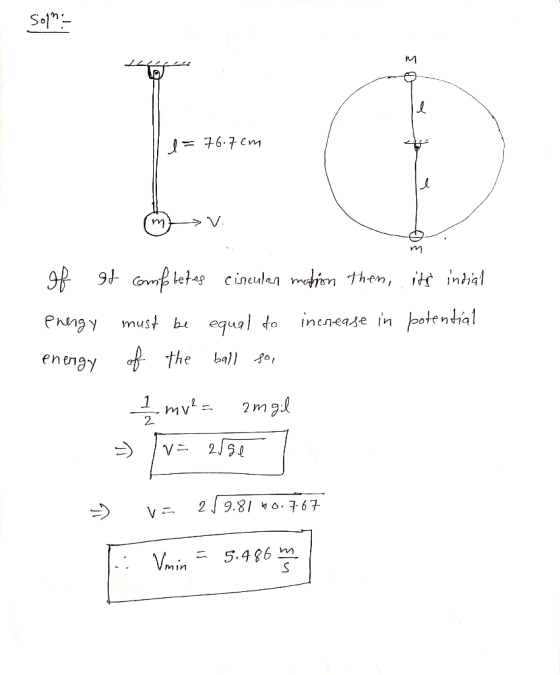

A light rigid rod is 76.7 cm long. Its top end is pivoted on a low-friction horizontal axle. The rod hangs straight down at rest with a small massive ball attached to its bottom end. You strike the ball, suddenly giving it a horizontal velocity so that it swings around in a full circle. What minimum speed at the bottom is required to make the ball go over the top of the circle
Homework Answers
Add Answer to:
A light rigid rod is 76.7 cm long. Its top end is pivoted on a
low-friction...
8.4 A light, rigid rod is 62.8 cm long. Its top end is pivoted on a...
8.4 A light, rigid rod is 62.8 cm long. Its top end is pivoted on a frictionless horizontal axle. The rod hangs straight down at rest with a small, massive ball attached to its bottom end. You strike the ball, suddenly giving it a horizontal velocity so that it swings around in a full circle. What minimum speed at the bottom is required to make the ball go over the top of the circle? ________________m/s
A 79g , 40-cm-long rod hangs vertically on a frictionless, horizontal axle passing through its center....
A 79g , 40-cm-long rod hangs vertically on a frictionless, horizontal axle passing through its center. A 15g ball of clay traveling horizontally at 2.0m/s hits and sticks to the very bottom tip of the rod. To what maximum angle, measured from vertical, does the rod (with the attached ball of clay) rotate?
A massless rigid rod whose length L = 21.0 cm has a ball of mass m...
A massless rigid rod whose length L = 21.0 cm has a ball of mass
m = 0.079 kg attached to one end (see Figure). The other end is
pivoted in such a way that the ball will move in a vertical circle.
The system is launched from the horizontal position A with an
initial downward speed v0. The ball just reaches point D
and then stops. Calculate v0.
What is the tension in the rod at B?
· Rod...
A long, uniform rod of mass 20.00 kg is pivoted at its top end. It is...
A long, uniform rod of mass 20.00 kg is pivoted at its top end. It is lifted a small angle and let go. When it reaches the very bottom of its swing, it is moving with angular speed ?o , and it has collision with a block of mass 3.000 kg that was originally at rest on a frictionless surface. After the collision the rod is seen to continue spinning in the same direction at 17.66 rad/s. As a result...
A 76 g , 33-cm-long rod hangs vertically on a frictionless, horizontal axle passing through its...
A 76 g , 33-cm-long rod hangs vertically on a frictionless, horizontal axle passing through its center. A 13 g ball of clay traveling horizontally at 2.7 m/s hits and sticks to the very bottom tip of the rod. To what maximum angle, measured from vertical, does the rod (with the attached ball of clay) rotate? Please show all steps!
A slender, uniform metal rod of mass M and length l is pivoted without friction about an axis through its midpoint and p...
A slender, uniform metal rod of mass M and length l is pivoted
without friction about an axis through its midpoint and
perpendicular to the rod. A horizontal spring, assumed massless and
with force constant k, is attached to the lower end of the rod,
with the other end of the spring attached to a rigid support.
(Figure 1)
2. Find the torque τ due to the spring. Assume that θ is small
enough that the spring remains effectively horizontal...
Review A 76 g , 40-cm-long rod hangs vertically on a frictionless, horizontal axle passing through...
Review A 76 g , 40-cm-long rod hangs vertically on a frictionless, horizontal axle passing through its center. A 11 g ball of clay traveling horizontally at 2.2 m/s hits and sticks to the very bottom tip of the rod. A) To what maximum angle, measured from vertical, does the rod (with the attached ball of clay) rotate? Express your answer to two significant figures and include the appropriate units.
11. A uniform thin rod of length L and mass M, pivoted at one end as...
11. A uniform thin rod of length L and mass M, pivoted at one end as shown above, is held horizontal and then released from rest. Ignore all effects due to friction. (a) Find the angular speed of the rod as it sweeps through the vertical position. solution: 、13g / L (b) Find the force exerted on the rod by the pivot at this instant. solution Mg (c) Starting from the horizontal position, what initial angular speed would be needed...
The assembly shown in the figure below consists of a thin rod of length l = 23.9 cm and mass m = 1.20 kg with a solid ball of diameter d = 10.0 cm and mass M = 2.00 kg attached to its top.
The assembly shown in the figure below consists of a thin rod of length l = 23.9 cm and mass m = 1.20 kg with a solid ball of diameter d = 10.0 cm and mass M = 2.00 kg attached to its top. The assembly is free to pivot about a frictionless axle through the bottom of the rod. The assembly is initially vertical and at rest when it starts to rotate clockwise. (a) After the combination rotates through 90...
#3 3. A gun tackle consits of a light rope and two ideal pulleys. One end...
#3
3. A gun tackle consits of a light rope and two ideal pulleys. One end of the rope is attached to the ceiling and wrapped around both pulleys, as depicted, while the other end is fastned to mass A. Mass B hangs off the pulley that is free to move. The second pulley is attached to the ceiling. Initially the blocks, which have the same mass, are suspended at the same distance from the ceiling and are subsequently released...
A massless rigid rod whose length L = 21.0 cm has a ball of mass
m = 0.079 kg attached to one end (see Figure). The other end is
pivoted in such a way that the ball will move in a vertical circle.
The system is launched from the horizontal position A with an
initial downward speed v0. The ball just reaches point D
and then stops. Calculate v0.
What is the tension in the rod at B?
· Rod...
A slender, uniform metal rod of mass M and length l is pivoted
without friction about an axis through its midpoint and
perpendicular to the rod. A horizontal spring, assumed massless and
with force constant k, is attached to the lower end of the rod,
with the other end of the spring attached to a rigid support.
(Figure 1)
2. Find the torque τ due to the spring. Assume that θ is small
enough that the spring remains effectively horizontal...
11. A uniform thin rod of length L and mass M, pivoted at one end as shown above, is held horizontal and then released from rest. Ignore all effects due to friction. (a) Find the angular speed of the rod as it sweeps through the vertical position. solution: 、13g / L (b) Find the force exerted on the rod by the pivot at this instant. solution Mg (c) Starting from the horizontal position, what initial angular speed would be needed...
#3
3. A gun tackle consits of a light rope and two ideal pulleys. One end of the rope is attached to the ceiling and wrapped around both pulleys, as depicted, while the other end is fastned to mass A. Mass B hangs off the pulley that is free to move. The second pulley is attached to the ceiling. Initially the blocks, which have the same mass, are suspended at the same distance from the ceiling and are subsequently released...
