You measure the restance of three resistors in series to be 10,000 +/- 1 ohm, 2200...

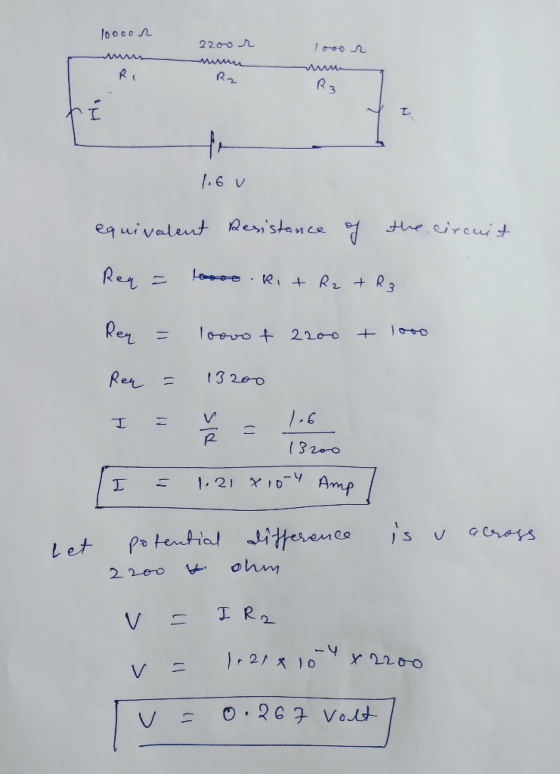

You measure the restance of three resistors in series to be 10,000 +/- 1 ohm, 2200 +/- 1 ohm, and 1000 +/- 1 ohm, and the voltage across your battery to be 1.600 +/- 0.001 V. Calculate what the potential difference across the 2200 ohm resistor should be. Give your answer in volt.
Homework Answers
Add Answer to:
You measure the restance of three resistors in series to be
10,000 +/- 1 ohm, 2200...
(show equations used) A 12.0 V battery is hooked up to two resistors in series: a...
(show equations used) A 12.0 V battery is hooked up to two resistors in series: a 1000 ohm resistor and a 2200 ohm resistor. A) Calculate the voltage across each resistor. B) Calculate the current through each resistor. C) What is the total resistance of the circuit?
Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected...
Three resistors, R1 = 3.00 ohm, R2 = 4.00 ohm, R3 = 5.00 ohm, are connected in series. With what single equivalent resistance Req could the series combination be replaced? If the series combination is connected to a 12.0 V battery, what is the voltage across each resistor?
A 40 ohm resistor and a 60 ohm resistor are connected in series to a 12...
A 40 ohm resistor and a 60 ohm resistor are connected in series to a 12 volt battery. A. What is the voltage difference across each resistor?
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment...
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment board and accompanying bundle of connecting wires. PROCEDURE: 1. Resistors in series: Connect the circuit shown in Fig. 1. Using circuit theory (Ohms Law in conjunction with the predicted procedure for combining resistors in series), calculate the expected current in or through the three resistors in series and the expected voltage across each of the three resistors. After the instructor has approved your connections,...
You have a 4 ohm resistor and a 6 ohm resistor connected in series with a...
You have a 4 ohm resistor and a 6 ohm resistor connected in series with a 12.0 volt battery. What is the voltage drop across the 6 ohm resistor (in volts)?
show work for each individual resister for a and b A 12.0 V battery is hooked...
show work for each individual resister for a and b A 12.0 V battery is hooked up to two resistors in series: a 1000 Ohm resistor and a 2200 Ohm resistor. (a) Calculate the voltage across each resistor. (b) Calculate the current through each resistor. (c) What is the total resistance of the circuit?
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Imagine that you connect a 10 ohm resistor and a 1 megaohm resistor in series to...
Imagine that you connect a 10 ohm resistor and a 1 megaohm resistor in series to a battery. If you use a voltmeter that has a 1 megaohm internal resistance to measure the voltage across each resistor. Which measurement will affected most by the internal resistance of the ohm meter? the voltage across the 10 ohm resistor. the voltage across the 1 megaohm resistor. both measurement will be affected the same.
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel....
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
You connect five identical resistors in series to a battery whose EMF is 12.0 V and...
You connect five identical resistors in series to a battery whose EMF is 12.0 V and whose internal resistance is negligible. You measure the current that the circuit draws from the battery and find 0.981 A. What are the resistance of each resistor and the potential difference across each resistor?
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment board and accompanying bundle of connecting wires. PROCEDURE: 1. Resistors in series: Connect the circuit shown in Fig. 1. Using circuit theory (Ohms Law in conjunction with the predicted procedure for combining resistors in series), calculate the expected current in or through the three resistors in series and the expected voltage across each of the three resistors. After the instructor has approved your connections,...
Procedure 1: Measure Voltage and Current for Resistors in Series One 100-Ω Resistor Item Value voltage across voltage source 3.174 V measured current through circuit |0.032 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-S2 resistor 3.150 V 100 Ω Two 100-Ω Resistors in Series Item Value voltage across voltage source3.198 V measured current through circuit 0.017 A resistance of the circuit calculated current through circuit current 90 difference voltage across 100-2 resistor 1.582...
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
