Consider four identical bulbs connected in series to a battery. A fifth bulb is then connected...

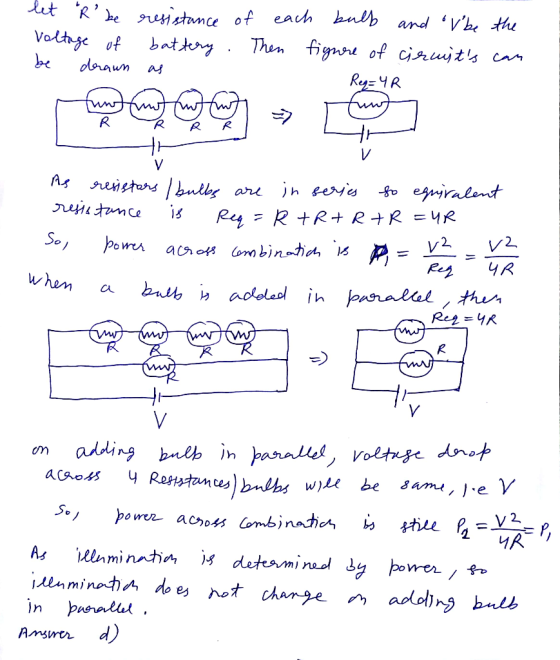

Consider four identical bulbs connected in series to a battery. A fifth bulb is then connected in parallel with the first four. What will this additional connection do? Please explain why.
a) Increase the illumination produced by bulbs connected in series
b) Decrease the illumination produced by bulbs in series
c) Tt will change the illumination shomehow, but we need to know the voltage on battery and resistances of bulbs to answer
d) Leave the illumination produced by bulbs in series unchanged
Homework Answers
Add Answer to:
Consider four identical bulbs connected in series to a battery.
A fifth bulb is then connected...
Compare a 24-volt battery that is connected to four 25-watt light bulbs in parallel vs one...
Compare a 24-volt battery that is connected to four 25-watt light bulbs in parallel vs one that is connected in series. For both connections: a. Draw a diagram of these circuits. b. Find the voltage across each light bulb. c. Find the current in each light bulb. d. Find the resistance in each light bulb.
Two identical bulbs of power P are connected in parallel. The third identical bulb of power...
Two identical bulbs of power P are connected in parallel. The third identical bulb of power P is connected in series to this combination. What is the power dissipated in this circuit in terms of P?
A Investigation #11: Non-Identical Bulbs in Series and Parallel All of the circuits you have investigated...
A Investigation #11: Non-Identical Bulbs in Series and Parallel All of the circuits you have investigated so far have involved identical bulbs. If two bulbs are identical and one bulb is brighter, then the brighter bulb must have a larger current thru it. Furthermore, the larger current must be caused by a larger potential difference. In this investigation, you will study circuits for which the bulbs are not identical. We will illustrate that two Spherical bulbs are not identical by...
Four identical bulbs are connected to a battery as shown in the figure. Then the fourth...
Four identical bulbs are connected to a battery as shown in the figure. Then the fourth bulb is removed. BEFORE the fourth bulb is removed, how does the brightness in bulbs 1, 2, 3, and 4 compare? 3 1 3 2 2 Before After 01 > 2>3 > 4 O 1 > 2> 3 = 4 O 1 = 2 = 3 = 4 01 > 2 = 3 = 4 O 1 = 2 > 3 = 4 Submit...
A 24-volt battery is connected to four 25-watt light bulbs in parallel. a. Draw a diagram...
A 24-volt battery is connected to four 25-watt light bulbs in parallel. a. Draw a diagram of this circuit b. Find the voltage across each light bulb c. Find the current in each light bulb d. Find the resistance in each light bulb
Consider the three identical light bulbs shown in the circuit. Bulbs B and C are wired...
Consider the three identical light bulbs shown in the circuit. Bulbs B and C are wired in series with each other and are wired in parallel with bulb A. When the bulbs are connected to the battery as shown, how does the brightness of each bulb compare to the others? Don't forget to write your explanation on your scratch work and upload at the end of this exam for partial credit. Bulbs B and Care equally bright, but bulb A...
Please help 3. The circuit below contains four identical bulbs and an ideal 1.5 volt battery...
Please
help
3. The circuit below contains four identical bulbs and an ideal 1.5 volt battery B. a. Rank the brightness's of all four bulbs in the circuit. If any of the bulbs have equal brightness, state that explicitly. Explain your reasoning b. A voltmeter is placed across bulb D and the reading on the voltmeter is 0.6 V. What wi the voltmeter read when placed over the remaining three bulbs? Enter your answers in th space provided and explain...
a.When two resistors RA and RB are combined in series and connected to a battery it...
a.When two resistors RA and RB are combined in series and connected to a battery it is observed that the ratio of the power dissipated in RA to that dissipated in RB is equal to 10. If this arrangement is dismantled and the same two resistors connected in parallel to the same battery, what is the ratio of the power dissipated in RA to that dissipated in RB in this new circuit? b.How much energy is converted by a 12...
B E 6. Five identical lightbulbs are connected to a battery as shown above. a. Rank...
B E 6. Five identical lightbulbs are connected to a battery as shown above. a. Rank the brightness of the bulbs and explain your reasoning. b. If bulbs C and D are removed from the circuit as shown below, will the brightness of bulb A increase, decrease, or stay the same? Explain your reasoning. A c. If bulbs C and D are removed from the circuit as shown above, will the brightness of bulb B increase, decrease, or stay the...
Consider five identical light bulbs connected to a battery as shown in each of the identical...
Consider five identical light bulbs connected to a battery as shown in each of the identical circuits below in Part A. Rank the brightness of all five bulbs (A-E) from brightess to dimmest. Rank the bulbs from brightest to dimmest. To rank items as equivalent, overlap them. Rank the brightness of all five bulbs (A-E) from brightess to dimmest. Rank the bulbs from brightest to dimmest. To rank items as equivalent, overlap them. The correct ranking cannot be determined.
A Investigation #11: Non-Identical Bulbs in Series and Parallel All of the circuits you have investigated so far have involved identical bulbs. If two bulbs are identical and one bulb is brighter, then the brighter bulb must have a larger current thru it. Furthermore, the larger current must be caused by a larger potential difference. In this investigation, you will study circuits for which the bulbs are not identical. We will illustrate that two Spherical bulbs are not identical by...
Four identical bulbs are connected to a battery as shown in the figure. Then the fourth bulb is removed. BEFORE the fourth bulb is removed, how does the brightness in bulbs 1, 2, 3, and 4 compare? 3 1 3 2 2 Before After 01 > 2>3 > 4 O 1 > 2> 3 = 4 O 1 = 2 = 3 = 4 01 > 2 = 3 = 4 O 1 = 2 > 3 = 4 Submit...
Consider the three identical light bulbs shown in the circuit. Bulbs B and C are wired in series with each other and are wired in parallel with bulb A. When the bulbs are connected to the battery as shown, how does the brightness of each bulb compare to the others? Don't forget to write your explanation on your scratch work and upload at the end of this exam for partial credit. Bulbs B and Care equally bright, but bulb A...
Please
help
3. The circuit below contains four identical bulbs and an ideal 1.5 volt battery B. a. Rank the brightness's of all four bulbs in the circuit. If any of the bulbs have equal brightness, state that explicitly. Explain your reasoning b. A voltmeter is placed across bulb D and the reading on the voltmeter is 0.6 V. What wi the voltmeter read when placed over the remaining three bulbs? Enter your answers in th space provided and explain...
B E 6. Five identical lightbulbs are connected to a battery as shown above. a. Rank the brightness of the bulbs and explain your reasoning. b. If bulbs C and D are removed from the circuit as shown below, will the brightness of bulb A increase, decrease, or stay the same? Explain your reasoning. A c. If bulbs C and D are removed from the circuit as shown above, will the brightness of bulb B increase, decrease, or stay the...
Consider five identical light bulbs connected to a battery as shown in each of the identical circuits below in Part A. Rank the brightness of all five bulbs (A-E) from brightess to dimmest. Rank the bulbs from brightest to dimmest. To rank items as equivalent, overlap them. Rank the brightness of all five bulbs (A-E) from brightess to dimmest. Rank the bulbs from brightest to dimmest. To rank items as equivalent, overlap them. The correct ranking cannot be determined.
