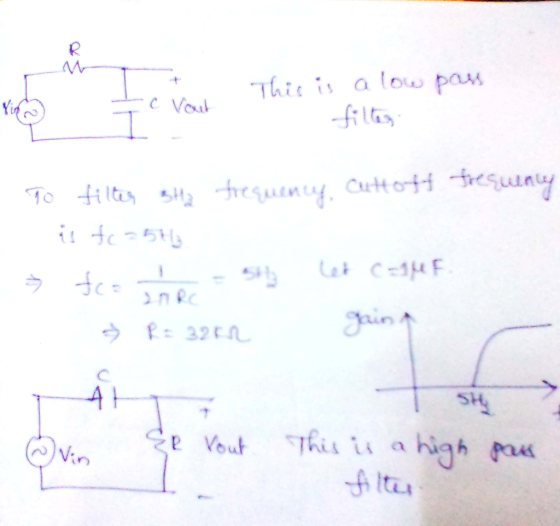

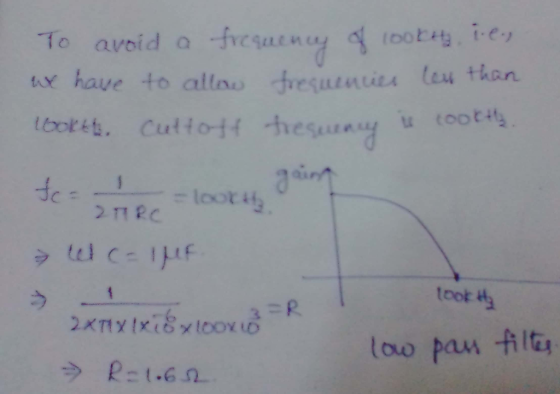

Draw a schematic for an RC Circuit that will filter out noise which exhibits a frequency of 100 kHz. What kind of filter is this low pass or high pass? What would you change for a circuit meant to filter a frequency of 5 Hz. Would this new schematic be a high pass or low pass filter?
Draw a schematic for an RC Circuit that will filter out noise which exhibits a frequency...
1. Read the laboratory supplement entitled “Frequency Response". 2. Read the remainder of this handout. 3. In Multisim, build the circuit shown in Figure 1 with C=0.22 uF and R = 2.2 k12. This circuit looks like a simple voltage divider except that one of the resistors is replaced by a capacitor. Il Figure 1: RC network. F Set up Vin to be a 1 Vpp sinusoid with 0 VDC Offset using a function generator. 2. Connect the oscilloscope in...
For the low-pass filter circuit shown in Fig 2 3k Ω 200mil in out Fig 2 3.a. Use a 2.2nF capacitor to design a high-pass filter to have a cutoff frequency of Skn Draw a schematic of your design. Show all component values and voltages c. Sketch the frequency response of the voltage gain and phase shift Magnitude dB Frequency Hz Phase Frequency Hz
For the low-pass filter circuit shown in Fig 2 3k Ω 200mil in out Fig 2...
RC Circuit
Design a passive, low-pass filter with corner frequency around 400 Hz and input impedance of at least 1k2. Ģive the component values and compute the magnitude of the output impedance at 100 Hz.
a) Design a low-pass filter using the given circuitry with a cut-off value of 1 kHz and plot the frequency response curve on the given axes 1.0 0.7 0.5 in out 0.0 101 102 103 104 10s Hz b) Design a band-pass filter using the given circuitry with a bandwidth of 500 Hz and a lower cut-off value of 100 Hz, and draw the frequency response curve. Keep all resistors at the same value (i.e. Ri-R-R3-R4). 1.0 0.7 0.5 0.0...
Draw a schematic of a low pass filter with a 100 Hz cutoff and a current limit of 10 mA for a 5 V signal.
Problem 3) (15 points) An RC filter is designed with a cutoff frequency of 100 Hz. If a low-pass first order filter is used, determine the attenuation (Attenuation %, and Attenuation(dB)) of the filtered analog signal at 50, 75 and 200 Hz. (use k -1) o Determine the order of the filter if magnitude ratio of <0.01 is needed at 200 Hz.
Problem 3) (15 points) An RC filter is designed with a cutoff frequency of 100 Hz. If a...
I want right answer
Problem Design and draw a first-order op amp-RC high-pass filter with 3-dB frequency of 10' Hz, a high-frequency input resistance of 100 k, and a high frequency-gain magnitude of 2
Learning Goal: To analyze and design a passive, first-order low-pass filter using a series RL circuit. The analysis and design will be repeated for a series RC circuit. An electrocardiogram needs to detect periodic signals of approximately 1 Hz (since the resting heart rate of a healthy adult is between 55 and 70 beats per minute). The instrument operates in an electrical environment that is very noisy with a frequency of 60 Hz. It is desirable to have a low-pass...
In the series RC circuit below, with R -6.1 k ohms& C 72.5 nF, at what angular frequency [rad/s] does the capacitor AC voltage reduce to its DC value (accurate to 1%)? C output Answer: In the series RC circuit below, with R-1.2 k ohms & C 92.8 nF, calculate the magnitude of the voltage 'gain' of the circuit (Vout/ Vsl), for a driving frequency of 0.1 kHz, to 1% accuracy. Coutput Answer For a series RLC circuit as shown...
You are taking a measurement of a signal from a sensor with high frequency noise. In order to not amplify that noise through your instrumentation system, you decide to use a RC filter with a cutoff frequency (critical frequency, fc) of 1kHz after the sensor and before the amplification. What kind of RC filter do you need? Design the RC filter. Be sure to use standard resistor and capacitor values and specify the tolerance. Show all work. Construct the circuit...
