Find the distance in nm between two slits that produces the first minimum for 420-nm violet...

Question

Question

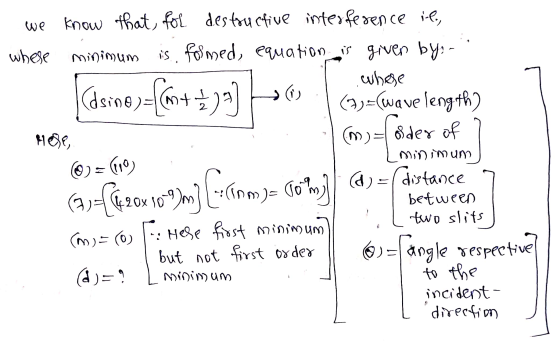

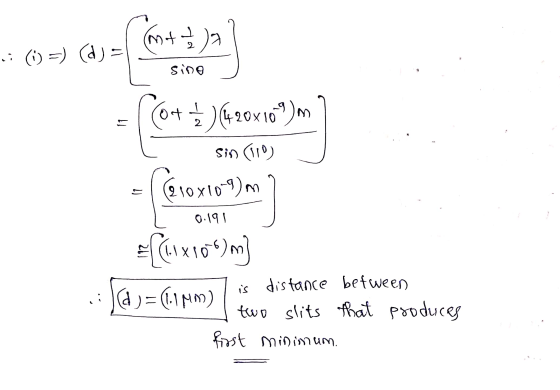

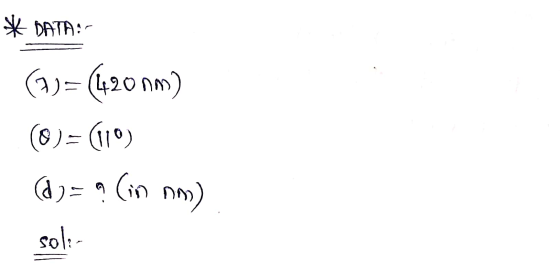

Find the distance in nm between two slits that produces the first minimum for 420-nm violet light at an angle of 11.0°.

science physics

Answer 1

Answer #1

Answer 2
