Plot the resulting convolution y(t) = -3 rect(t/2) ∗ 5 rect(t + 4) and find y(-4)

Question

Question

Plot the resulting convolution

y(t) = -3 rect(t/2) ∗ 5 rect(t + 4) and find y(-4)

engineering Electrical-Engineering

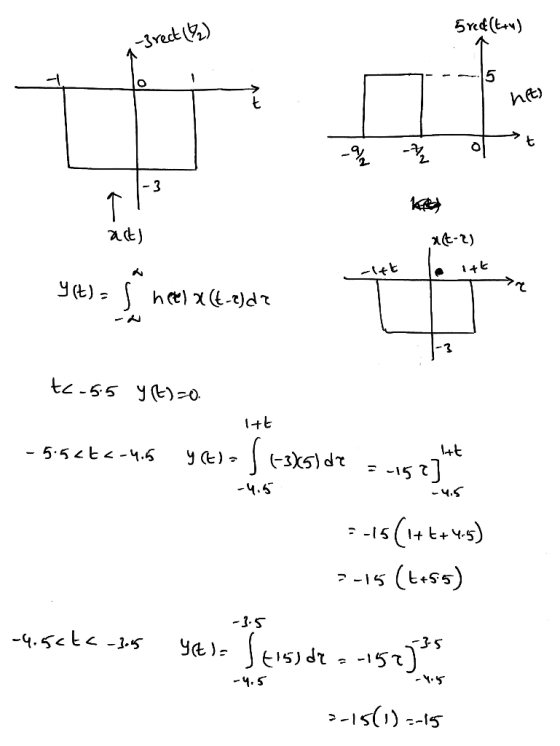

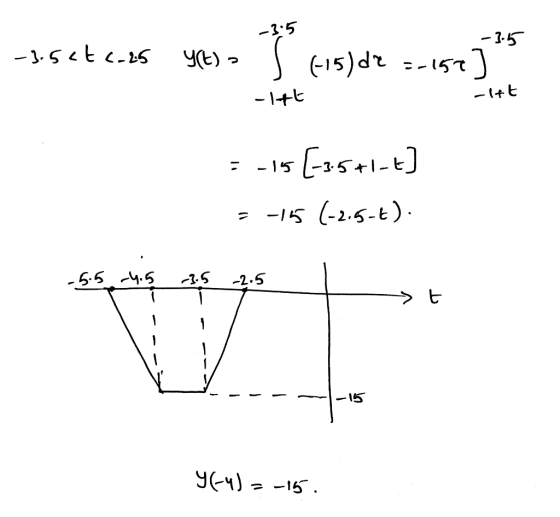

Answer 1

Answer #1

Answer 2
