The magnetic flux through a coil is given by ΦB= αt − βt^3, where α and...

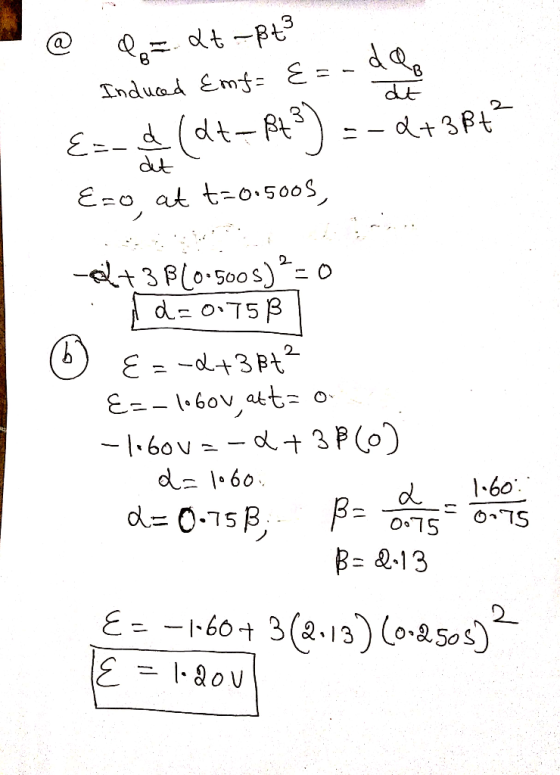

The magnetic flux through a coil is given by ΦB= αt − βt^3, where α and β are constants.
b) If the induced emf is zero at t = 0.500s, how is α related to β?
c) If the emf at t = 0 is -1.60 V, what is the emf at t = 0.250s?
