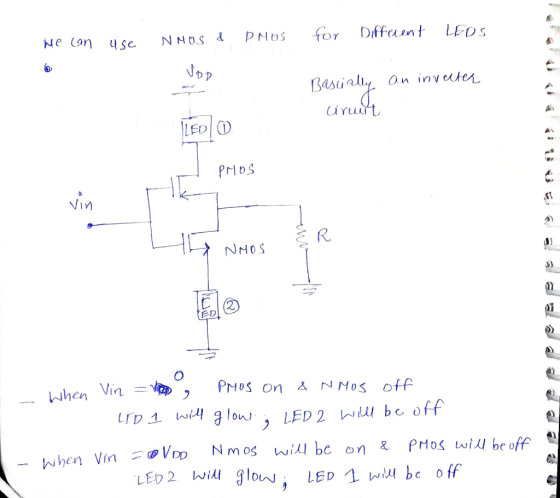

design an led driver using NMOS and PMOS. there are two LEDs, one whouod be off...
By using Arduino write a code that connects two LEDs to two push-buttons. Each button controls the state of its connected LED. The LEDs can be in one of two states: Blink-mode or Off-mode. When a button-press event is detected, its connected LED will begin blinking (turning on and off) and when a button-press is detected, its connected LED will turn off. The application should blink one of the LEDs at a rate of 1 second, and the other LED...
Design a gate (ab + cd +e)' in CMOS technology using 5 nMOS and 5 pMOS transistors. Operator ' denoted complementation.

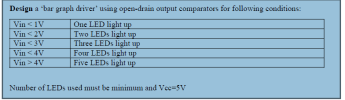

Design a 'bar graph driver' using open-drain output comparators for following conditions: Vin<2V Vin<3V Vin<4V Vin > 4V One LED light up Two LEDs light up Three LEDs light up Four LEDs light up Five LEDs light up Number of LEDs used must be minimum and Vec-5V
Design a Simple Led driver using transistors .
Physical structure of MOSFET (both NMOS and PMOS) Operation of MOSFET in cut-off, in triode and in saturation mode MOSFET as an amplifier Please explain them.Thanks.
CMOS Design Styles Quiz Problem 1: a) What is the typical "topology" for pMOS and nMOS in digital circuitry? -pMOS Vdd to Vout, nMOS Vout to Gnd -nMOS Vdd to Vout, pMOS Vout to Gnd -pMOS Vdd to Gnd, nMOS Vin to Vout -Only use xMOS -Both transistors Vin to Vout b) How do you implement nMOS in AND functions? -series connected, with increased widths -Parallel connected, with standard widths -Series connected with half the widths -Parallel connected, alternating large...
Design an LED Roulette: Use LogicSim to design the circuit to turn on one of the ten (10) LEDs at a time and continues to cycle through all LEDs.
Design an LED Roulette: Use LogicSim to design the circuit to turn on one of the ten (10) LEDs at a time and continues to cycle through all LEDs.
Design a system, which lights twelve LEDs in a cyclic sequence. Each LED lights for three seconds then goes off. You should: i. State any assumptions made in your design. ii. Give a complete block diagram of the system. iii. Give brief explanation on how the system works.
1.) A cmos inverter can be constructed by using one enhancement type nmos and one enhancement type pmos is connected by____ placing them in series with the pmos above placing them in series with the nmos above placing then in parallel with the pmos on the left placing then in parallel with the nmos on the left 2) A PMOS with the source connected to a 10V and drain connected to ground, can be turned on by applying a gate-to-drain...
