An equimolar vapor mixture of n-pentane and n-hexane at 100 °C and 1 atm is fed...
- An equimolar vapor mixture of n-pentane and n-hexane at 100 °C and 1 atm is fed at a rate of 150 SCMH to a condenser at 40 °C where there is partial condensation of the mixture. 60% of the initial feed is condensed.
- Do a degree of freedom analysis to demonstrate that you can solve for all molar flow rates, then calculate them.

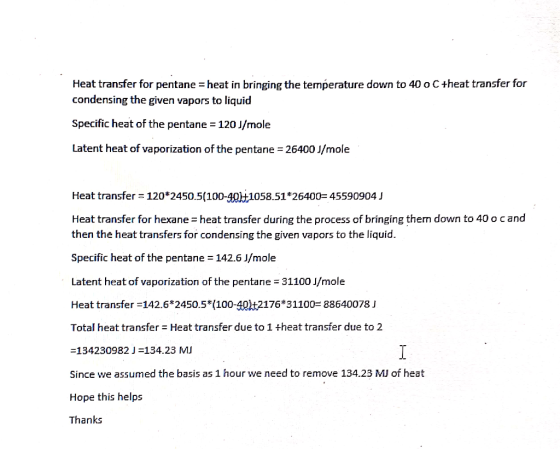

- How much heat must be transferred from the mixture in the condensation process?

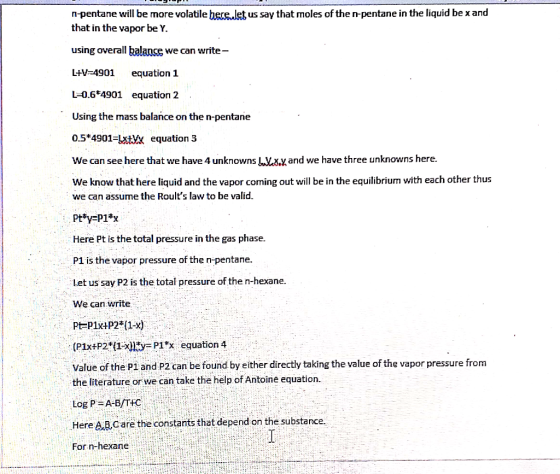

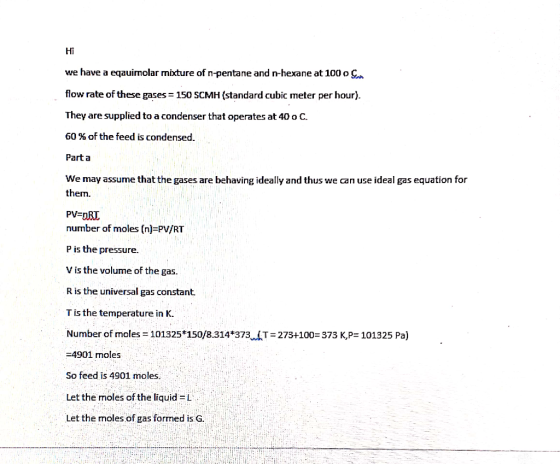

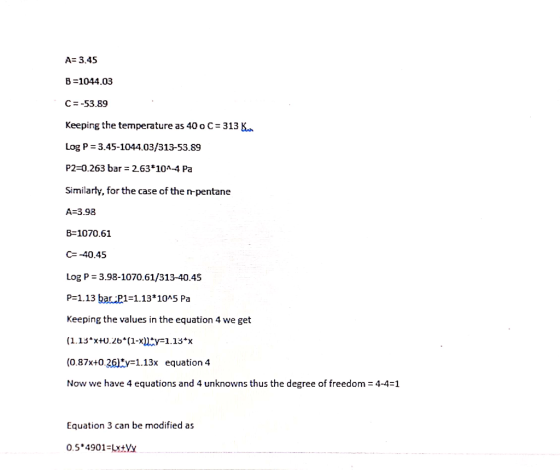

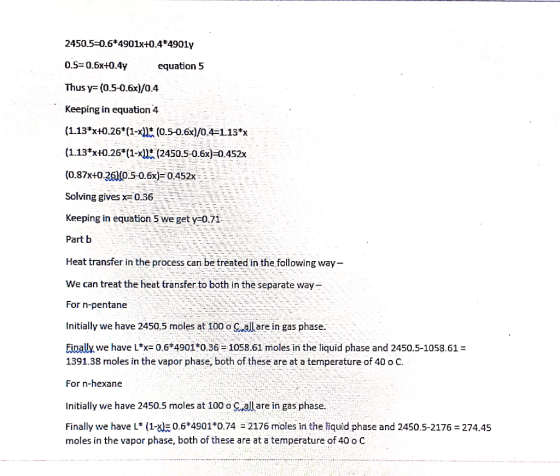

Homework Answers
