A heat engine operates in a reversible cycle consisting of the following steps: (a) Adiabatic compression...

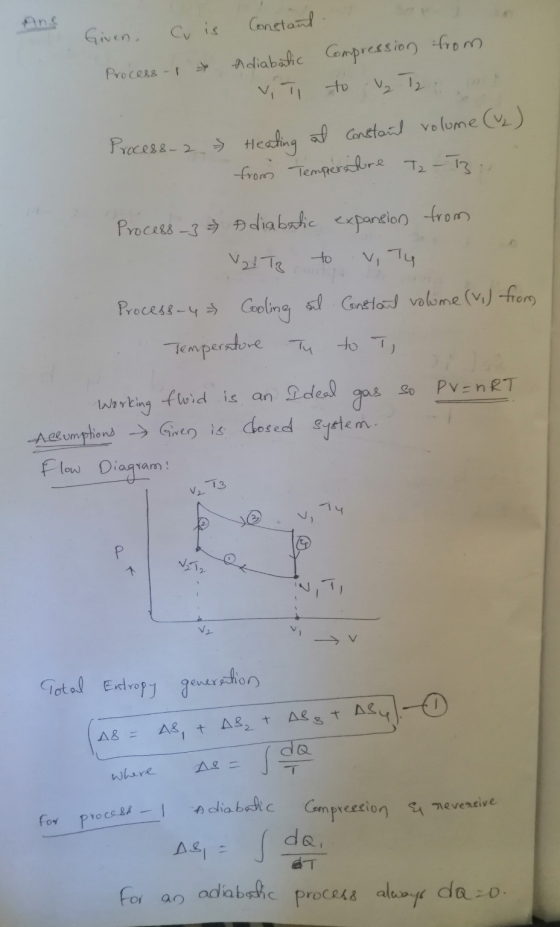

A heat engine operates in a reversible cycle consisting of the following steps:
(a) Adiabatic compression from volume V1 and T1 to volume V2 at T2

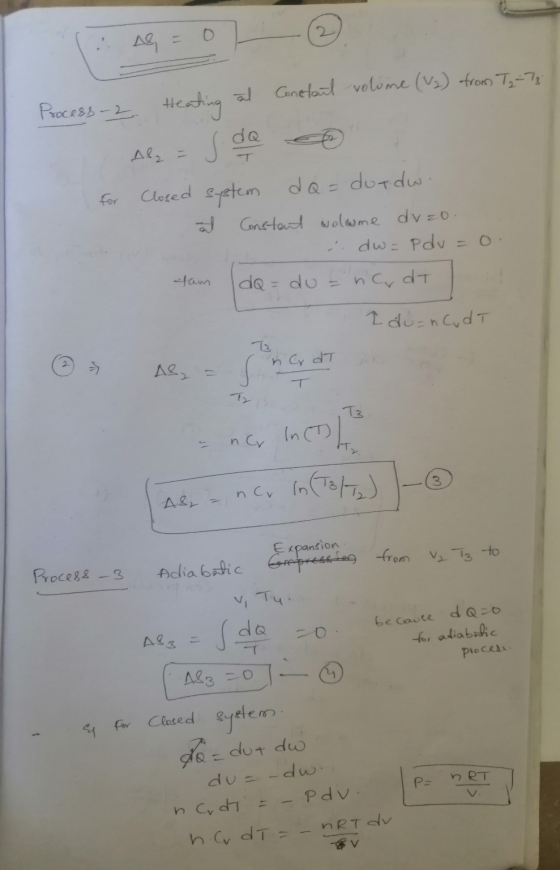

(b) Heating at constant V2 from temperature T2 to T3

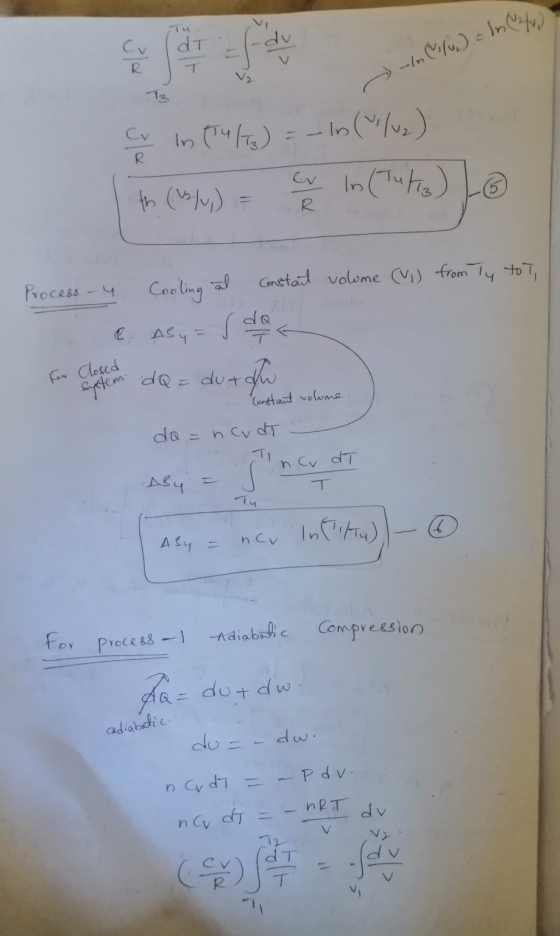

(c) Adiabatic expansion from volume V2 at T3 to volume V1 at T4
(d) Cooling at constant V1 from temperature T4 to T1

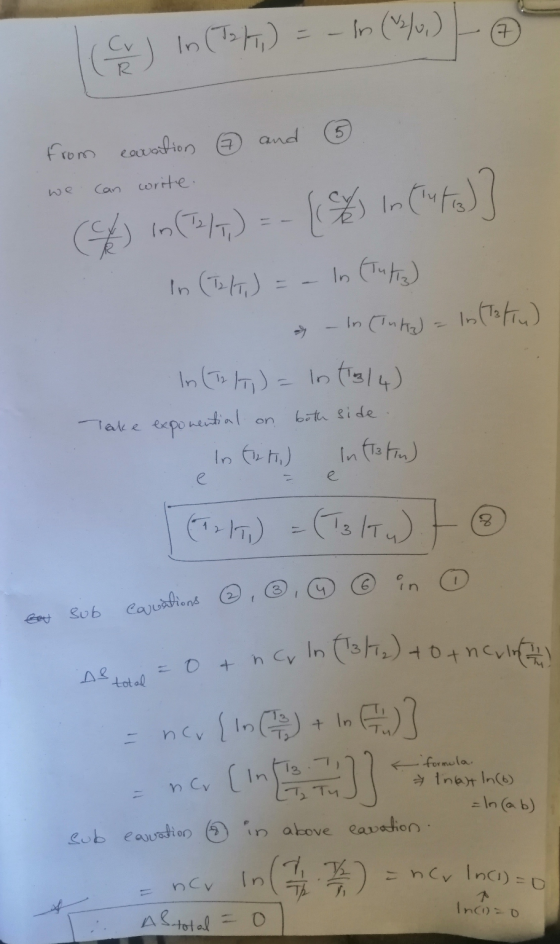

Taking the working substance to be n moles of an ideal gas for which Cv is a constant, show that ∆S = 0 for the complete cycle.
Homework Answers
Add Answer to:
A heat engine operates in a reversible cycle consisting of the
following steps:
(a) Adiabatic compression...
