A beam of particles of energy E is incident from the left on a downward step...

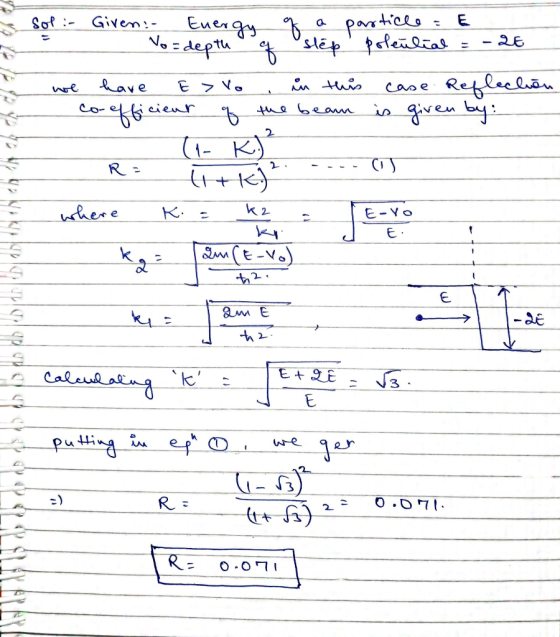

A beam of particles of energy E is incident from the left on a downward step potential of depth -2E. What is the reflection coefficient of this beam?
Homework Answers
Add Answer to:
A beam of particles of energy E is incident from the left on a
downward step...
4. Consider the potential step shown below with a beam of particles incident from the left....
4. Consider the potential step shown below with a beam of particles incident from the left. V(x) a) Calculate the reflection coefficient for the case where the energy of the incident particies is less than the height of tihe step b) Calculate the reflection cocf ficient for the case where the encrgy of the incident particies is greater than the height of the step.
A beam of particles, each of the same mass and the same energy, travels in the positive r-direction. The beam is incide...
A beam of particles, each of the same mass and the same energy, travels in the positive r-direction. The beam is incident on an abrupt potential energy step at 0 and some of the beam is transmitted into the region r > 0 and the rest reflected. The energy eigenfunction describing the beam is Aeik,Be-i for r< 0 )Cekfor T > 0, where the coefficients A, B and C are constants and ki and k are real constants (a) Write...
Consider a particle incident from the left on the potential step. Where E = 2 eV...
Consider a particle incident from the left on the potential step. Where E = 2 eV V(x) {5 eV lo x < 0 x > 0 1) Find the wave function of the particle in two regions 2) Find reflection and transmission coefficients R and T
In class we looked at the example of the potential energy step seen below (where E...
In class we looked at the example of the potential energy step seen below (where E > U_0). We wrote down the wave functions in complex exponential form as seen below: psi _0 (x) = A' e^i K_0 x + B' e^-i K_0 x x < 0 psi _1 (x) = C' e^i K_1 x + D' e^-i K_1 x x > 0 a) Assume the particles are incident on the barrier from the left, which coefficient can be set...
toward a Problem 4 (30 points): Consider a current of particles of energy E moving from...
toward a Problem 4 (30 points): Consider a current of particles of energy E moving from x = - potential step as shown in the figure. x > 0 V(x) = {v. x<0 TE Where E > V a) (8 points) Derive the general solution of Schrödinger equation for x < 0 and for x > 0 b) (14 points) Apply the boundary conditions and calculate the transmission and the reflection coefficients. c) (8 points) What is the value of...
Scattering #1 Consider the "downstep" potential shown. A particle of mass m and energy E, inciden...
Scattering #1 Consider the "downstep" potential shown. A particle of mass m and energy E, incident from the left, strikes a potential energy drop-off of depth Vo 0 (2 pts) Using classical physics, consider a particle incident with speed vo. Use conservation of energy to find the speed on the right vf. ALSO, what is the probability that a given particle will "transmit" from the left side to the right side (again, classically)? A. B. (4 pts) This problem is...
An electron with an energy of E=9.8eV is incident upon a square potential barrier of height U=13.8eV with a width of L=0.13nm. What is the probability of reflection (reflection coefficient)? Calculate...
An electron with an energy of E=9.8eV is incident upon a square potential barrier of height U=13.8eV with a width of L=0.13nm. What is the probability of reflection (reflection coefficient)? Calculate your answer using two decimal places. Mass of the electron is 0.511 MeV/c2 Please also note that ħc=197 eV.nm
(3) Particles are incident upon an absorbing material. Find the distance in which the particle beam...
(3) Particles are incident upon an absorbing material. Find the distance in which the particle beam is reduced by a factor 1/e when the particles are thermal neutrons and the absorbing material is cadmium (density 8650 kg m, cross section 24506 barms)
(3) Particles are incident upon an absorbing material. Find the distance in which the particle beam is reduced by a factor 1/e when the particles are thermal neutrons and the absorbing material is cadmium (density 8650 kg m,...
Each ? particle in a beam of ? particles has a kinetic energy of 5.0 MeV....
Each ? particle in a beam of ? particles has a kinetic energy of 5.0 MeV. Through what potential difference would you have to accelerate these a particles in order that they would have enough energy so that if one is fired head-on at a gold nucleus it could reach a point 1.0x10^-14 m from the center of the nucleus?
A beam of photons of energy 184 keV is incident on a target. Scattered photons are...
A beam of photons of energy 184 keV is incident on a target. Scattered photons are observed at an angle of 60° relative to the direction of the incident beam. Assume that the photons scatter from free electrons in the target. (a) What is the energy of the scattered photons? (b) Find the kinetic energy that is acquired by the scattered electrons. (c) Find the magnitude of the electron’s momentum and the component of the electron’s momentum perpendicular to the...
4. Consider the potential step shown below with a beam of particles incident from the left. V(x) a) Calculate the reflection coefficient for the case where the energy of the incident particies is less than the height of tihe step b) Calculate the reflection cocf ficient for the case where the encrgy of the incident particies is greater than the height of the step.
A beam of particles, each of the same mass and the same energy, travels in the positive r-direction. The beam is incident on an abrupt potential energy step at 0 and some of the beam is transmitted into the region r > 0 and the rest reflected. The energy eigenfunction describing the beam is Aeik,Be-i for r< 0 )Cekfor T > 0, where the coefficients A, B and C are constants and ki and k are real constants (a) Write...
Consider a particle incident from the left on the potential step. Where E = 2 eV V(x) {5 eV lo x < 0 x > 0 1) Find the wave function of the particle in two regions 2) Find reflection and transmission coefficients R and T
In class we looked at the example of the potential energy step seen below (where E > U_0). We wrote down the wave functions in complex exponential form as seen below: psi _0 (x) = A' e^i K_0 x + B' e^-i K_0 x x < 0 psi _1 (x) = C' e^i K_1 x + D' e^-i K_1 x x > 0 a) Assume the particles are incident on the barrier from the left, which coefficient can be set...
toward a Problem 4 (30 points): Consider a current of particles of energy E moving from x = - potential step as shown in the figure. x > 0 V(x) = {v. x<0 TE Where E > V a) (8 points) Derive the general solution of Schrödinger equation for x < 0 and for x > 0 b) (14 points) Apply the boundary conditions and calculate the transmission and the reflection coefficients. c) (8 points) What is the value of...
Scattering #1 Consider the "downstep" potential shown. A particle of mass m and energy E, incident from the left, strikes a potential energy drop-off of depth Vo 0 (2 pts) Using classical physics, consider a particle incident with speed vo. Use conservation of energy to find the speed on the right vf. ALSO, what is the probability that a given particle will "transmit" from the left side to the right side (again, classically)? A. B. (4 pts) This problem is...
(3) Particles are incident upon an absorbing material. Find the distance in which the particle beam is reduced by a factor 1/e when the particles are thermal neutrons and the absorbing material is cadmium (density 8650 kg m, cross section 24506 barms)
(3) Particles are incident upon an absorbing material. Find the distance in which the particle beam is reduced by a factor 1/e when the particles are thermal neutrons and the absorbing material is cadmium (density 8650 kg m,...
