Two compounds with partition coefficient of 15 and 18 are to be separated on a column...

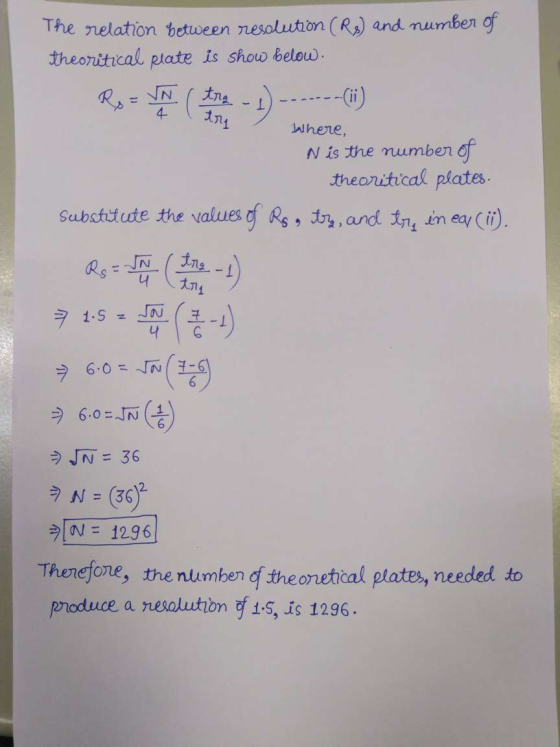

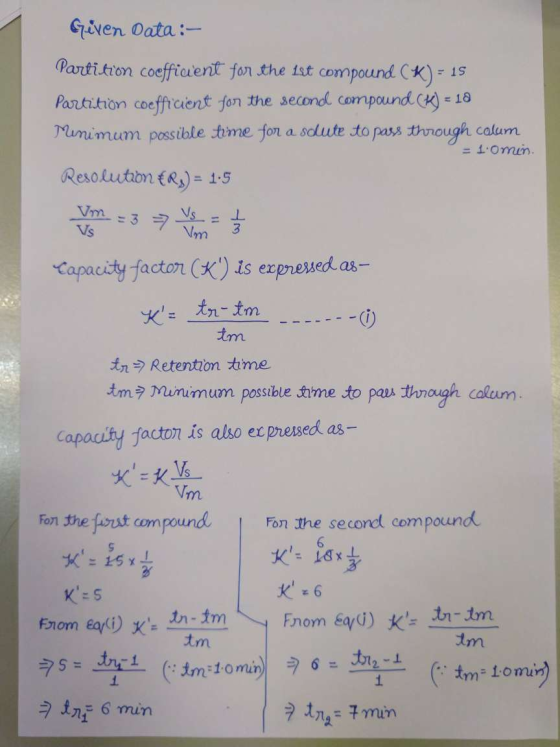

Two compounds with partition coefficient of 15 and 18 are to be separated on a column with Vm/Vs =3 and tm equal to 1.0 minute. Calculate the number of theoretical plates needed to produce a resolution of 1.5
Homework Answers
Add Answer to:
Two compounds with partition coefficient of 15 and 18
are to be separated on a column...
Two compounds C and D are separated on a column 34 cm long . Given the...
Two compounds C and D are separated on a column 34 cm long . Given the chromatographic data below calculate The column resolution? , the number of theoretical plates ?the height of theoretical plate and what length of column would be required to give a resolution of 1.5? Compound C retention time 18.3 width at base of peak(min) = 2.18 Compound D retention time 17.7, width at base 1.23
Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be...
Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be separated by repeated chromatography cycles. In each cycle, the solution containing both compounds passes through a chromatography column of length ?=45.0 cm containing ? theoretical plates. The compounds have an adjusted relative retention, α, of 1.093 and retention factors of 6.09 and 6.66 , respectively. Calculate the number of theoretical plates, ? , in the column of length ? . The observed resolution is...
Check An 5 of 26 > Two isotopic compounds are produced in the synthesis of a...
Check An 5 of 26 > Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be separated by repeated chromatography cycles. In each cycle, the solution containing both compounds passes through a chromatography column with a length L 25.0 cm containing N theoretical plates. The unadjusted relative retention is y = 1.042 Calculate the number of theoretical plates, N, in the column of length L. The observed resolution is 1.84 after 19 cycles N-...
Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be...
Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be separated by repeated chromatography cycles. In each cycle, the solution containing both compounds passes through a chromatography column with a length L = 45.0 cm containing N theoretical plates. The unadjusted relative retention is y = 1.098. Calculate the number of theoretical plates, N. in the column of length L. The observed resolution is 1.82 after 14 cycles. plates Calculate the height of an...
Chromatograms of compounds A and B were obtained at the same flowrate with two columns of...
Chromatograms of compounds A and B were obtained at the same
flowrate with two columns of equal length. The Value of tm is 1.3
min in both cases.
Chromatograms
of compounds A and B were obtained at the same flow rate with two
columns of equal length. The value of
tm is
1.3 min in both cases.
I Column 1 Column 2 12 10 Time What is the numcrical valac of the nenn factor of pak A what isthemererkal valse...
Two compounds with capacity factors of 5.00 and 5.10 are separated on a column with a...
Two compounds with capacity factors of 5.00 and 5.10 are separated on a column with a plate height of 155 µm. What length of column is required to give a resolution of 1.00? How about resolution of 2.00?
need help with number 2 HW #3 for Chem 318 Due: April 29, 2019 1. Solute A has a K 2.5 for an extraction between water (phase 1) and chloroform (phase 2). If 100 mL of a 0.01 fraction will be extr...
need help with number 2
HW #3 for Chem 318 Due: April 29, 2019 1. Solute A has a K 2.5 for an extraction between water (phase 1) and chloroform (phase 2). If 100 mL of a 0.01 fraction will be extracted? For the same solute and, what fraction will be extracted if 5 extractions wi 80 mL chloroform each are used (instead of one 400 ml extraction)? M solution containing solute A in water is extracted one time with...
EXERCISE 6: Two chemical species, A and B are separated by isothermal gas chromatography, using a...
EXERCISE 6: Two chemical species, A and B are separated by isothermal gas chromatography, using a 2.00 m column having 5000 theoretical plates at a flow rate of 15.0 ml / min. The peak of unabsorbed air appears after 30 s; the peak of A appears after 5 min and that of B after 12 min (a) Calculate the dead volume VM of the column, and the retention volumes Va and VB. (b) Calculate the reduced volumes V’a and V'B...
A HPLC column was operated under the following conditions Column Length – 25.4 cm Column Diameter...
A HPLC column was operated under the following conditions
Column Length – 25.4 cm Column
Diameter = 0.5 mm
Mass stationary phase = 0.49
g Density
Stationary Phase = 1.12 g/mL
Measured Outlet Flow Rate = 1.0 mL/min
Column Temperature = 25 oC.
resolution equation=Rs = Trb-Tra/W
Plate height(H) = length of column (L)/Number of plate on the
column (N)
No. of theoretical N= 16(RS/w)2
Calculate the resolution for components #3 and #4?
Calculate the plate height for column (use...
A group of analysts was working on developing a method to separate and determine carbamate insecticides...
A group of analysts was working on developing a method to separate and determine carbamate insecticides used for control of pests in food production They used HPLC with an Eurospher 100-5 C-18 column and a mobile phase consisting of a mixture of water and methanol, with post-column derivatization. .The column was determined to have an average of 1999 theoretical plates for this group of compounds. The stationary and mobile phases volumes in the column were SMV = 0.51mL, V =...
Check An 5 of 26 > Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be separated by repeated chromatography cycles. In each cycle, the solution containing both compounds passes through a chromatography column with a length L 25.0 cm containing N theoretical plates. The unadjusted relative retention is y = 1.042 Calculate the number of theoretical plates, N, in the column of length L. The observed resolution is 1.84 after 19 cycles N-...
Two isotopic compounds are produced in the synthesis of a new therapeutic drug, which must be separated by repeated chromatography cycles. In each cycle, the solution containing both compounds passes through a chromatography column with a length L = 45.0 cm containing N theoretical plates. The unadjusted relative retention is y = 1.098. Calculate the number of theoretical plates, N. in the column of length L. The observed resolution is 1.82 after 14 cycles. plates Calculate the height of an...
Chromatograms of compounds A and B were obtained at the same
flowrate with two columns of equal length. The Value of tm is 1.3
min in both cases.
Chromatograms
of compounds A and B were obtained at the same flow rate with two
columns of equal length. The value of
tm is
1.3 min in both cases.
I Column 1 Column 2 12 10 Time What is the numcrical valac of the nenn factor of pak A what isthemererkal valse...
need help with number 2
HW #3 for Chem 318 Due: April 29, 2019 1. Solute A has a K 2.5 for an extraction between water (phase 1) and chloroform (phase 2). If 100 mL of a 0.01 fraction will be extracted? For the same solute and, what fraction will be extracted if 5 extractions wi 80 mL chloroform each are used (instead of one 400 ml extraction)? M solution containing solute A in water is extracted one time with...
EXERCISE 6: Two chemical species, A and B are separated by isothermal gas chromatography, using a 2.00 m column having 5000 theoretical plates at a flow rate of 15.0 ml / min. The peak of unabsorbed air appears after 30 s; the peak of A appears after 5 min and that of B after 12 min (a) Calculate the dead volume VM of the column, and the retention volumes Va and VB. (b) Calculate the reduced volumes V’a and V'B...
A HPLC column was operated under the following conditions
Column Length – 25.4 cm Column
Diameter = 0.5 mm
Mass stationary phase = 0.49
g Density
Stationary Phase = 1.12 g/mL
Measured Outlet Flow Rate = 1.0 mL/min
Column Temperature = 25 oC.
resolution equation=Rs = Trb-Tra/W
Plate height(H) = length of column (L)/Number of plate on the
column (N)
No. of theoretical N= 16(RS/w)2
Calculate the resolution for components #3 and #4?
Calculate the plate height for column (use...
