A 20 kg television set is placed on a light table supported by four cylindrical legs...
A 20 kg television set is placed on a light table supported by four cylindrical legs made from a steel alloy material with a Young’s modulus of elasticity E=400 MPa. Each of these legs has a length of 0.5 m and a diameter of 10 mm. Consider free motions of this system in the vertical direction and determine the displacement response when the initial displacement is zero and the initial velocity is 0.2 m/s.

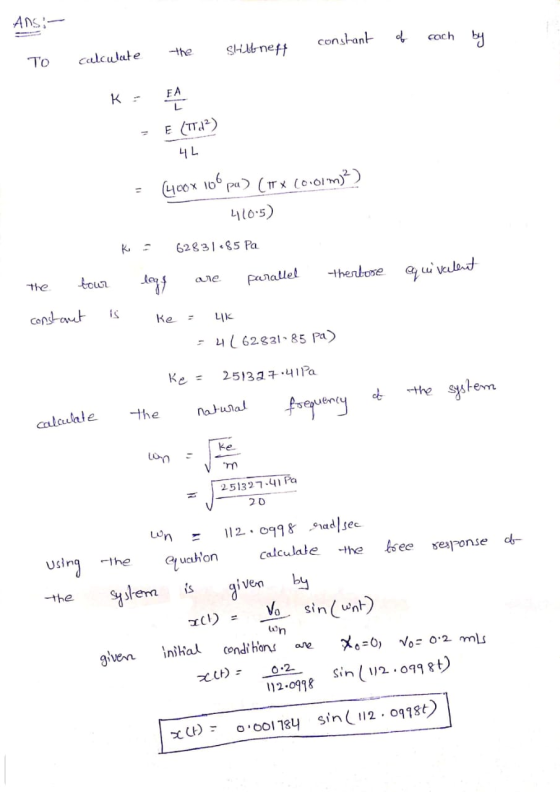

Homework Answers
Add Answer to:
A 20 kg television set is placed on a light table supported by
four cylindrical legs...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
(GPa) A cylindrical machine part 250 mm long with a diameter of 10 mm is subjected...
(GPa) A cylindrical machine part 250 mm long with a diameter of 10 mm is subjected to an axial load of 28,500 N. Using the list of materials shown in the table below, answer questions 1 through 2. Yield Strength Young's Modulus Material [MPa] Density (g/cm] Aluminum alloy 255 70 2.75 Steel alloy 400 207 7.85 Titanium alloy 800 110 4.50 Copper alloy 250 110 8.50 Brass alloy 340 100 8.40 1. If the elongation is not to exceed 0.6...
A rigid beam ABCD is supported by a pin at B and two cables located at...
A rigid beam ABCD is supported by a pin at B and two cables located at A and C. The cables have a 30 mm diameter and are made of steel with yield strength of 800 MPa and elastic modulus of 200 GPa. The beam is designed to resist a vertical load P applied at D equal to 200 kN. a) Find the forces developed in each cable b) Find the corresponding vertical displacement at point where the load is...
*Computer-Oriented Problems* 3/285. The two 0.2-kg sliders are connected by a light rigid bar of length...
*Computer-Oriented Problems* 3/285. The two 0.2-kg sliders are
connected by a light rigid bar of length L = 0.5 m. If the system
is released from rest in the position shown with the spring
unstretched, plot the speeds of A and B as functions of the
displacement of B (with zero being the initial position). The
0.14-MPa air pressure acting on one 500=mm^2 side of slider A is
constant. The motion occurs in a vertical plane. Neglect friction.
State the...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC met...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC metals. Strength and UTS of metals. 2. Determine the slip systems in BCC and FCC materials. Show the calculations that support your determinations. 3. Find the indices that represent the planes in the following cubic unit cell and show the X-Ray diffract-ability of the these planes in FCC and BCC structures: 4. A tensile specimen with a 12 mm initial diameter and 50 mm gauge length...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a d...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a diameter of 14 mm, a. Sketch the torque diagram along the steel shaft. b. Determine the maximum shear stress at Tmax and specify location. c. Sketch the shear stress distribution along the radial line at location specified in (b). d. Determine the displacement of the...
Auge Steel Framing Details 1. Complete all light g auge steel componente ir the following wall se...
auge Steel Framing Details 1. Complete all light g auge steel componente ir the following wall section, including floor joists, wall studs, roof rafters, and required clips angles, stiffeners, and fasteners. Label all components. Roof sheathing Wall sheathing 。 Interior wallboard Subflooring Foundation 103 Scale: l square =2" (50 mm) Name: necessity of cutting holes in m on the construction ste 12.11. 12.15). Thack etions a sed for top and bottom plates, e construction, shemperature that col tural shapes. Prers...
please give anwers ? wuestion 01/20 Marks The vendita a ty and the price at the...
please give anwers ?
wuestion 01/20 Marks The vendita a ty and the price at the where relation when 2 A , what is the I (5 km/whereth theme of the n dia sention of the partie hectory tract with constant d ong the path that for a short distantes tromos rec ome the sandy ortoit vnity at instant on the cure Aybladet The Scenes pinned at and as a result of the constant prote dhes the peg For a...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
(GPa) A cylindrical machine part 250 mm long with a diameter of 10 mm is subjected to an axial load of 28,500 N. Using the list of materials shown in the table below, answer questions 1 through 2. Yield Strength Young's Modulus Material [MPa] Density (g/cm] Aluminum alloy 255 70 2.75 Steel alloy 400 207 7.85 Titanium alloy 800 110 4.50 Copper alloy 250 110 8.50 Brass alloy 340 100 8.40 1. If the elongation is not to exceed 0.6...
A rigid beam ABCD is supported by a pin at B and two cables located at A and C. The cables have a 30 mm diameter and are made of steel with yield strength of 800 MPa and elastic modulus of 200 GPa. The beam is designed to resist a vertical load P applied at D equal to 200 kN. a) Find the forces developed in each cable b) Find the corresponding vertical displacement at point where the load is...
*Computer-Oriented Problems* 3/285. The two 0.2-kg sliders are
connected by a light rigid bar of length L = 0.5 m. If the system
is released from rest in the position shown with the spring
unstretched, plot the speeds of A and B as functions of the
displacement of B (with zero being the initial position). The
0.14-MPa air pressure acting on one 500=mm^2 side of slider A is
constant. The motion occurs in a vertical plane. Neglect friction.
State the...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
1. State the difference between I and polycrystalline materials. Deformability of BCC and FCC metals. Strength and UTS of metals. 2. Determine the slip systems in BCC and FCC materials. Show the calculations that support your determinations. 3. Find the indices that represent the planes in the following cubic unit cell and show the X-Ray diffract-ability of the these planes in FCC and BCC structures: 4. A tensile specimen with a 12 mm initial diameter and 50 mm gauge length...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a diameter of 14 mm, a. Sketch the torque diagram along the steel shaft. b. Determine the maximum shear stress at Tmax and specify location. c. Sketch the shear stress distribution along the radial line at location specified in (b). d. Determine the displacement of the...
auge Steel Framing Details 1. Complete all light g auge steel componente ir the following wall section, including floor joists, wall studs, roof rafters, and required clips angles, stiffeners, and fasteners. Label all components. Roof sheathing Wall sheathing 。 Interior wallboard Subflooring Foundation 103 Scale: l square =2" (50 mm) Name: necessity of cutting holes in m on the construction ste 12.11. 12.15). Thack etions a sed for top and bottom plates, e construction, shemperature that col tural shapes. Prers...
please give anwers ?
wuestion 01/20 Marks The vendita a ty and the price at the where relation when 2 A , what is the I (5 km/whereth theme of the n dia sention of the partie hectory tract with constant d ong the path that for a short distantes tromos rec ome the sandy ortoit vnity at instant on the cure Aybladet The Scenes pinned at and as a result of the constant prote dhes the peg For a...
