A group of particles is traveling in a magnetic field of unknown magnitude and direction. You...

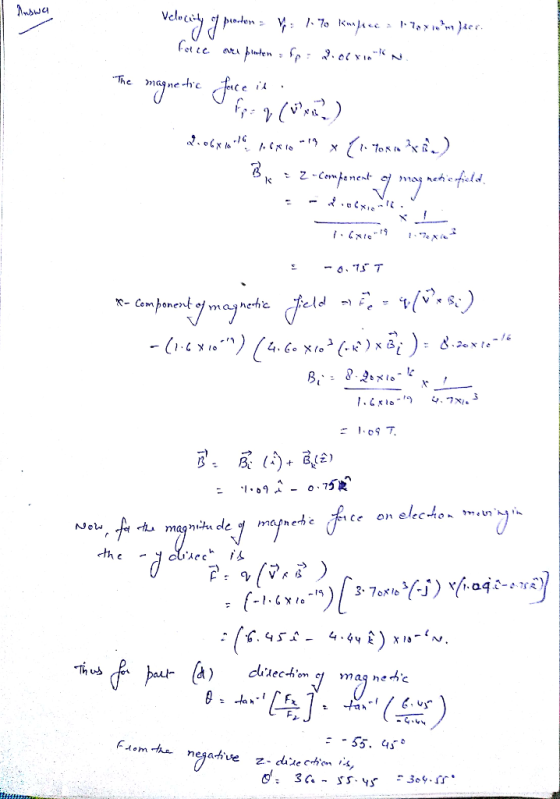

A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.70 km/s in the +x-direction experiences a force of 2.06×10−16 N in the +y-direction, and an electron moving at 4.60 km/s in the −z-direction experiences a force of 8.20×10−16 N in the +y-direction.
A. What is the magnitude of the magnetic field?
ans 1.35 T
B. What is the direction of the magnetic field? (in the xz-plane)
ans 55.8 deg
C. What is the magnitude of the magnetic force on an electron moving in the −y-direction at 3.50 km/s ?
|
7.54×10−16 |
N |
D. What is the direction of this the magnetic force? (in the xz-plane)
need help on part D
Homework Answers
