A group of particles is traveling in a magnetic field of unknown magnitude and direction. You...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.70 km/s in the +x-direction experiences a force of 2.06×10−16 N in the +y-direction, and an electron moving at 4.40 km/s in the −z-direction experiences a force of 8.10×10−16 N in the +y-direction.
1) What is the magnitude of the magnetic field?
2) What is the direction of the magnetic field? (in the xz-plane)
3) What is the magnitude of the magnetic force on an electron moving in the −y-direction at 3.70 km/s ?
4) What is the direction of this the magnetic force? (in the xz-plane)

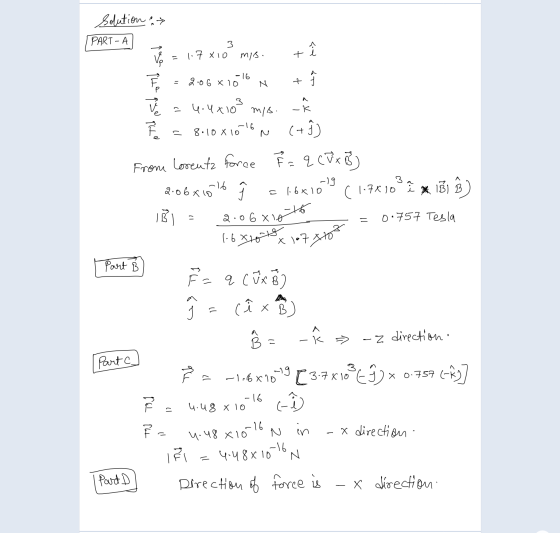

Homework Answers
Add Answer to:
A group of particles is traveling in a magnetic field of unknown
magnitude and direction. You...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.70 km/s in the +x-direction experiences a force of 2.06×10−16 N in the +y-direction, and an electron moving at 4.60 km/s in the −z-direction experiences a force of 8.20×10−16 N in the +y-direction. A. What is the magnitude of the magnetic field? ans 1.35 T B. What is the direction of the magnetic field? (in the xz-plane) ans...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.60 km/s in the +x-direction experiences a force of 2.10×10−16 N in the +y-direction, and an electron moving at 4.70 km/s in the −z-direction experiences a force of 8.60×10−16 N in the +y-direction. What is the magnitude of the magnetic field? What is the direction of the magnetic field? (in the xz-plane) What is the magnitude of the...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.70 km/s in the direction experiences a force of 2.08 10- N in the y direction, and an electron moving at 4.50 km/s in the direction experiences a form of 8.40 10-18 N in the direction. Part A You may want to review (Page) For related problem solving tips and strategies, you may want to view a Video...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.70km/s in the +x-direction experiences a force of 2.06
An electron moves through a region with a uniform magnetic field of unknown magnitude directed in...
An electron moves through a region with a uniform magnetic field of unknown magnitude directed in the +y direction At the instant that the electron is moving in the +z direction with a velocity of 2.86e6 m/s, it experiences a magnetic force of 1.24 pN in the +x direction. Calculate the magnitude of the magnetic field
A proton moving in a uniform magnetic field with v⃗ 1=1.13×106ı^m/s experiences force F⃗ 1=1.70×10−16k^N. A...
A proton moving in a uniform magnetic field with v⃗ 1=1.13×106ı^m/s experiences force F⃗ 1=1.70×10−16k^N. A second proton with v⃗ 2=2.06×106ȷ^m/s experiences F⃗ 2=−4.17×10−16k^N in the same field. What is the magnitude of B⃗ ? What is the direction of B⃗ ? Give your answer as an angle measured ccw from the +x-axis.
A proton traveling at 31.8° with respect to the direction of a magnetic field of strength...
A proton traveling at 31.8° with respect to the direction of a magnetic field of strength 2.35 mT experiences a magnetic force of 5.70 × 10-17 N. Calculate (a) the proton's speed and (b) its kinetic energy in electron-volts.
A proton traveling at 25.5° with respect to the direction of a magnetic field of strength...
A proton traveling at 25.5° with respect to the direction of a magnetic field of strength 2.07 mT experiences a magnetic force of 5.12 × 10-17 N. Calculate (a) the proton's speed and (b) its kinetic energy in electron-volts.
A proton traveling at 23.4° with respect to the direction of a magnetic field of strength...
A proton traveling at 23.4° with respect to the direction of a magnetic field of strength 2.01 mT experiences a magnetic force of 9.03 × 10-17 N. Calculate (a) the proton's speed and (b) its kinetic energy in electron-volts.
1. Which of the following charged particles moving in a static uniform magnetic field feels no...
1. Which of the following charged particles moving in a static uniform magnetic field feels no force? A. an electron with velocity opposite the direction of the magnetic field B. an electron with velocity perpendicular to the magnetic field C. a proton with velocity perpendicular to the magnetic field D. a proton with velocity making a 45 degree angle with the magnetic field 2. An electron enters a region where a uniform magnetic field points in the +z direction. If...
A group of particles is traveling in a magnetic field of unknown magnitude and direction. You observe that a proton moving at 1.70 km/s in the direction experiences a force of 2.08 10- N in the y direction, and an electron moving at 4.50 km/s in the direction experiences a form of 8.40 10-18 N in the direction. Part A You may want to review (Page) For related problem solving tips and strategies, you may want to view a Video...
