A +2.8 percent grade intersects a -5.0 percent grade at station 2+ 800 and an elevation...

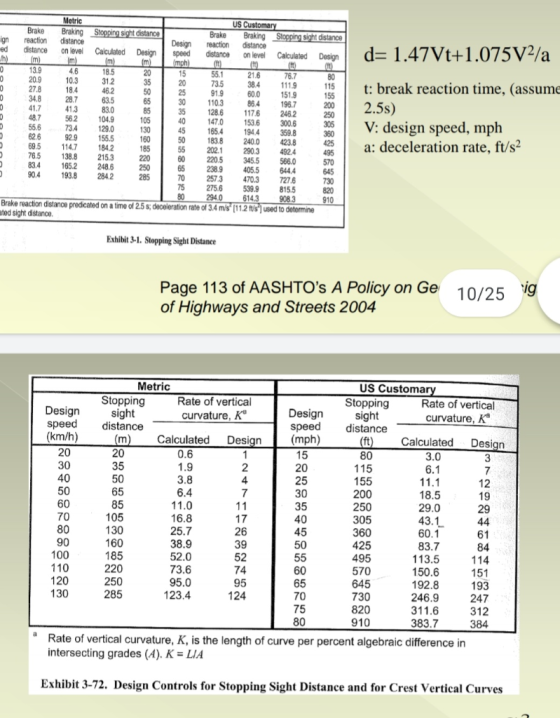

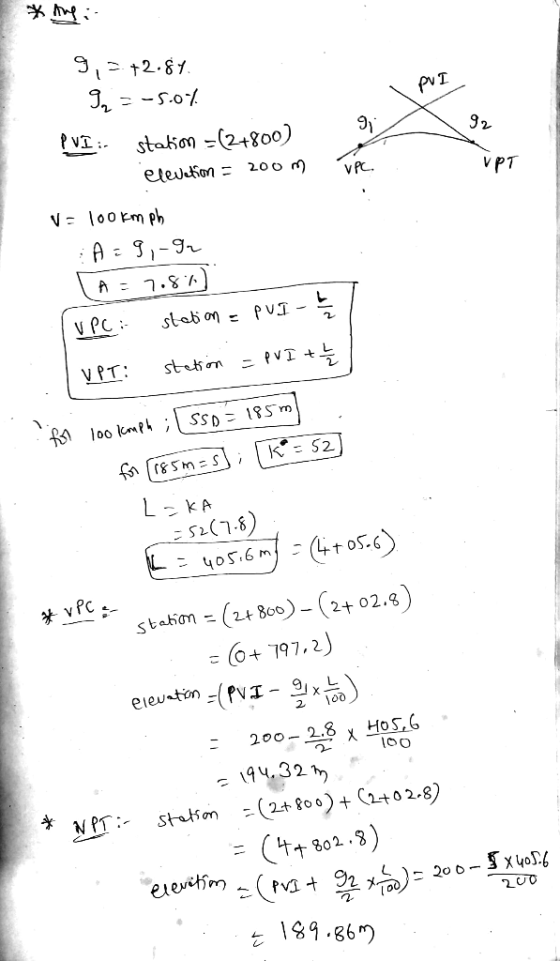

A +2.8 percent grade intersects a -5.0 percent grade at station 2+ 800 and an elevation of 200.0 m. Design a parabolic curve to join the two grades. Calculate the centerline

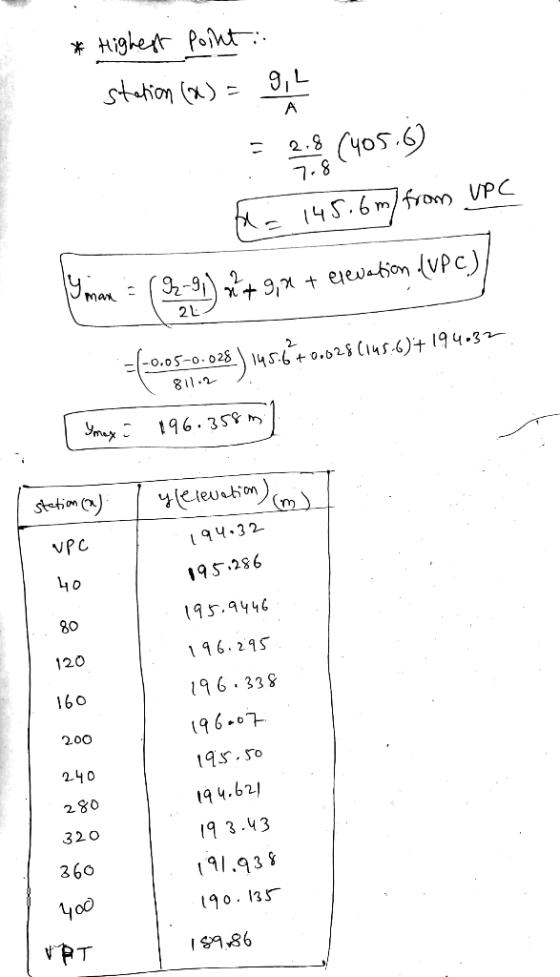

elevation every 40.0m starting from “VPC” to “VPT”, and the station and elevation of the highest point on curve. The speed limit on the road is 100 km/hr.
Homework Answers
please???? rateAdd Answer to:
A +2.8 percent grade intersects a -5.0 percent grade at station
2+ 800 and an elevation...
Q1. A +2 percent grade on an arterial highway intersects with a -1 percent grade at...
Q1. A +2 percent grade on an arterial highway intersects with a -1 percent grade at station (5+357.28) at an elevation of 90m. If the design speed of the highway is 100 Km/h, determine the stations and elevations of the BVC and EVC, the elevation of each 30-m station, and the higlh point Q2. Determine the minimum length of a vertical curve if the grades are +4% and-200. Design speed is 120 km/hr. State assumptions used in solving this problem....
Q1: A plus 5.1 percent grade intersects a minus 2.8 percent grade at station 68+70 at...
Q1: A plus 5.1 percent grade intersects a minus 2.8 percent grade at station 68+70 at an elevation of 327.50 ft. Calculate the centerline elevations for every even 100- ft station for a 500-ft vertical curve.
A sag vertical curve has a 25% grade that intersects with a +3.1% grade at station...
A sag vertical curve has a 25% grade that intersects with a +3.1% grade at station 352+52.8 and an elevation of 422.8. To provide proper cover for a culvert, the elevation at 349+30.00 be 434.6 or higher. A) What minimum length of vertical curve is necessary to provide the necessary cover and meet the other design requirements for a design speed of 70 mph? B) if a 1025-foot curve is used, determine the station and the elevation of the low...
1. (35 pts) A-2% grade intersects with a +3% grade at station 410+50.00 at an elevation of 200 fe...
1. (35 pts) A-2% grade intersects with a +3% grade at station 410+50.00 at an elevation of 200 feet. If the speed limit is 70 mph, determine: a. b. C. d. Minimum length of vertical curve Stations and elevations of PVC and PVT Station and elevation of highpoint Create a spreadsheet that calculated the elevation of each 100 feet station and graph the curve.
1. (35 pts) A-2% grade intersects with a +3% grade at station 410+50.00 at an elevation...
downward 2% grade. The length 2. of the curve is 800 feet. The elevation of the...
downward 2% grade. The length 2. of the curve is 800 feet. The elevation of the beginning of the curve is 648.52 ft. The station of VPI is 31+00. Find: A vertical curve connects an upward 5% grade with a 1) The station of high point (5%) 2) Tangent elevation of high point (5%) 3) Tangent offset of high point (5%) 4) Elevation of the centerline at high point (5%) 3. The mayor of Shoridan wants to erect a large...
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a s...
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a section of a two-lane highway. Determine the minimum length of the curve if the design speed of the highway is 60 mph and SL. Assume that a-9.34 ftsec' and that the perception-reaction time is 2.5 sec. Problem2 A crest vertical curve is to be designed to join a +3% grade with a-2% grade at a section of a two-lane...
highway geometric Q1) A. What are the Principal elements of the highway cross section? Draw the...
highway geometric
Q1) A. What are the Principal elements of the highway cross section? Draw the typical cross sections for a two-lane highway. (5 Points) B. Briefly discuss the various indirect design factors to be considered for geometric design of highway. (10 Points) Q2) A. What is Road Alignment? Briefly describe the requirements of an ideal alignment. (5 Points) B. An equal-tangent sag vertical curve has the initial grade is -3.2% and the final grade is +1.8%, PVI at 30+30...
Q1. A +2 percent grade on an arterial highway intersects with a -1 percent grade at station (5+357.28) at an elevation of 90m. If the design speed of the highway is 100 Km/h, determine the stations and elevations of the BVC and EVC, the elevation of each 30-m station, and the higlh point Q2. Determine the minimum length of a vertical curve if the grades are +4% and-200. Design speed is 120 km/hr. State assumptions used in solving this problem....
Q1: A plus 5.1 percent grade intersects a minus 2.8 percent grade at station 68+70 at an elevation of 327.50 ft. Calculate the centerline elevations for every even 100- ft station for a 500-ft vertical curve.
A sag vertical curve has a 25% grade that intersects with a +3.1% grade at station 352+52.8 and an elevation of 422.8. To provide proper cover for a culvert, the elevation at 349+30.00 be 434.6 or higher. A) What minimum length of vertical curve is necessary to provide the necessary cover and meet the other design requirements for a design speed of 70 mph? B) if a 1025-foot curve is used, determine the station and the elevation of the low...
1. (35 pts) A-2% grade intersects with a +3% grade at station 410+50.00 at an elevation of 200 feet. If the speed limit is 70 mph, determine: a. b. C. d. Minimum length of vertical curve Stations and elevations of PVC and PVT Station and elevation of highpoint Create a spreadsheet that calculated the elevation of each 100 feet station and graph the curve.
1. (35 pts) A-2% grade intersects with a +3% grade at station 410+50.00 at an elevation...
downward 2% grade. The length 2. of the curve is 800 feet. The elevation of the beginning of the curve is 648.52 ft. The station of VPI is 31+00. Find: A vertical curve connects an upward 5% grade with a 1) The station of high point (5%) 2) Tangent elevation of high point (5%) 3) Tangent offset of high point (5%) 4) Elevation of the centerline at high point (5%) 3. The mayor of Shoridan wants to erect a large...
9:381 LTE Problem 1 A crest vertical curve is to be designed to join a +2% grade with a-2% at a section of a two-lane highway. Determine the minimum length of the curve if the design speed of the highway is 60 mph and SL. Assume that a-9.34 ftsec' and that the perception-reaction time is 2.5 sec. Problem2 A crest vertical curve is to be designed to join a +3% grade with a-2% grade at a section of a two-lane...
highway geometric
Q1) A. What are the Principal elements of the highway cross section? Draw the typical cross sections for a two-lane highway. (5 Points) B. Briefly discuss the various indirect design factors to be considered for geometric design of highway. (10 Points) Q2) A. What is Road Alignment? Briefly describe the requirements of an ideal alignment. (5 Points) B. An equal-tangent sag vertical curve has the initial grade is -3.2% and the final grade is +1.8%, PVI at 30+30...
