A vertical curve connetcs an upward 5% grade with a downward 2% grade. The lenght of...

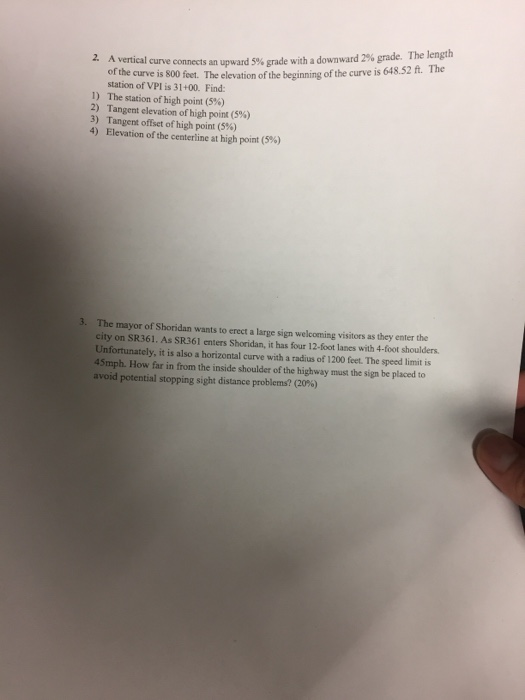

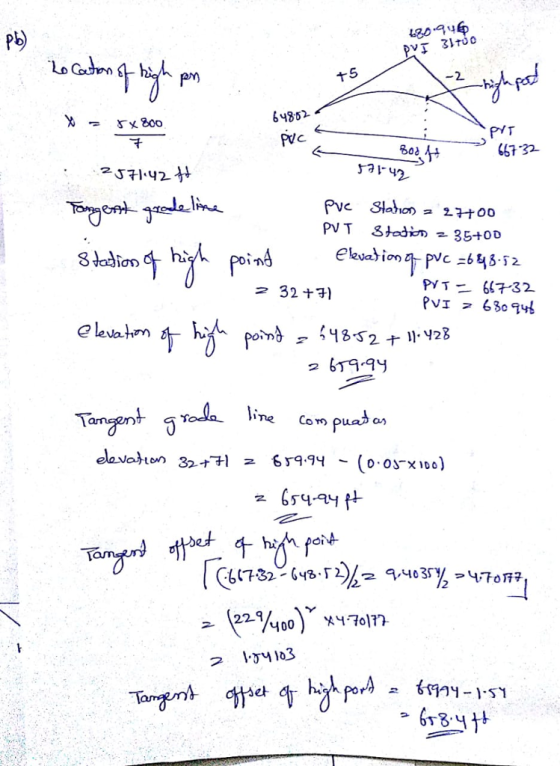

A vertical curve connetcs an upward 5% grade with a downward 2% grade. The lenght of the curve is 800 feet. The elevaation of the beginning of the curve is 648.52 ft. The station of VPI is 31+00 Find: 1) The station of high point 2) Tangent elevation of high point 3) Tangent offset of high point 4) Elevation of the centerline at high piont
A 5 degree curve (measured at the centerline of the inside lane) is being designed for...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
Q1. A +2 percent grade on an arterial highway intersects with a -1 percent grade at...
Q1. A +2 percent grade on an arterial highway intersects with a -1 percent grade at station (5+357.28) at an elevation of 90m. If the design speed of the highway is 100 Km/h, determine the stations and elevations of the BVC and EVC, the elevation of each 30-m station, and the higlh point Q2. Determine the minimum length of a vertical curve if the grades are +4% and-200. Design speed is 120 km/hr. State assumptions used in solving this problem....
25. A spiral curve with a length of 50 feet connects a tangent to a curve...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
An equal-tangent vertical curve connects an initial grade of +2% and-2%. The PVI is located at...
An equal-tangent vertical curve connects an initial grade of +2% and-2%. The PVI is located at an elevation of 1000 feet. If the design speed is 60 mi/h and the curve is designed for stopping sight distance, then what is the elevation of the PVT, in feet?
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and a central angle of 40 degrees. The PT of the curve is at station 322+50 and PI is at 320+08. The road has 10 feet lanes, 2 lanes in each direction, no median, and 8 feet shoulders on both sides. What is the highest safe speed (round to 5mi/hr increments) and what is the station for PC?
Geomatics 3. Field conditions require a highway curve to pass through a fixed point with elevation...
Geomatics
3. Field conditions require a highway curve to pass through a fixed point with elevation 753.00 at station 30+00. Compute a suitable equal tangent vertical curve and full-station elevations if g!--2.50%, g2 +1.00%, VPI elevation- 750.00 ft, VPI station 30+00. Include a hand sketch of the curve.
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length =...
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length =...
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
Q1. A +2 percent grade on an arterial highway intersects with a -1 percent grade at station (5+357.28) at an elevation of 90m. If the design speed of the highway is 100 Km/h, determine the stations and elevations of the BVC and EVC, the elevation of each 30-m station, and the higlh point Q2. Determine the minimum length of a vertical curve if the grades are +4% and-200. Design speed is 120 km/hr. State assumptions used in solving this problem....
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
An equal-tangent vertical curve connects an initial grade of +2% and-2%. The PVI is located at an elevation of 1000 feet. If the design speed is 60 mi/h and the curve is designed for stopping sight distance, then what is the elevation of the PVT, in feet?
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
2. A horizontal curve on a 4 lane highway has a super elevation of 6% and a central angle of 40 degrees. The PT of the curve is at station 322+50 and PI is at 320+08. The road has 10 feet lanes, 2 lanes in each direction, no median, and 8 feet shoulders on both sides. What is the highest safe speed (round to 5mi/hr increments) and what is the station for PC?
Geomatics
3. Field conditions require a highway curve to pass through a fixed point with elevation 753.00 at station 30+00. Compute a suitable equal tangent vertical curve and full-station elevations if g!--2.50%, g2 +1.00%, VPI elevation- 750.00 ft, VPI station 30+00. Include a hand sketch of the curve.
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
1. Given a vertical curve with: PVI station = 26+42.17PVI Elevation = 1642.91 feet Length = 947.00 feet Entrance grade (gl) = -6.0% Exit grade (g2) = +1.2% Calculate the PVC station and elevation. • Calculate the PVT station and elevation. - Calculate the elevation at station 27+34.90. • Calculate the station and elevation of the high/low point.
