A vertical curve connetcs an upward 5% grade with a downward 2% grade. The lenght of...
A vertical curve connetcs an upward 5% grade with a downward 2% grade. The lenght of the curve is 800 feet. The elevaation of the beginning of the curve is 648.52 ft. The station of VPI is 31+00 Find:
1) The station of high point
2) Tangent elevation of high point
3) Tangent offset of high point
4) Elevation of the centerline at high piont

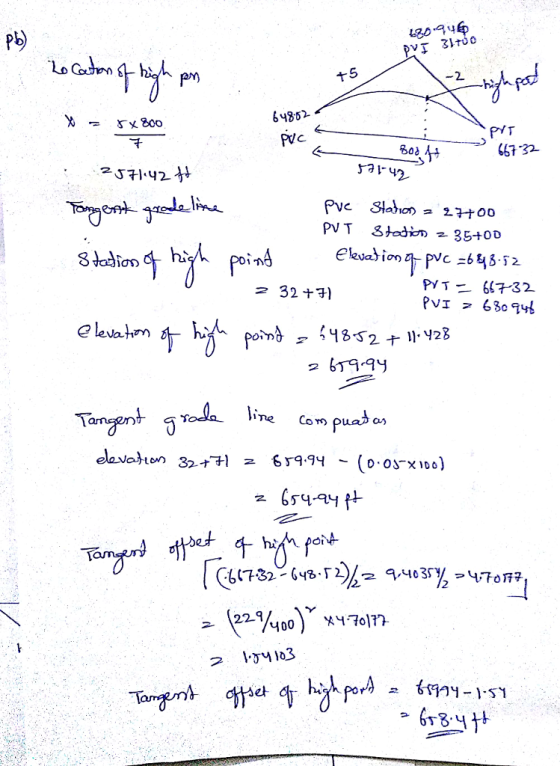

Homework Answers
Add Answer to:
A vertical curve connetcs an upward 5% grade with a downward 2%
grade. The lenght of...
downward 2% grade. The length 2. of the curve is 800 feet. The elevation of the...
downward 2% grade. The length 2. of the curve is 800 feet. The elevation of the beginning of the curve is 648.52 ft. The station of VPI is 31+00. Find: A vertical curve connects an upward 5% grade with a 1) The station of high point (5%) 2) Tangent elevation of high point (5%) 3) Tangent offset of high point (5%) 4) Elevation of the centerline at high point (5%) 3. The mayor of Shoridan wants to erect a large...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
A sag vertical curve will connect two tangents, a -3% grade and a +5% grade, 800...
A sag vertical curve will connect two tangents, a -3% grade and a +5% grade, 800 ft apart. The ravine in which the sag curve will be situated needs to be built up. The elevation of the curve at its deepest point must be at elevation 168.00 ft or higher to clear a major pipe installation. If the PVC is at station 00 + 00.00 with an elevation of 176.20 ft, determine the location of the deepest point of the...
25. A spiral curve with a length of 50 feet connects a tangent to a curve...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and...
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and elevation 1322 ft. The initial grade is +4.0% and the final grade is -2.5%. Determine the elevation and stationing of the high point, PVC, and PVT. Solve this problem using parabolic equation and offset method.
Field conditions require a highway curve to pass through a fixed point. Compute a suitable equal-...
Field conditions require a highway curve to pass through a fixed point. Compute a suitable equal- tangent vertical curve and full-station elevations for the following: Grades of g,--3.80 % and g +1.00 %, VPI elevation 850.00 ft at station 30+00. Fixed elevation 852.00 ft at station 30+00. 2)
Field conditions require a highway curve to pass through a fixed point. Compute a suitable equal- tangent vertical curve and full-station elevations for the following: Grades of g,--3.80 % and g +1.00...
2. Given a sag vertical curve connecting a -1.5% grade with a +2.5% grade on a...
2. Given a sag vertical curve connecting a -1.5% grade with a +2.5% grade on a rural arterial highway, use the rate of vertical curvature and a design speed of 70 mi/h to compute the elevation of the curve at 100 ft stations if the grades intersect at station (475+00) at an elevation of 300.00 ft. Identify the station and elevation of the low point.
A crest vertical curve connects a +2% grade and a -2.05% grade. The PVI is at...
A crest vertical curve connects a +2% grade and a -2.05% grade. The PVI is at station 40+00.00 at an elevation of 100.00 ft. The design speed is 70 mi/h. If the length is 1084 ft, determine: (b) The station of the BVC (3 pts (c) The elevation of the BVC (3 pts (d) The station of the EVC (3 pts) (e) The elevation of the EVC (3 pts) (1) The station of the highest point on the curve (4...
downward 2% grade. The length 2. of the curve is 800 feet. The elevation of the beginning of the curve is 648.52 ft. The station of VPI is 31+00. Find: A vertical curve connects an upward 5% grade with a 1) The station of high point (5%) 2) Tangent elevation of high point (5%) 3) Tangent offset of high point (5%) 4) Elevation of the centerline at high point (5%) 3. The mayor of Shoridan wants to erect a large...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
A 5 degree curve (measured at the centerline of the inside lane) is being designed for a highway with a design speed of 60 mph. What is the closest any roadside object may be placed to the centerline of the inside lane of the roadway while maintaining adequate stopping sight distance? Assume lane widths are 12 feet. 3) A 520-ft long equal tangent crest vertical curve connects tangents that intersect at station 340+00 and elevation 1325 ft. The initial grade...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
12. Two tangent of a vertical curve intersects at station 32+11.61 and elevation 64.18 ft. back tangent grade is gl = +4% and forward tangent grade g2--6%, and length L = 600 ft a. b. c. d. Calculate the elevation of PVC in feet. Calculate the elevation of PVT in ft Calculate the station of the high point. Calculate the elevation of high point in ft.
Field conditions require a highway curve to pass through a fixed point. Compute a suitable equal- tangent vertical curve and full-station elevations for the following: Grades of g,--3.80 % and g +1.00 %, VPI elevation 850.00 ft at station 30+00. Fixed elevation 852.00 ft at station 30+00. 2)
Field conditions require a highway curve to pass through a fixed point. Compute a suitable equal- tangent vertical curve and full-station elevations for the following: Grades of g,--3.80 % and g +1.00...
2. Given a sag vertical curve connecting a -1.5% grade with a +2.5% grade on a rural arterial highway, use the rate of vertical curvature and a design speed of 70 mi/h to compute the elevation of the curve at 100 ft stations if the grades intersect at station (475+00) at an elevation of 300.00 ft. Identify the station and elevation of the low point.
A crest vertical curve connects a +2% grade and a -2.05% grade. The PVI is at station 40+00.00 at an elevation of 100.00 ft. The design speed is 70 mi/h. If the length is 1084 ft, determine: (b) The station of the BVC (3 pts (c) The elevation of the BVC (3 pts (d) The station of the EVC (3 pts) (e) The elevation of the EVC (3 pts) (1) The station of the highest point on the curve (4...
