Can a dislocation with the burgers vector given dissociate into partial dislocations per reaction i? how...
Can a dislocation with the burgers vector given dissociate into
partial dislocations per reaction i? how about reaction ii? Explain

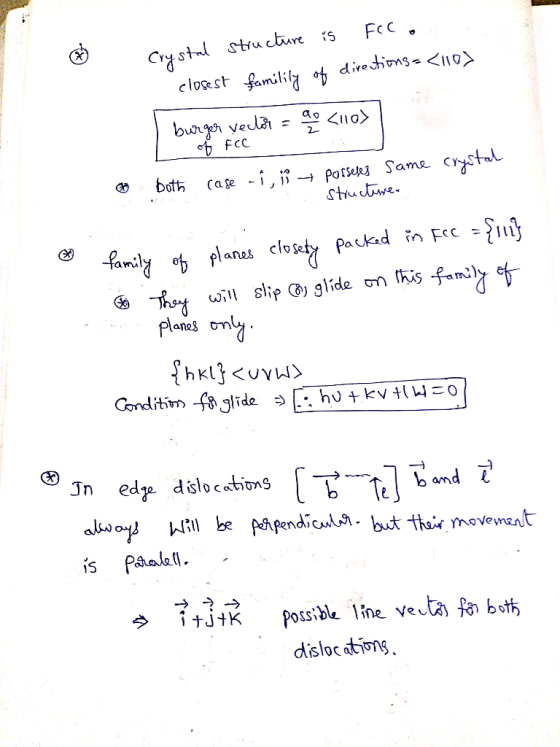

how you know. What crystal structure is the dislocation found in in
case i? How about case ii? What family of planes would the
dislocation be slipping on in case i? In case ii? If both i and ii
are edge dislocations suggest a plausible line vector for each
dislocation.

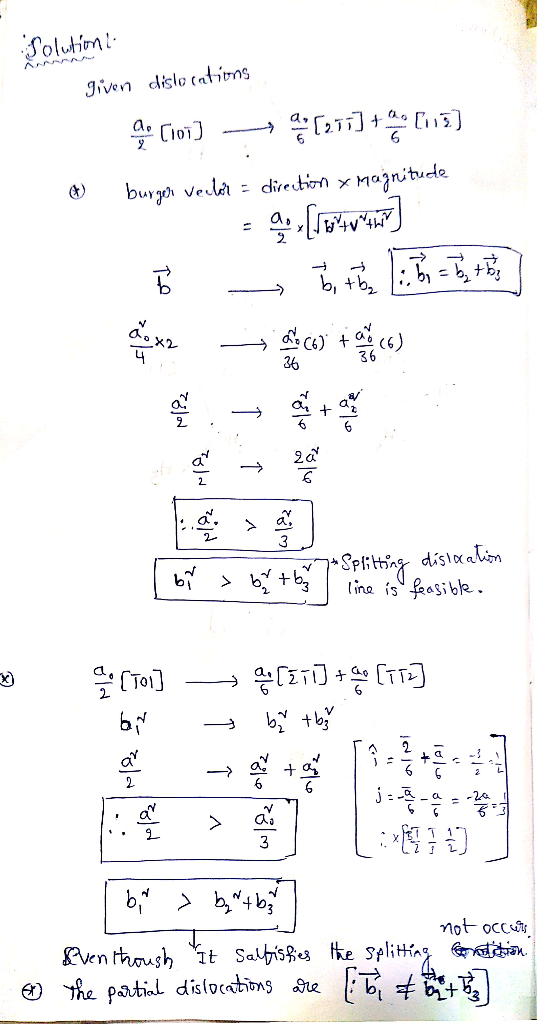

i) (ao/2)[10-1] (ao/6)[2-1-1] + (ao/6)[11-2]
ii) (ao/2)[-101] (ao/6)[-2-11] + (ao/6)[-1-12]
Homework Answers
