I need information for the synchronous motor 1. How the synchronous motor can behave as a...
I need information for the synchronous motor

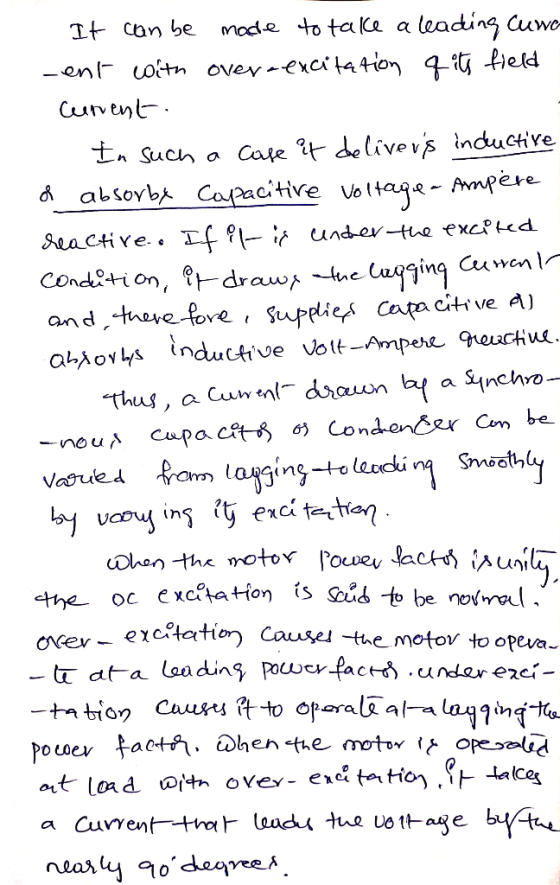

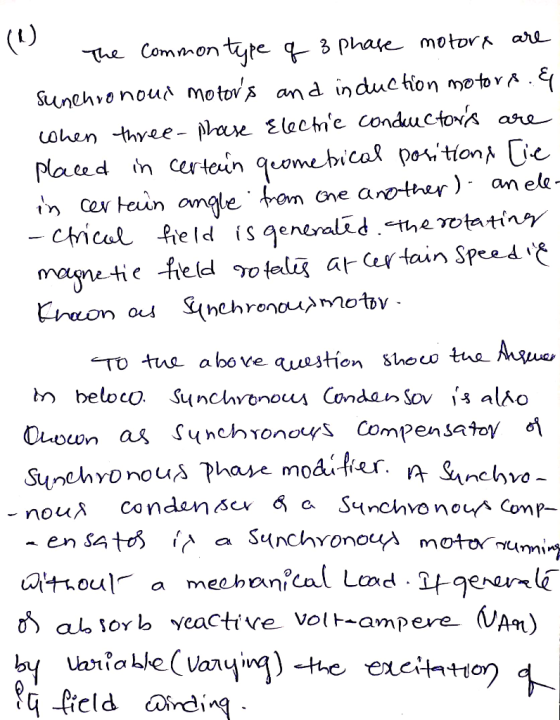

1. How the synchronous motor can behave as a resistance,
inductance or variable capacitance.

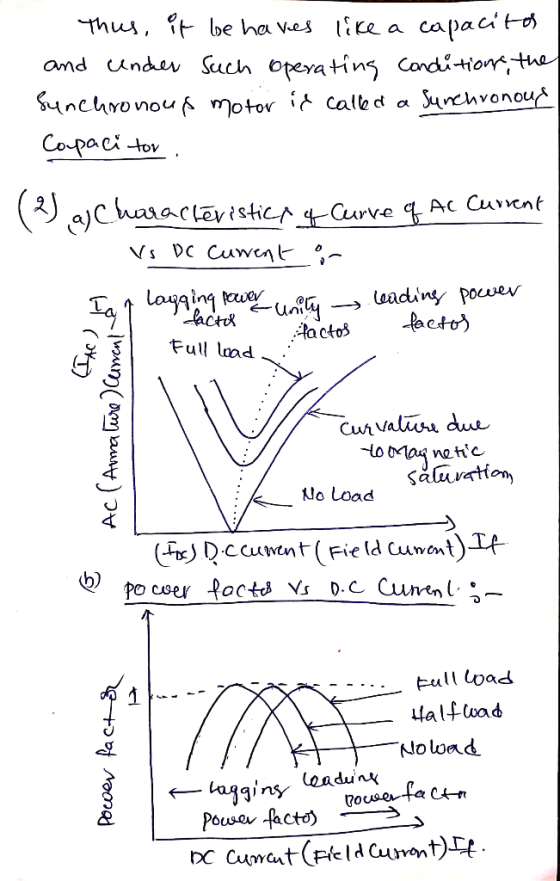

2. Characteristic curves of AC vs. current. DC current and power
factor vs. DC current
Homework Answers
Add Answer to:
I need information for the synchronous motor
1. How the synchronous motor can behave as a...
The starting torque of a three-phase synchronous motor is increased when SE O ou h atic...
The starting torque of a three-phase synchronous motor is increased when SE O ou h atic tio co e rotor electromagnet is turned on. a. b. the rotor electromagnet is turned off. c, the power factor of the ac power network is unity. d. dc power is applied to one of the stator windings. 2. When a synchronous motor without load is connected to a three-phase ac power network, the resulting power factor depends on a. the speed of the...
A three phase 10-pole synchronous motor has per phase synchronous resistance of 4.3 ohm. It is...
A three phase 10-pole synchronous motor has per phase synchronous resistance of 4.3 ohm. It is connected to a 4160V (line to line) 60Hz line and generates an excitation voltage Eo of 1790V (line to neutral) when the dc exciting current is 30A. The Torque angle between E and Eo is 30 degrees. Calculate a) The mechanical angle between the center of rotor and stator poles b) The voltage across the synchronous reactance c) The power delivered to the motor...
Problem 3:A 480 V, 50 kW, 60 Hz, 3-φ synchronous motor has a synchronous reactance of Xs = 4.56 Ω and an armature-to-field mutual inductance, Laf = 150 mH. The motor is operating at rated speed an...
Problem 3:A 480 V, 50 kW, 60 Hz, 3-φ synchronous motor has a synchronous reactance of Xs = 4.56 Ω and an armature-to-field mutual inductance, Laf = 150 mH. The motor is operating at rated speed and terminal voltage and at an output power of 35kW. Neglecting losses in the motor, calculate the magnitude and phase angle of the line-to-neutral generated voltage Eaf and field current I if the motor is operating at (a) 0.9 power factor lagging (b) unity...
2) A 480 V, 60 Hz, 400 hp 0.8 PF-lagging eight-pole A-connected synchronous motor has a...
2) A 480 V, 60 Hz, 400 hp 0.8 PF-lagging eight-pole A-connected synchronous motor has a synchronous reactance of 0.6 and negligible armature resistance. Ignore the mechanical and core losses. The magnitude of the internal machine voltage is 480 V when the field current is 4 A. Assume magnetic linearity. Initially, the motor operates at the rated conditions. a) Find the speed of this motor. b) Find the armature and field currents. c) What is the developed torque? What is...
Problem 3:A 480 V, 50 kW, 60 Hz, 3-φ synchronous motor has a synchronous reactance of...
Problem 3:A 480 V, 50 kW, 60 Hz, 3-φ synchronous motor has a synchronous reactance of Xs = 4.56 Ω and an armature-to-field mutual inductance, Laf = 150 mH. The motor is operating at rated speed and terminal voltage and at an output power of 35kW. Neglecting losses in the motor, calculate the magnitude and phase angle of the line-to-neutral generated voltage Eaf and field current I if the motor is operating at (a) 0.9 power factor lagging (b) unity...
a. The figure below is a set of Synchronous Generator and Synchronous Motor. The ratings of...
a. The figure below is a set of Synchronous Generator and Synchronous Motor. The ratings of the machines are as follows: Synchronous Generator:. 3ph, 1.0MVA, 2.3kV, 50Hz, 0.85 lagging power factor, X.=0.9 pu Synchronous Motor: 3ph, 0.5 MVA, 2.36V, 50Hz, 0.85 leading power factor, X.=0.8 pu Synchronous generator Synchronous motor The generator is equipped with a voltage regulator which maintains the terminal voltage at the rated value. The motor delivers 500 hp and it field current is adjusted to make...
2.3 (20 points) A separately-excited de motor is mechanically coupled to a three-phase, 4-pole, 30-kVA, 460-V, round-rotor synchronous generator. The de motor is connected to a constant 230-V de...
2.3 (20 points) A separately-excited de motor is mechanically coupled to a three-phase, 4-pole, 30-kVA, 460-V, round-rotor synchronous generator. The de motor is connected to a constant 230-V de supply The ac generator is connected to a 460 V, fixed-voltage, fixed-frequency, three-phase supply. The synchronous reactance of the synchronous generator is 513 Ω/phase. The armature resistance of the de motor is 30 m2. The 4-pole de machine is rated 30 kW at 230 V. All unspecified losses are to be...
Problem 1. (25 points) A 200-hp 440-V 0.8-PF-leading љс0nnected synchronous motor has an armature resistance of 0.6 Ω and a synchronous reactance of 8.0 Ω. Its efficiency at full load is 90 percent....
Problem 1. (25 points) A 200-hp 440-V 0.8-PF-leading љс0nnected synchronous motor has an armature resistance of 0.6 Ω and a synchronous reactance of 8.0 Ω. Its efficiency at full load is 90 percent. 1. What is the input power to the motor at rated conditions? 2. What is the line current of the motor at rated conditions? What is the phase current of the motor at rated conditions? 3. What is the reactive power consumed by or supplied by the...
E1Q2 1 0 7 1. A 20 MVA, 6.9 KV 3-phase 4-pole star connected synchronous motor...
E1Q2
1 0 7 1. A 20 MVA, 6.9 KV 3-phase 4-pole star connected synchronous motor is operating with field current of 20 Amps, at full load and 0.9 power factor leading. The motor has a synchronous reactance of 1.5 ohm and negligible armature resistance. 30 points a. Find the motor full load torque and power angle. b. If the field current is increased by 15% and the load torque is increased by 15% find the motor current and power...
3.1 When two four pole, 50 Hz synchronous generators are paralleled their phase displacement is 2...
3.1 When two four pole, 50 Hz synchronous generators are paralleled their phase displacement is 2 mechanical. The synchronous reactance of each machine is 10 n/phase and the common busbar voltage is 66kV. Calculs the s cho nisimlengud AN 2 A synchronous generator has a synchronous impedance of 2p and a resist ance of 0.01 p.u. It is connected to an infinite busbar of voltage 1 pu. through a transformer of reactance 01 pou. If the generated (no-load) emfis 1.1...
The starting torque of a three-phase synchronous motor is increased when SE O ou h atic tio co e rotor electromagnet is turned on. a. b. the rotor electromagnet is turned off. c, the power factor of the ac power network is unity. d. dc power is applied to one of the stator windings. 2. When a synchronous motor without load is connected to a three-phase ac power network, the resulting power factor depends on a. the speed of the...
Problem 3:A 480 V, 50 kW, 60 Hz, 3-φ synchronous motor has a synchronous reactance of Xs = 4.56 Ω and an armature-to-field mutual inductance, Laf = 150 mH. The motor is operating at rated speed and terminal voltage and at an output power of 35kW. Neglecting losses in the motor, calculate the magnitude and phase angle of the line-to-neutral generated voltage Eaf and field current I if the motor is operating at (a) 0.9 power factor lagging (b) unity...
2) A 480 V, 60 Hz, 400 hp 0.8 PF-lagging eight-pole A-connected synchronous motor has a synchronous reactance of 0.6 and negligible armature resistance. Ignore the mechanical and core losses. The magnitude of the internal machine voltage is 480 V when the field current is 4 A. Assume magnetic linearity. Initially, the motor operates at the rated conditions. a) Find the speed of this motor. b) Find the armature and field currents. c) What is the developed torque? What is...
Problem 3:A 480 V, 50 kW, 60 Hz, 3-φ synchronous motor has a synchronous reactance of Xs = 4.56 Ω and an armature-to-field mutual inductance, Laf = 150 mH. The motor is operating at rated speed and terminal voltage and at an output power of 35kW. Neglecting losses in the motor, calculate the magnitude and phase angle of the line-to-neutral generated voltage Eaf and field current I if the motor is operating at (a) 0.9 power factor lagging (b) unity...
a. The figure below is a set of Synchronous Generator and Synchronous Motor. The ratings of the machines are as follows: Synchronous Generator:. 3ph, 1.0MVA, 2.3kV, 50Hz, 0.85 lagging power factor, X.=0.9 pu Synchronous Motor: 3ph, 0.5 MVA, 2.36V, 50Hz, 0.85 leading power factor, X.=0.8 pu Synchronous generator Synchronous motor The generator is equipped with a voltage regulator which maintains the terminal voltage at the rated value. The motor delivers 500 hp and it field current is adjusted to make...
2.3 (20 points) A separately-excited de motor is mechanically coupled to a three-phase, 4-pole, 30-kVA, 460-V, round-rotor synchronous generator. The de motor is connected to a constant 230-V de supply The ac generator is connected to a 460 V, fixed-voltage, fixed-frequency, three-phase supply. The synchronous reactance of the synchronous generator is 513 Ω/phase. The armature resistance of the de motor is 30 m2. The 4-pole de machine is rated 30 kW at 230 V. All unspecified losses are to be...
Problem 1. (25 points) A 200-hp 440-V 0.8-PF-leading љс0nnected synchronous motor has an armature resistance of 0.6 Ω and a synchronous reactance of 8.0 Ω. Its efficiency at full load is 90 percent. 1. What is the input power to the motor at rated conditions? 2. What is the line current of the motor at rated conditions? What is the phase current of the motor at rated conditions? 3. What is the reactive power consumed by or supplied by the...
E1Q2
1 0 7 1. A 20 MVA, 6.9 KV 3-phase 4-pole star connected synchronous motor is operating with field current of 20 Amps, at full load and 0.9 power factor leading. The motor has a synchronous reactance of 1.5 ohm and negligible armature resistance. 30 points a. Find the motor full load torque and power angle. b. If the field current is increased by 15% and the load torque is increased by 15% find the motor current and power...
3.1 When two four pole, 50 Hz synchronous generators are paralleled their phase displacement is 2 mechanical. The synchronous reactance of each machine is 10 n/phase and the common busbar voltage is 66kV. Calculs the s cho nisimlengud AN 2 A synchronous generator has a synchronous impedance of 2p and a resist ance of 0.01 p.u. It is connected to an infinite busbar of voltage 1 pu. through a transformer of reactance 01 pou. If the generated (no-load) emfis 1.1...
